WF-YL11-056 PTFE Polytetrafluoroethylene Frame Glass Tube Impeller Flow Indicator – Product Introduction

1. Product Overview

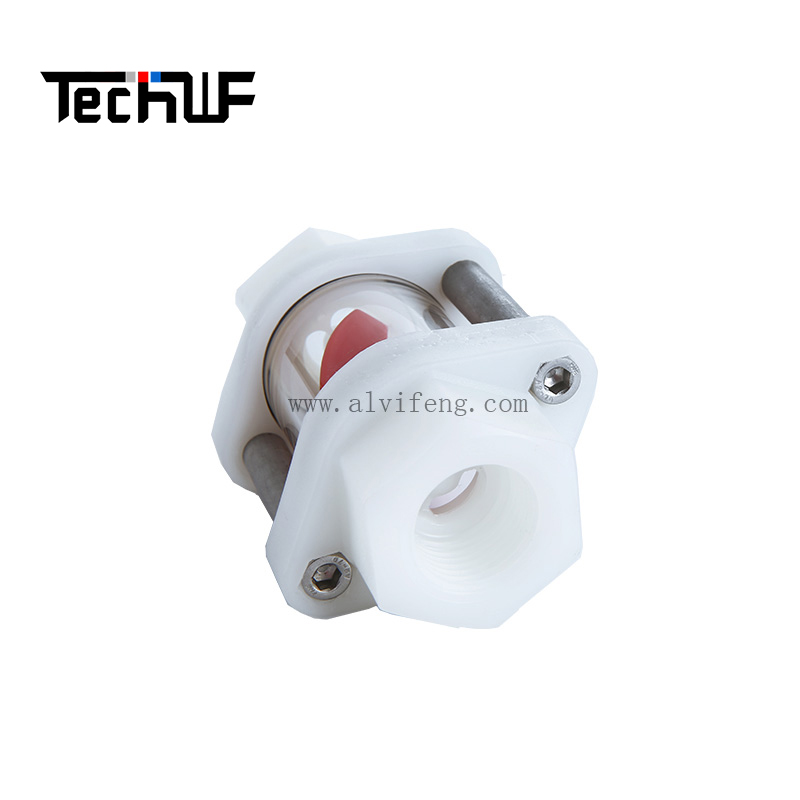

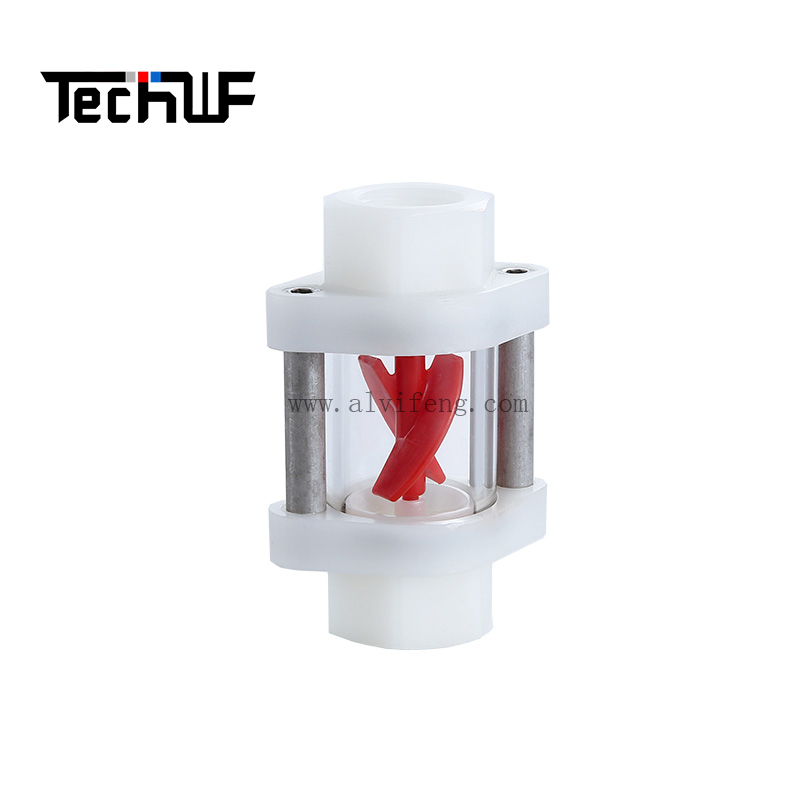

WF-YL11-056 PTFE frame sight flow indicator is a corrosion-resistant inline visual flow monitor independently developed by TechWF. The body frame adopts high-purity PTFE (Teflon), paired with a transparent borosilicate glass sight tube, built-in high-visibility red anti-corrosion impeller, fixed and reinforced by stainless steel pull rods. It features excellent chemical inertness, 360° panoramic viewing, and internal impeller rotation feedback to judge medium flow status in real time.

This sight indicator is designed for harsh corrosive working conditions. When corrosive medium flows through the pipeline, the fluid drives the red impeller to rotate continuously, which can directly confirm normal circulation; once flow interruption, backflow or pipeline blockage occurs, the impeller stops rotating to remind operators to troubleshoot. It is widely used in strong corrosive chemical dosing systems, pickling & plating lines, chemical waste liquid pipelines, precision agricultural pesticide and fertilizer delivery, marine chemical auxiliary pipelines and special industrial anti-corrosion circulation systems.

Every unit is tested for sealing, pressure resistance and acid-base corrosion before delivery. It can steadily adapt to most strong acid, strong alkali and strong oxidizing media, solving the failure problem of ordinary metal or plastic sight glasses under corrosive fluid.

2. Technical Specifications

3. Core Advantages

1. Ultra-Strong Anti-Corrosion PTFE Main Frame
PTFE has supreme chemical stability, resistant to strong acid, strong alkali, aqua regia and almost all organic solvents. It is the preferred material for severe corrosion working conditions, far superior to PVC, PP and stainless steel sight indicators.

2. High Transmittance Borosilicate Glass Barrel, 360° Observation Without Blind Spots
High borosilicate glass has high light transmission, high temperature resistance and thermal shock resistance. Operators can observe the rotation of the internal impeller from all directions to judge the flow state clearly.

3. Pull Rod Reinforced Structure, Safe and Reliable
Adopt double stainless steel pull rod locking structure, evenly stressed, effectively prevent leakage and loosening under pressure, greatly improve the safety of glass sight tube.

4. High Sensitivity Impeller, Real-Time Flow Feedback
Lightweight anti-corrosion impeller can respond to low flow rate, even tiny medium flow can drive rotation. Mechanical structure without magnetic parts, stable and reliable, low failure rate.

5. Full Bore Design, Minimal Pressure Drop
Smooth straight-through flow channel, no blocking structure inside, will not cause excessive pressure loss, protect the stability of the dosing and circulation system.

6. Easy Disassembly for Maintenance
Pull rod assembly design, convenient to disassemble the glass tube and impeller for cleaning, suitable for media easy to scale and crystallize.

4. Application Scenarios

• Chemical Industry: Strong acid / strong alkali dosing pipeline, electroplating pickling line, waste liquid treatment circulation pipeline, laboratory corrosive reagent delivery, pesticide and fine chemical production.

• Industrial Field: Surface treatment workshop, sewage treatment, corrosive liquid circulation, battery industry acid circulation system.

• Precision Agriculture: Concentrated pesticide, strong acid fertilizer transmission pipeline, special nutrient solution irrigation branch pipeline, anti-corrosion flow monitoring for hydroponic systems.

• Marine & Offshore: Marine chemical auxiliary pipeline, seawater desalination chemical dosing loop, coastal high-salt corrosive medium monitoring.

• Other Special Scenarios: Corrosive medium circulating cooling, new energy material production, pharmaceutical corrosive solvent pipeline.

5. Custom Service

• Thread standard: Custom BSPP, BSPT, NPT inner thread.

• Size: DN8, DN10, DN15, DN20, DN25, DN32.

• Sealing parts: PTFE gasket standard, other anti-corrosion sealing optional.

• Logo: Laser engraving customer logo on PTFE frame.

• Test certificate: Provide pressure test report, material certificate for project bidding.

6. Quality Control

All WF-YL11-056 sight indicators pass air tightness test, hydraulic pressure test and medium compatibility inspection one by one before leaving factory. Material certificates and inspection documents can be provided to support engineering audit and tender.
