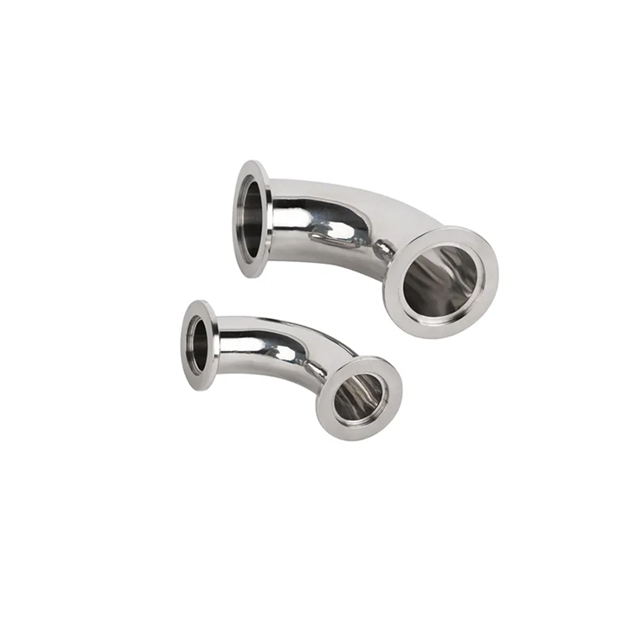

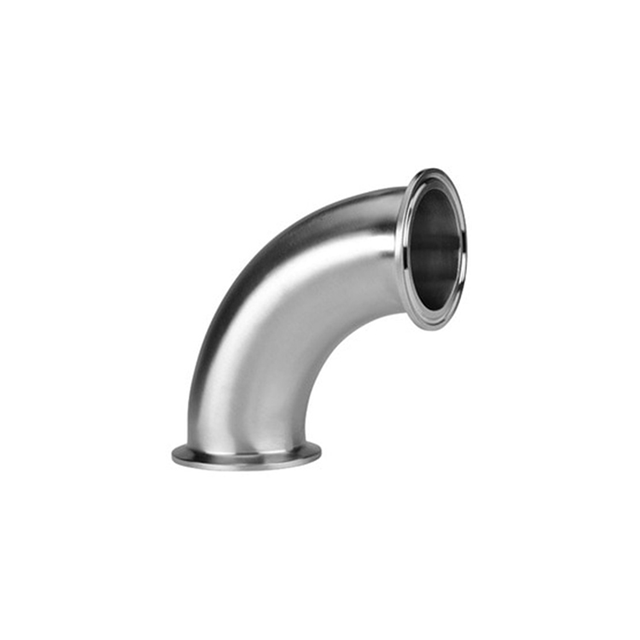

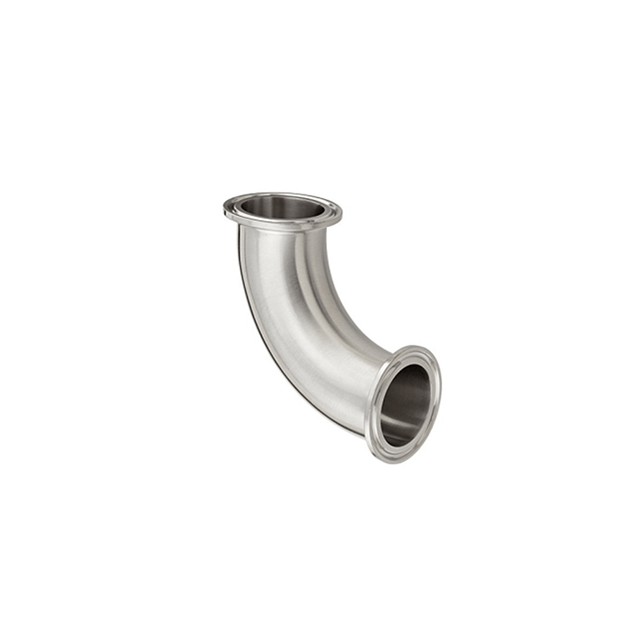

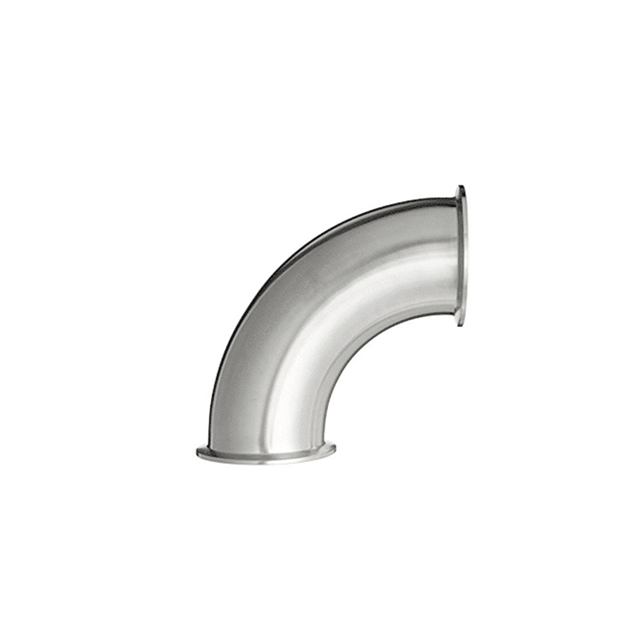

sanitary 90 degree elbow

Change the direction of the fluid by 90 degrees.
Connected through clamps or quick connectors for easy disassembly and cleaning.
Inquiry Product PDF

Product details

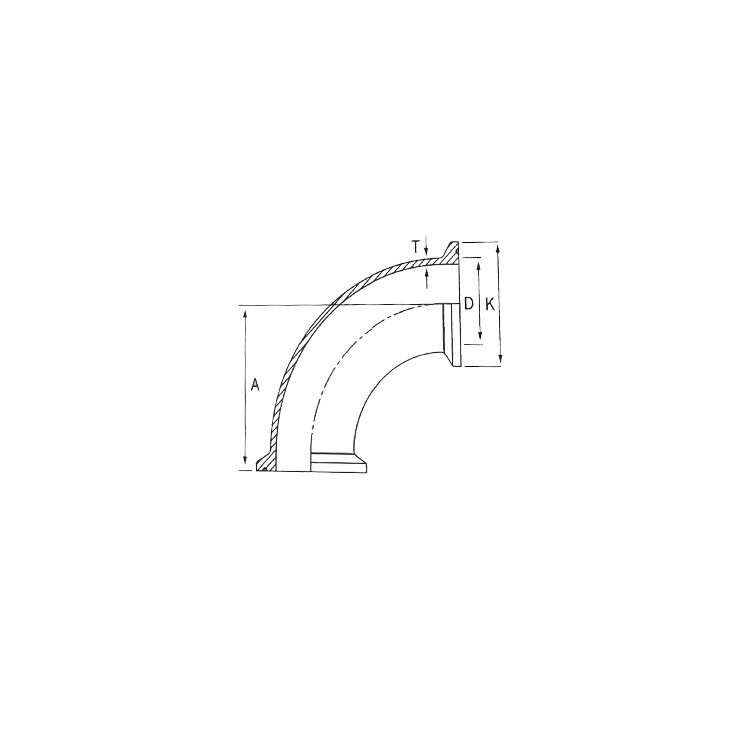

Size K D A T
∅19
 50.5 19 50 1.5
∅25
 50.5 25 54 1.5
∅32
 50.5
 32 59.5 1.5
∅38
 50.5
 38 69.5 1.5
∅45
 64 45 79 1.5
∅51
 64 51 82 1.5
∅57
 77.5 57 90 2
∅63
 77.5 63 100 2
∅76
 91 76 111.5 2
∅89
 106 89 124.5 2
∅102
 119 102 149.5 2
∅108
 119 108 152.5 2
