HomeProductsValve & Filtersanitary elbow

sanitary elbow

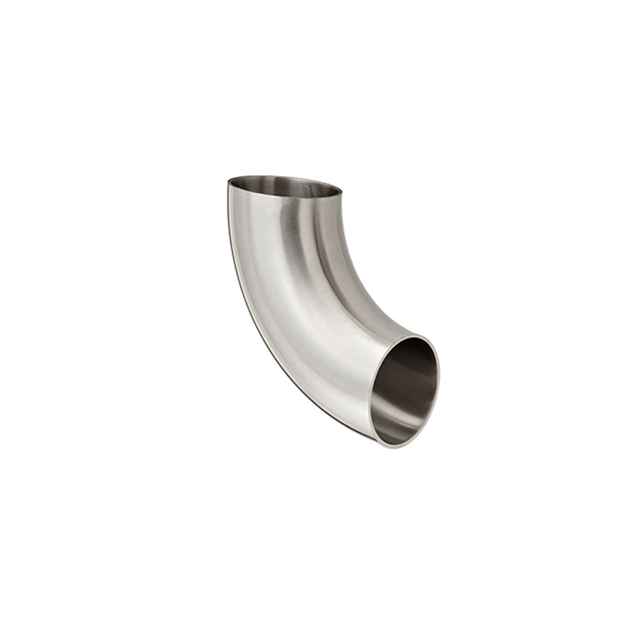

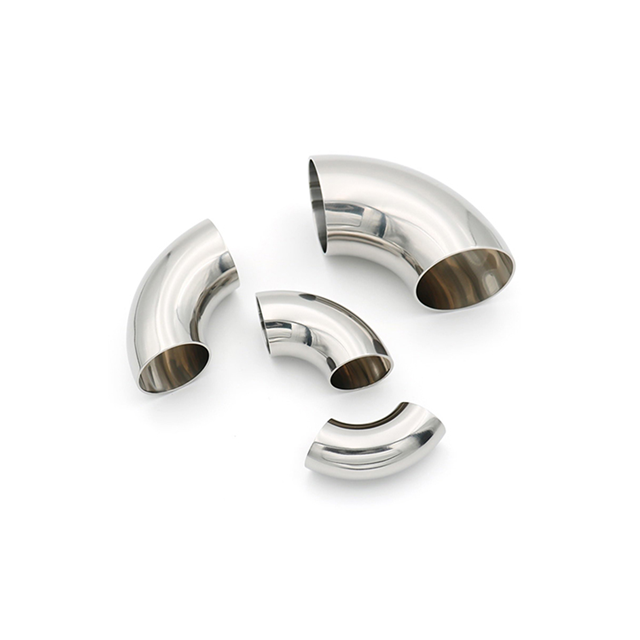

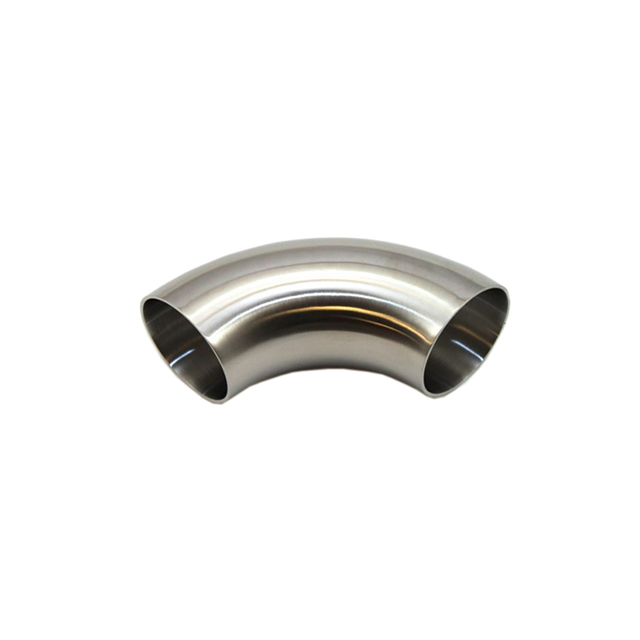

Sanitary grade elbow is a type of pipeline connector used in industries such as food, pharmaceuticals, and biotechnology. It has high cleanliness and corrosion resistance, and is commonly used in fluid transportation systems that require high hygiene standards.
Inquiry Product PDF

Product details

Size

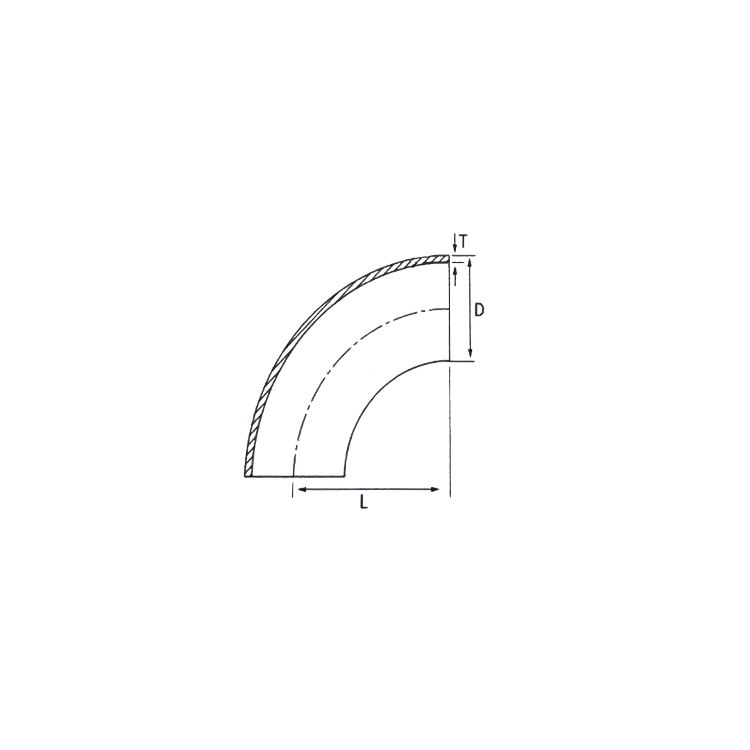

 D L T
∅12.7
 12.7 23.65 1.5
∅19
 19 28.5 1.5
∅20
 20 30 1.5
∅25
 25 32.5 1.5
∅32
 32 38 1.5
∅34
 34 38 1.5
∅38
 38 48 1.5
∅40
 40 52 1.5
∅42
 42 54 1.5
∅45
 45 57.5 1.5
∅48
 48 56 1.5
∅51
 51 60.5 1.5
∅57
 57 68.5 2
∅60
 60 74 2
