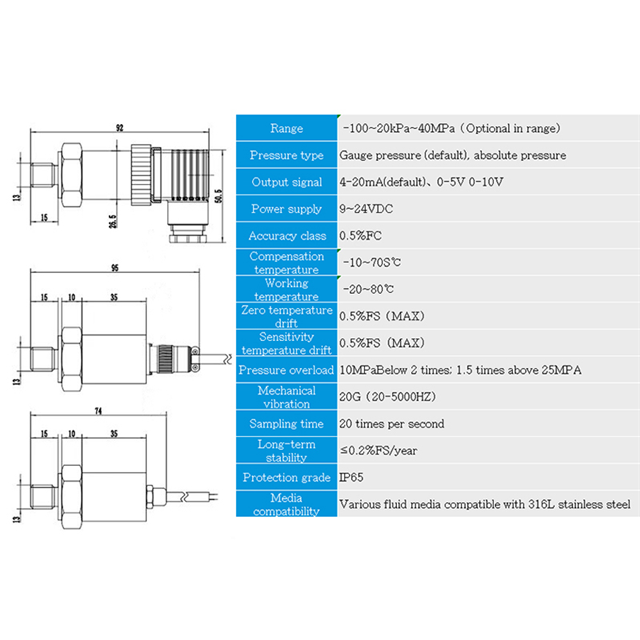

| Range | -100~20kPa~40MPa（Optional in range） | ||||||
| Pressure type | Gauge pressure (default), absolute pressure | ||||||
| Output signal | 4-20mA(default)、0-5V 0-10V | ||||||
| Power supply | 9~24VDC | ||||||
| Accuracy class | 0.5%FC | ||||||
| Compensation temperature | -10~70S℃ | ||||||
| Working temperature | -20~80℃ | ||||||
| Zero temperature drift | 0.5%FS（MAX） | ||||||
| Sensitivity temperature drift | 0.5%FS（MAX） | ||||||
| Pressure overload | 10MPaBelow 2 times; 1.5 times above 25MPA | ||||||
| Mechanical vibration | 20G（20-5000HZ） | ||||||
| Sampling time | 20 times per second | ||||||
| Long-term stability | ≤0.2%FS/year | ||||||
| Protection grade | IP65 | ||||||
| Media compatibility | Various fluid media compatible with 316L stainless steel | ||||||
| Product column number | |||||||||||
| PCM300 | |||||||||||
| Range | |||||||||||
| The range shall be filled in directly according to the customer's requirements, such as (0-1MPa) or refer to the Conventional Range Table | |||||||||||
| PoPer supply mode | |||||||||||
| V1:12~24VDC、V2：9~24VDC V3:5VDC、V4:3~3.7VDC | |||||||||||
| Output signal | |||||||||||
| B1:4~20mA、B2：0~10V、B3:1~5、B4:0~5V B5:Other custom outputs | |||||||||||
| Interface Thread | |||||||||||
| C1：M20×1.5、C2：G1/2、C3：M14×1.5、C4:G1/4 | |||||||||||
| Additional functions | |||||||||||
| J1: Waterproof outgoing line, J2: aviation plug, J3: Hesman | |||||||||||
| Eg： PCM300 V1 B1 C1 J1 | Give an example：PCM300（0~1.0MPa）V1-B1-C1-J1 | ||||||||||
| Range table | |||||||||||
| Code name | Range | Code name | Range | Code name | Range | Code name | Range | ||||
| P1 | 0~1kPa | P2 | 0~2kPa | P3 | 0~3kPa | P4 | 0~4kPa | ||||
| P5 | 0~6kPa | P6 | 0~10kPa | P7 | 0~16kPa | P8 | 0~20kPa | ||||
| P9 | 0~25kPa | P10 | 0~40kPa | P11 | 0~60kPa | P12 | 0~100kPa | ||||
| P13 | 0~0.16MPa | P14 | 0~0.25MPa | P15 | 0~0.4MPa | P16 | 0~0.6MPa | ||||
| P17 | 0~1.0MPa | P18 | 0~1.6MPa | P19 | 0~2.5MPa | P20 | 0~4MPa | ||||
| P21 | 0~6MPa | P22 | 0~10MPa | P23 | 0~16Mpa | P24 | 0~25MPa | ||||
| P25 | 0~40MPa | P26 | 0~60MPa | P27 | 0~100MPa | P28 | -100kpa~0 | ||||
| P29 | -100~100kPa | P30 | -100~30kPa | Other order ranges can be directly commented | |||||||
