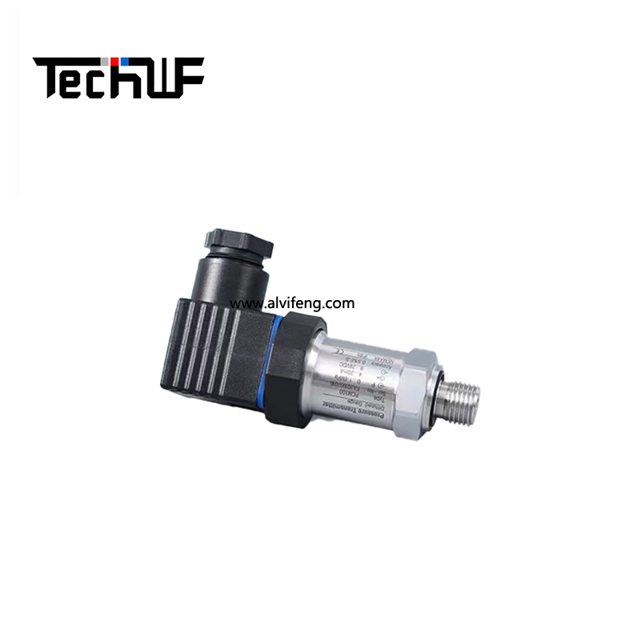

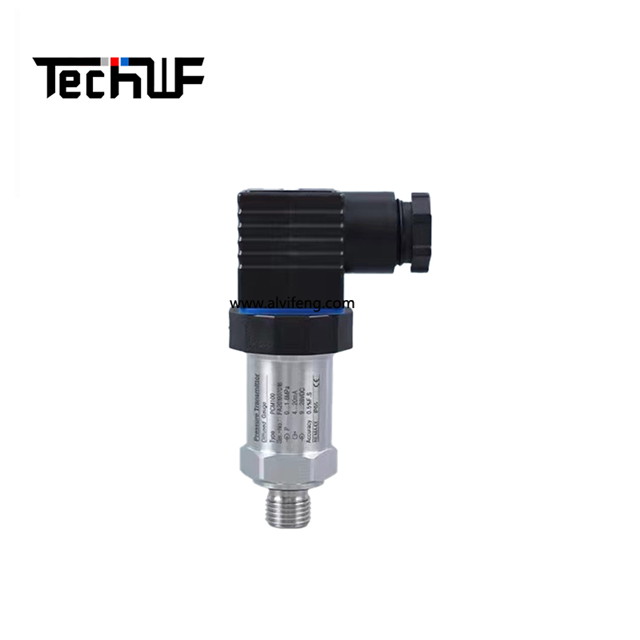

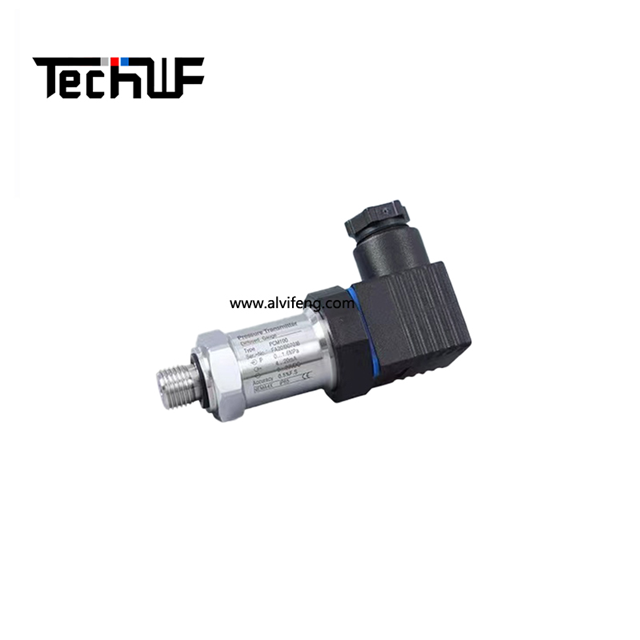

Range | -100~4kPa~100MPa(Optional in range) | ||||||
Pressure type | Gauge pressure (default), absolute pressure, sealing pressure | ||||||
Output signal | 4-20mA(default)、0-5V 0-10V | ||||||
Power supply | 12~24VDC(default)、5V、3.6V, etc | ||||||
Accuracy class | 0.5%FC(default)、0.2%FS、0.1%FS | ||||||
Compensation temperature | -10~70S℃ | ||||||
Working temperature | -20~80℃ | ||||||
Zero temperature drift | 0.5%FS(MAX) | ||||||
Sensitivity temperature drift | 0.5%FS(MAX) | ||||||
Pressure overload | 10MPaBeloP 2 times; 1.5 times above 25MPA | ||||||
Mechanical vibration | 20G(20-5000HZ) | ||||||
Sampling time | 2400 times per second | ||||||
Long-term stability | ≤0.2%FS/year | ||||||
Insulation | 100MΩ/250VDC | ||||||
Protection grade | IP65 | ||||||
Response time | 2ms | ||||||
Media compatibility | Various fluid media compatible Pith 316L stainless steel | ||||||
Mounting thread |
M24×1.5(Customizable according to user
requirements ) |
||||||
Product column number | |||||||||||
PCM300 | |||||||||||
Range | |||||||||||
The range shall be filled in directly according to the customer's requirements, such as (0-1MPa) or refer to the Conventional Range Table | |||||||||||
PoPer supply mode | |||||||||||
V1:12~24VDC、V2:9~24VDC V3:5VDC、V4:3~3.7VDC | |||||||||||
Output signal | |||||||||||
B1:4~20mA、B2:0~10V、B3:1~5、B4:0~5V B5:Other custom outputs | |||||||||||
Interface Thread | |||||||||||
C1:M20×1.5、 C2: G1/2 、 C3 : M14×1.5 、 C4 : G1/4 | |||||||||||
Additional functions | |||||||||||

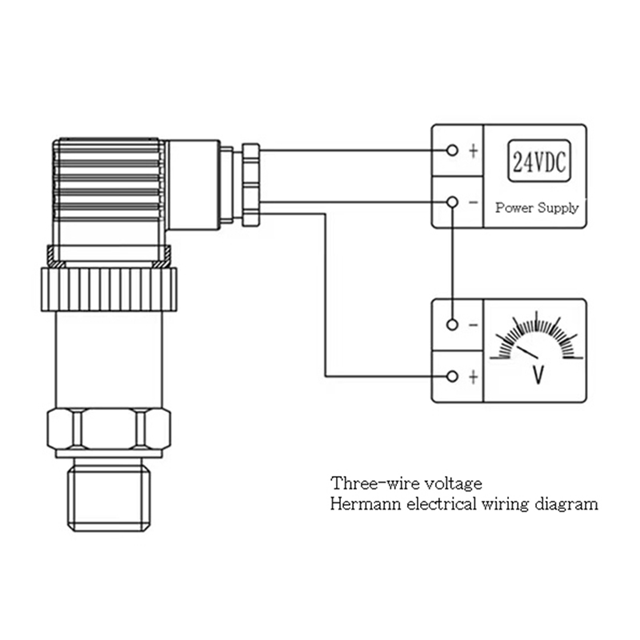

J1:Hesman plug、 J2:Direct lead、J3:Aviation joint、J7M12Industrial plug-in | |||||||||||
Eg: PCM300 V1 B1 C1 J1 | Give an example:PCM300(0~1.0MPa)V1-B1-C1-J1 | ||||||||||
Range table | |||||||||||
Code name | Range | Code name | Range | Code name | Range | Code name | Range | ||||
P1 | 0~1kPa | P2 | 0~2kPa | P3 | 0~3kPa | P4 | 0~4kPa | ||||
P5 | 0~6kPa | P6 | 0~10kPa | P7 | 0~16kPa | P8 | 0~20kPa | ||||
P9 | 0~25kPa | P10 | 0~40kPa | P11 | 0~60kPa | P12 | 0~100kPa | ||||
P13 | 0~0.16MPa | P14 | 0~0.25MPa | P15 | 0~0.4MPa | P16 | 0~0.6MPa | ||||
P17 | 0~1.0MPa | P18 | 0~1.6MPa | P19 | 0~2.5MPa | P20 | 0~4MPa | ||||
P21 | 0~6MPa | P22 | 0~10MPa | P23 | 0~16Mpa | P24 | 0~25MPa | ||||
P25 | 0~40MPa | P26 | 0~60MPa | P27 | 0~100MPa | P28 | -100kpa~0 | ||||
P29 | -100~100kPa | P30 | -100~30kPa | Other order ranges can be directly commented |
