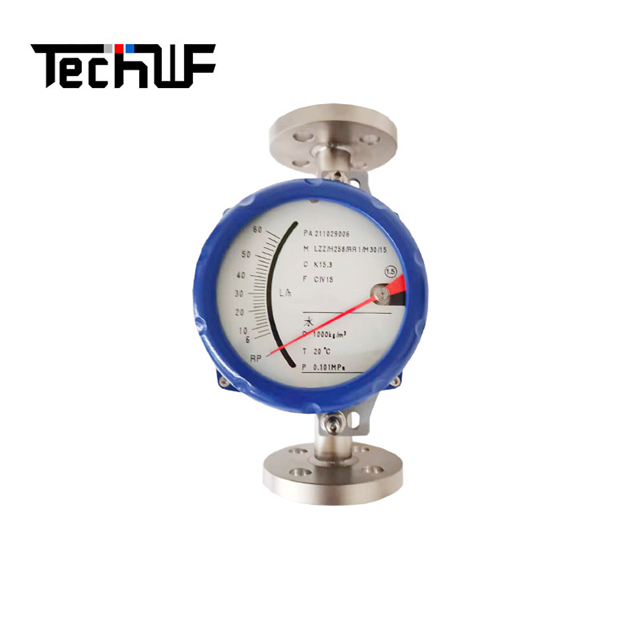

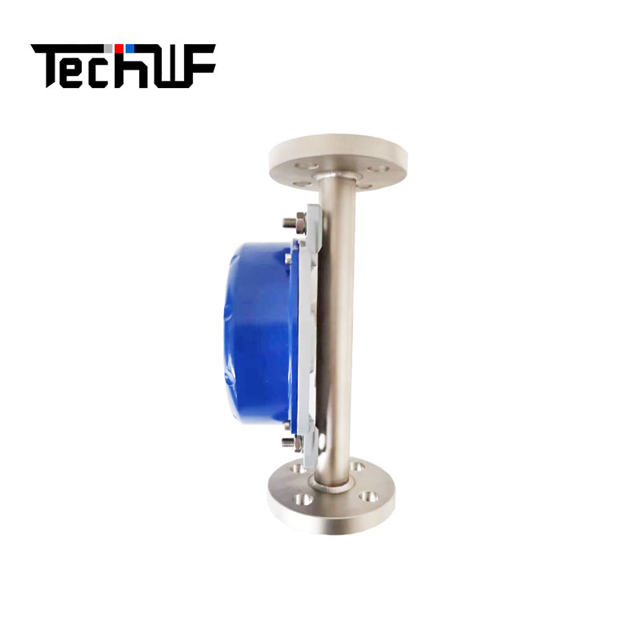

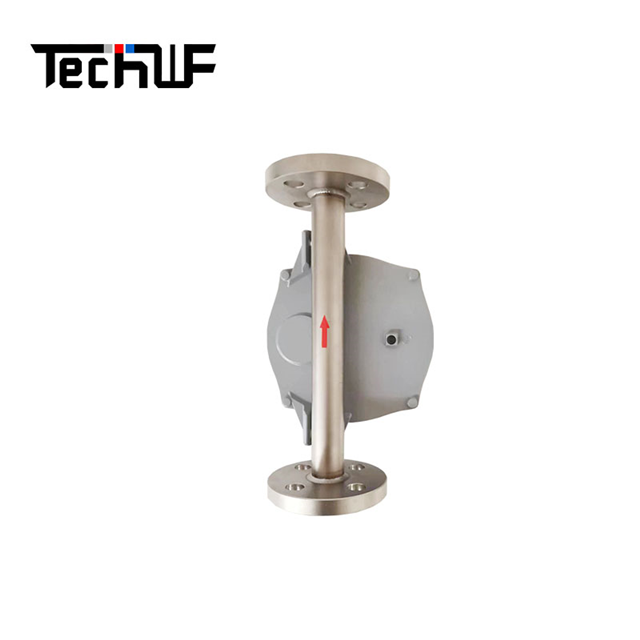

Metal tube float flowmeter is a kind of variable area flow meter commonly used in industrial automation process control, it has the characteristics of small volume, large measuring range, easy to use, can measure almost all liquid and gas flow, especially suitable for low flow rate and small flow, high temperature and high pressure medium measurement.
With its excellent performance and high reliability, metal tube float flowmeter has been widely used in petroleum, chemical industry, steel, metallurgy, pharmaceutical water, environmental protection engineering and other fields.

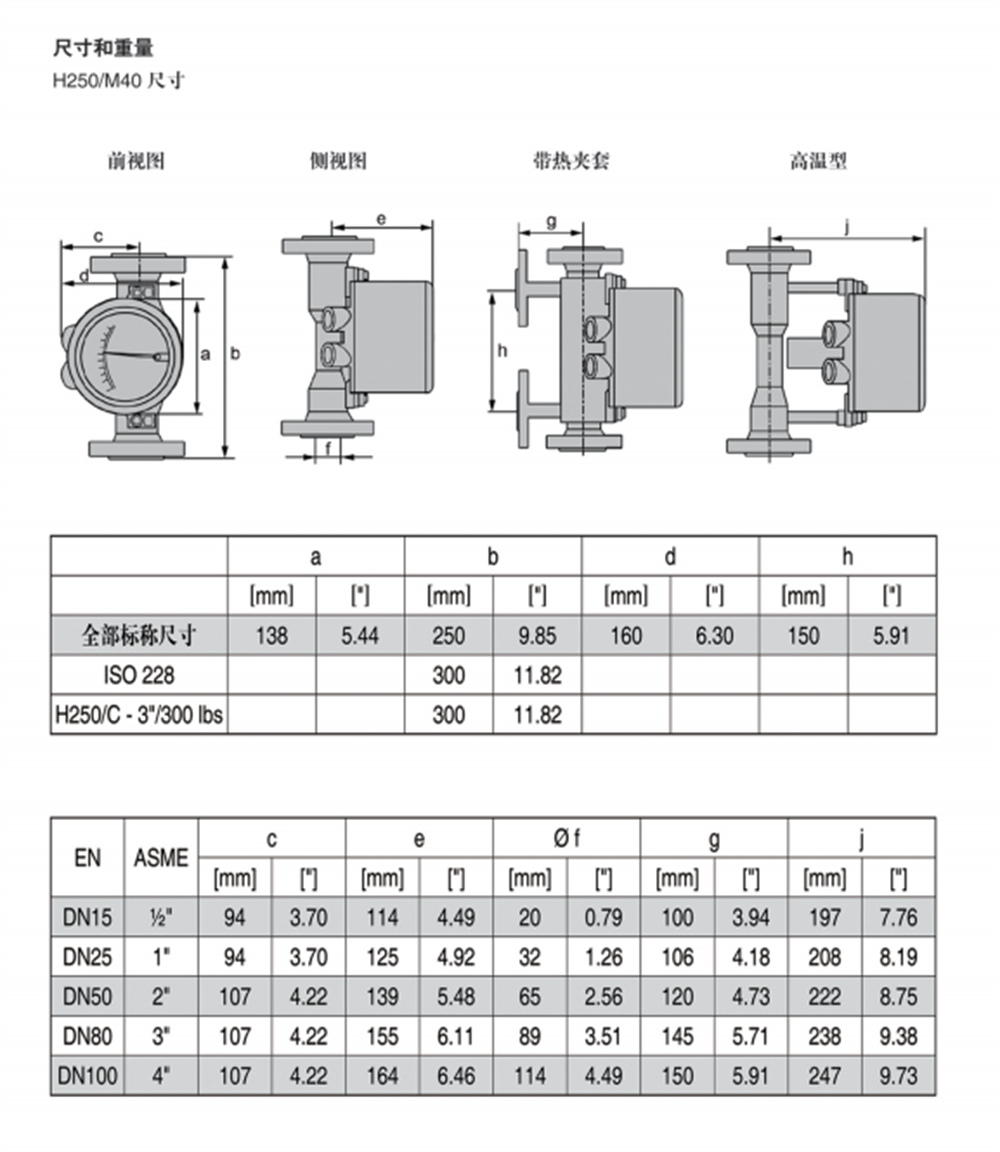

Technical Parameters
Caliber DN15, DN25, DN50, DN80, DN100, DN150 (standard type)
DN10, DN20, DN32, DN40, DN65, DN125.DN200(non-standard)
Measuring range Water :1~200000L/h Air :0.03~3000m3/h(20C 0.1013MPa) range ratio
Connection mode 10:1; 20:1 (special type) Flange connection GB/T9112 HG 20592 DIN2501 ANSI JIS SH3406 Clamp connection SMSTri-clamp Other connections Threaded connection clamp connection Hose connection
Accuracy level 1.5; Class 1.0 (Special type)
Flange connection :DN10~DN50≤ 4.0Mpa (maximum 32 Mpa) DN65~DN150≤16Mpa (maximum 16Mpa) DN200≤1.0Mpa (maximum 10 Mpa) Clamp connection ≤4.0Mpa
Other connections are made according to user requirements
Medium temperature type :-20C~100C; High temperature type :100C~250C ultra-high temperature type :250C~450C(need to add radiator) PTFE type :0C~80C
Ambient temperature Local type :-30C~120C remote type :-20C~80C PTFE type :0C~80C
Power supply 12-36VDC4-20mA two-wire 220VAC 50Hz AC power supply battery power supply can be used continuously for 24 months 5002 (24V power supply)
Output load 500 euros (24V power supply)
Cable interface M20X1.5; ,NPT; G'
Protection level IP65
Medium viscosity DN15:n<5mPas DN25:n<250mPa.s DN50~DN150:n<300mPa.s
