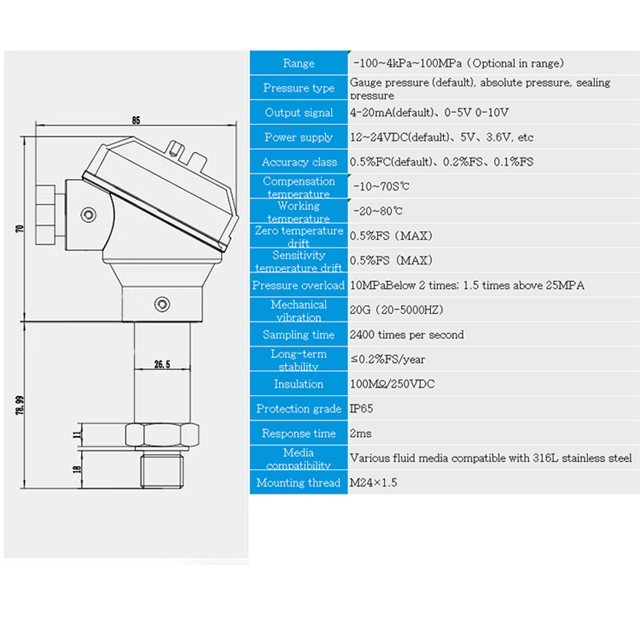

| Range | -100~4kPa~100MPa（Optional in range） | ||||||
| Pressure type | Gauge pressure (default), absolute pressure, sealing pressure | ||||||
| Output signal | 4-20mA(default)、0-5V 0-10V | ||||||
| Power supply | 12~24VDC(default)、5V、3.6V, etc | ||||||
| Accuracy class | 0.5%FC(default)、0.2%FS、0.1%FS | ||||||
| Compensation temperature | -10~70S℃ | ||||||
| Working temperature | -20~80℃ | ||||||
| Zero temperature drift | 0.5%FS（MAX） | ||||||
| Sensitivity temperature drift | 0.5%FS（MAX） | ||||||
| Pressure overload | 10MPaBelow 2 times; 1.5 times above 25MPA | ||||||
| Mechanical vibration | 20G（20-5000HZ） | ||||||
| Sampling time | 2400 times per second | ||||||
| Long-term stability | ≤0.2%FS/year | ||||||
| Insulation | 100MΩ/250VDC | ||||||
| Protection grade | IP65 | ||||||
| Response time | 2ms | ||||||
| Media compatibility | Various fluid media compatible with 316L stainless steel | ||||||
| Mounting thread | M24×1.5 | ||||||
