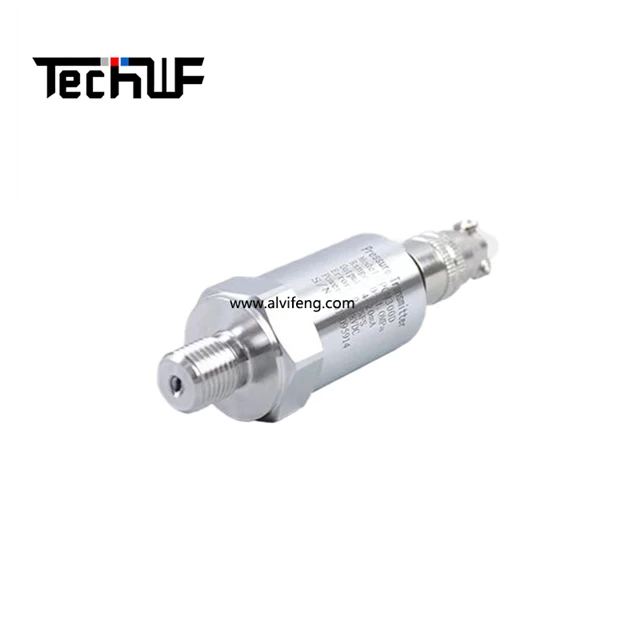

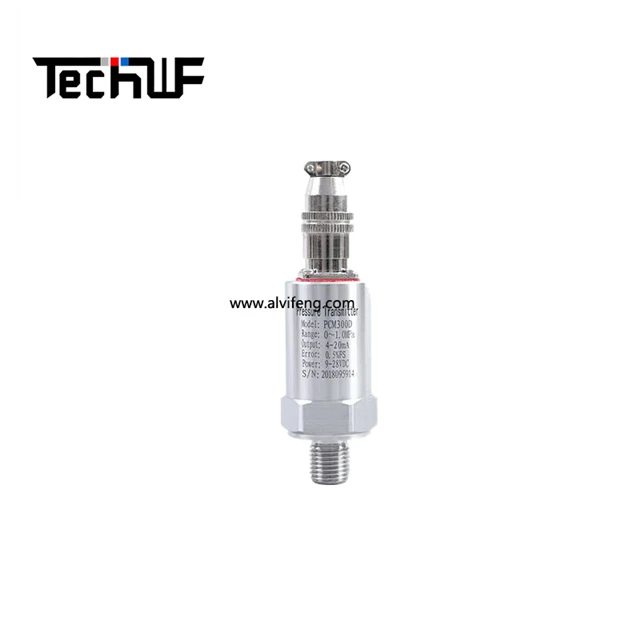

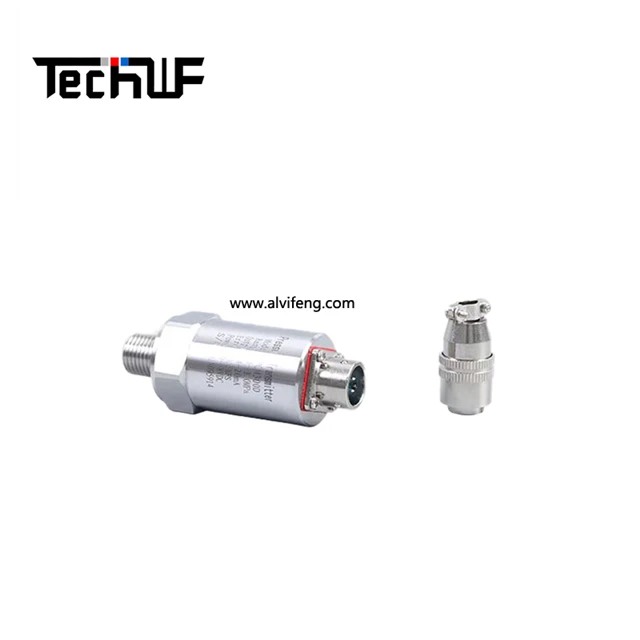

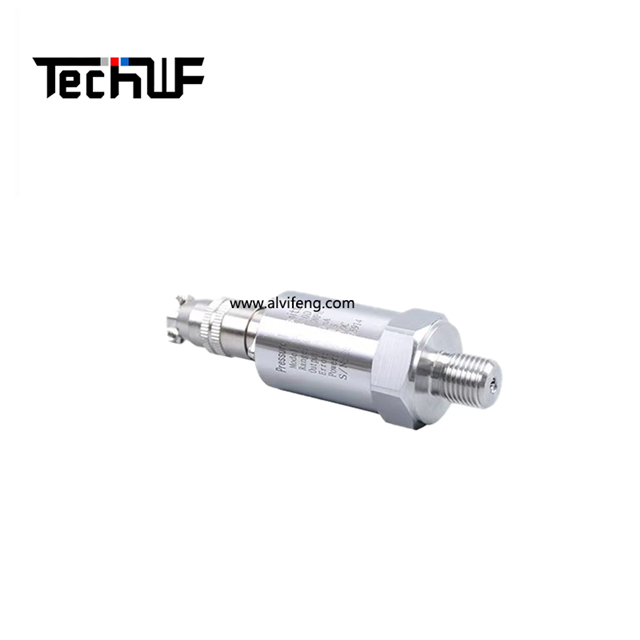

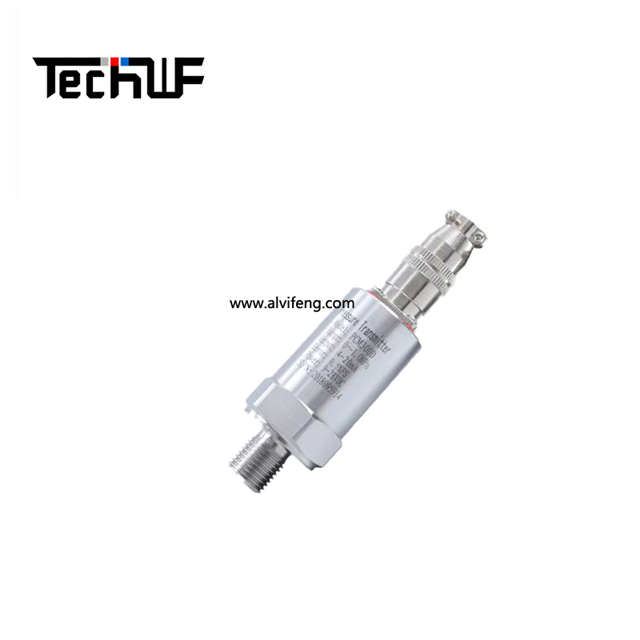

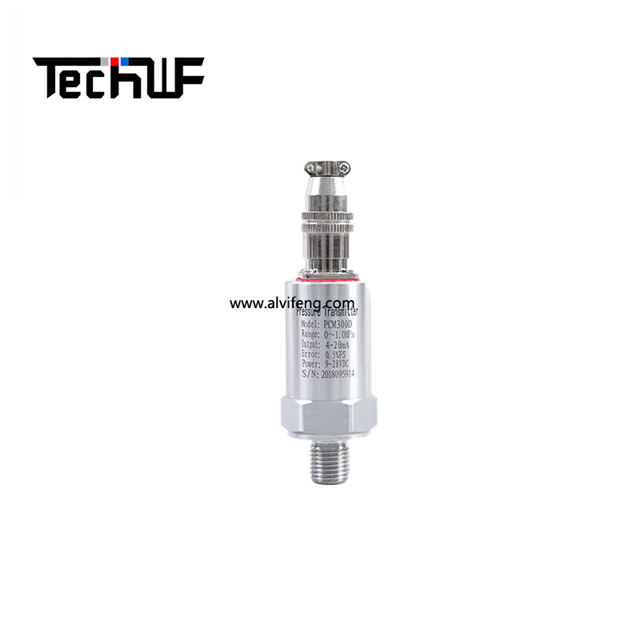

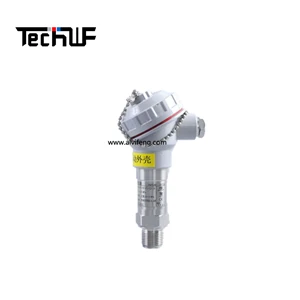

PCM300 fine small Hersman aero socket pressure transmitter constant pressure water supply pressure sensor,Products,Wenzhou WeiFeng Technology Co., Ltd.

Product column number
PCM300
	Range
	The range shall be filled in directly according to the customer's requirements, such as (0-1MPa) or refer to the Conventional Range Table

		PoPer supply mode
		V1:12~24VDC、V2：9~24VDC V3:5VDC、V4:3~3.7VDC
			Output signal
			B1:4~20mA、B2：0~10V、B3:1~5、B4:0~5V、B5:Other custom outputs
			B1:4~20mA、B2：0~10V、B3:1~5、B4:0~5V、B5:Other custom outputs
				Interface Thread
				C1：M20×1.5、C2：G1/2、C3：M14×1.5、C4:G1/4
				C1：M20×1.5、C2：G1/2、C3：M14×1.5、C4:G1/4
					Additional functions
					J1: Waterproof outgoing line, J2: aviation plug, J3: Hesman
					J1: Waterproof outgoing line, J2: aviation plug, J3: Hesman
Eg： PCM300 V1 B1 C1 J1						Give an example：PCM300（0~1.0MPa）V1-B1-C1-J1
Eg： PCM300 V1 B1 C1 J1						Give an example：PCM300（0~1.0MPa）V1-B1-C1-J1

Range table

Code name	Range	Code name	Range	Code name	Range	Code name	Range

P1	0~1kPa	P2	0~2kPa	P3	0~3kPa	P4	0~4kPa
P5	0~6kPa	P6	0~10kPa	P7	0~16kPa	P8	0~20kPa
P9	0~25kPa	P10	0~40kPa	P11	0~60kPa	P12	0~100kPa
P13	0~0.16MPa	P14	0~0.25MPa	P15	0~0.4MPa	P16	0~0.6MPa
P17	0~1.0MPa	P18	0~1.6MPa	P19	0~2.5MPa	P20	0~4MPa
P21	0~6MPa	P22	0~10MPa	P23	0~16Mpa	P24	0~25MPa
P25	0~40MPa	P26	0~60MPa	P27	0~100MPa	P28	-100kpa~0
P29	-100~100kPa	P30	-100~30kPa	Other order ranges can be directly commented
