1. Product Overview

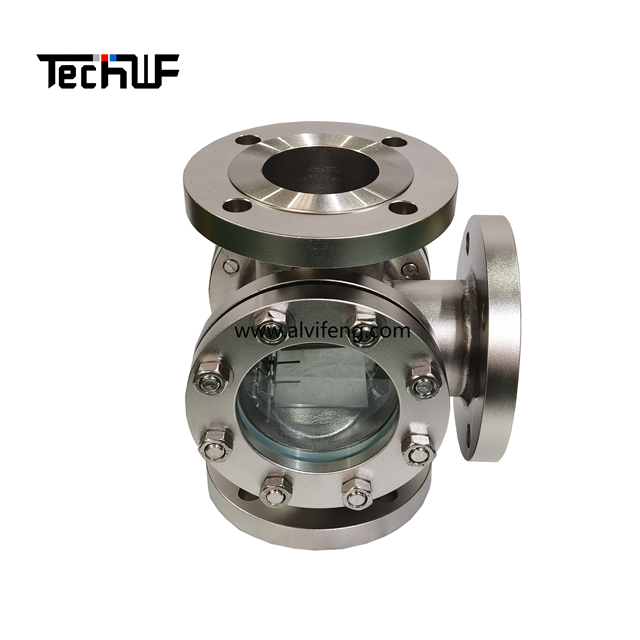

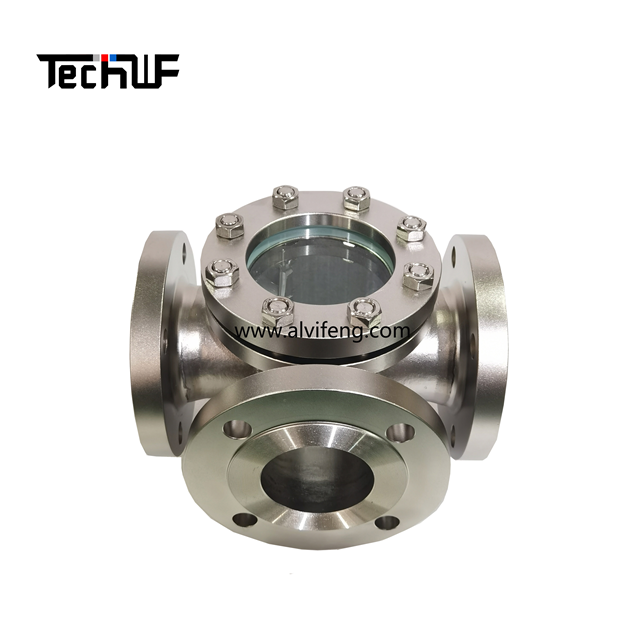

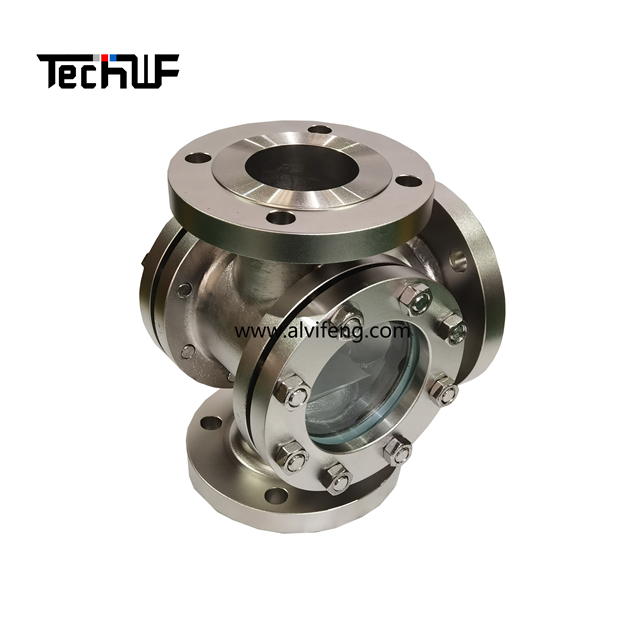

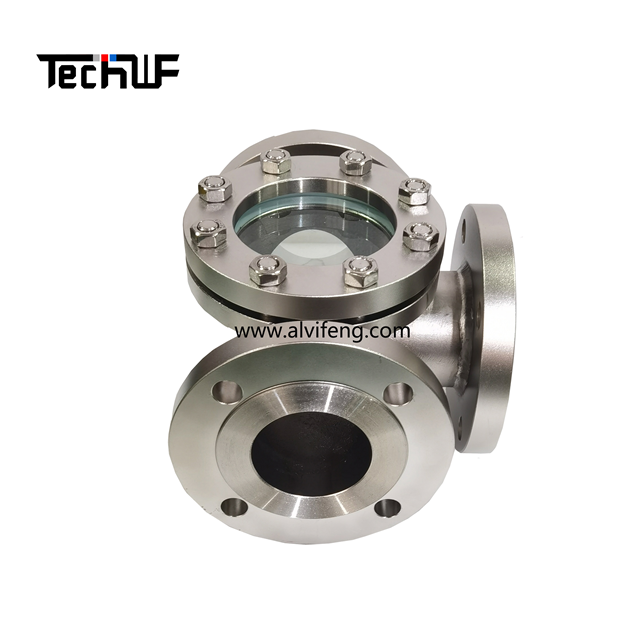

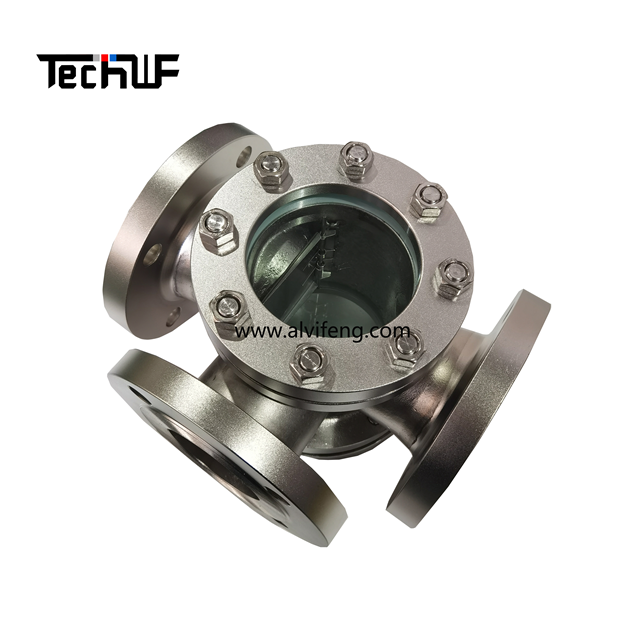

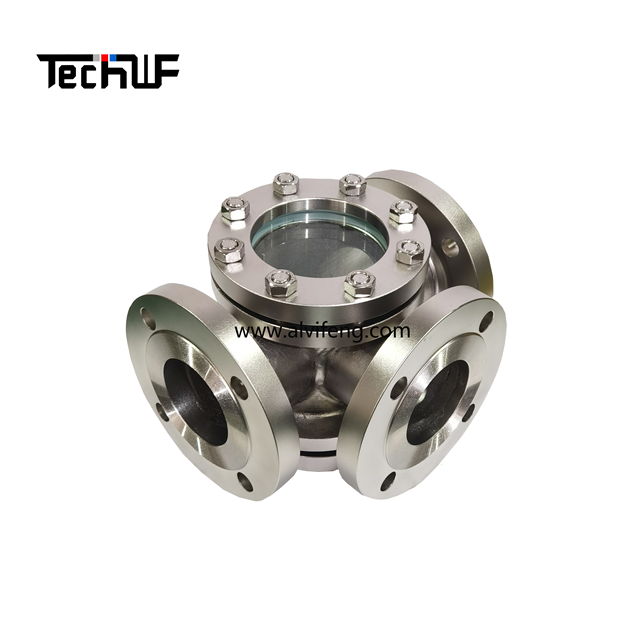

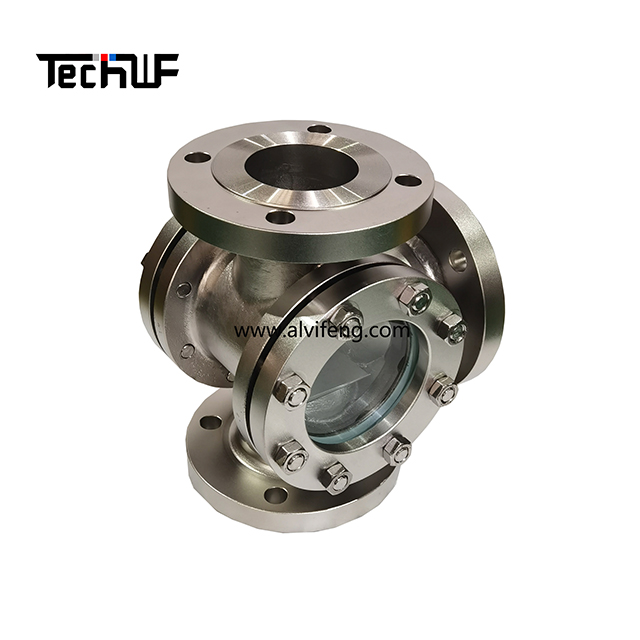

WF-BB11-208T three-way flanged eight-bolt swing paddle sight glass is a heavy-duty multi-port full-flange inline visual flow monitor independently developed by TechWF. It adopts integrated three-way T-shaped cross cast stainless steel body with three symmetrical standard flanged ports and an eight-bolt circular split sight window with built-in calibrated swing paddle indicator. It supports multi-direction T-type pipeline layout and full panoramic fluid real-time observation, widely applied in sanitary food & pharmaceutical production, fine corrosive chemical transportation, large-scale precision agricultural irrigation, offshore and coastal marine anti-corrosion three-branch flanged pipeline systems.

This sight glass is precision cast from 304 / 316 / 316L stainless steel one-piece T-three-way body, equipped with three symmetrical GB/ANSI/DIN standard full-face flanges for horizontal/vertical T-branch pipeline bolt connection. The circular sight window is locked by eight evenly distributed hex socket stainless steel bolts, fitted with thick high-pressure resistant borosilicate glass and weighted swing paddle with quantitative scale dial. The eight-bolt split structure enables full disassembly without cutting pipelines, supporting complete extraction of internal swing paddle for deep flushing of organic residues, pharmaceutical crystals and fertilizer sludge deposits. It realizes real-time panoramic monitoring of flow velocity, pipeline emptying, clogging and reverse flow, effectively protecting multi-circulation pumps, three-channel micro reactors, agricultural T-branch irrigation equipment and ship three-loop cooling systems from dry-running and cavitation damage.

All finished units pass hydraulic burst pressure test, long-cycle salt spray anti-corrosion aging test, eight-bolt uniform compression leakage test and hot-cold alternating cycle validation before factory delivery, maintaining stable zero-leak continuous operation under purified water, glycol, weak acid/alkali and low-salinity seawater media globally.

2. Premium Technical Specifications

Body Material: 304 / 316 / 316L stainless steel precision casting, matte passivated anti-rust finish, fully compliant with food contact and marine anti-salt sanitary standards
Connection Standard: Three-way symmetrical full flanges complying with GB / ANSI / DIN standards, customizable sizes DN25~DN200
Sight Window: Thick-wall impact-resistant round borosilicate top glass, 270° vertical full panoramic viewing without visual blind spots
Fastening Structure: Eight symmetric hex socket stainless steel bolts for circular top clamping flange, uniform stress distribution to avoid glass cracking under pressure fluctuation and water hammer impact
Sealing Assembly: Double-layer EPDM / FKM composite O-ring seals; EPDM for clean water & edible media, FKM for chemical solvent & brine media
Flow Indicator Core: Weighted swing paddle with printed quantitative scale dial, acid/alkali/saltwater corrosion resistant, highly sensitive to micro low flow for early warning
Nominal Working Pressure: PN16 standard grade; PN25 marine high-pressure reinforced customized version optional
Operating Temperature Range: -20℃ ~ +180℃
Flow Channel Design: Three-way T-type full-bore inner cavity, zero extra pressure drop, smooth seamless inner wall reduces medium residue adhesion and sediment buildup
Structural Feature: Integrated three-way T-flanged body, circular eight-bolt split top sight cover, fully disassemblable without pipeline cutting for paddle replacement and deep cavity CIP cleaning

3. Core Competitive Advantages

Integrated Three-Way T-Type Anti-Corrosion Stainless Steel Cast Body

One-piece seamless precision casting eliminates internal stagnant dead zones. Three symmetrical flanged ports support horizontal straight + vertical branch T-type multi-direction pipeline layout. A single three-way sight glass realizes multi-branch flow monitoring, reducing pipeline fitting quantity, connection points and overall project investment cost. Smooth polished inner surface avoids organic, crystal and fertilizer sediment adhesion; 316L upgraded material delivers outstanding ocean salt fog resistance for coastal and marine T-branch multi-loop piping systems.
Universal Standard Full Flange Multi-Directional Quick Installation

Three identical standard full-face flanges match all mainstream industrial flanged pipe fittings, supporting arbitrary T-angle bidirectional assembly without transition adapters, drastically shortening construction cycles for complex three-branch trunk pipeline networks.
Eight-Bolt Circular Balanced Clamping Observation Window

Eight evenly distributed hex bolts uniformly disperse clamping pressure on the whole sight glass and double composite gaskets, preventing partial gasket extrusion and glass rupture under frequent hot-cold pressure swings. Circular frame distributes load more evenly than square four-bolt designs, improving safety for high-temperature and variable-pressure continuous production lines.
Vertical Top-Down Large Panoramic Space-Saving Sight Window

Oversized round top borosilicate glass enables unobstructed vertical downward full-angle observation, only requiring vertical overhead clearance instead of horizontal side space. Perfectly suited for densely arranged T-branch flanged pipelines, low-ceiling clean workshops and compact yacht engine room piping racks where side-view sight glasses are blocked by surrounding equipment frames. Operators can clearly observe paddle deflection, air bubbles and suspended impurities at a glance.
Zero Pressure Loss Three-Way Full-Bore Unrestricted Flow Path

No internal protruding throttle structures generate additional pressure loss; original pipeline flow capacity is fully retained, meeting low-loss flow control requirements of central multi-circulation heating, three-channel fine chemical delivery and large farm T-branch irrigation flanged trunk systems.
Chemical-Inert Quantitative Swing Paddle Visual Feedback

Different from simple star impeller sight glasses, the weighted swing paddle with printed flow scale displays approximate flow volume intuitively instead of merely confirming flow on/off. PPS composite paddle maintains stable swing performance under long-term contact with acid, alkali and brine without jamming or corrosion failure.
Compact Three-Way T-Shaped Multi-Port Integrated Layout

One-piece three-way T-flanged structure replaces two separate straight sight glasses, saving horizontal linear layout space for dense multi-directional parallel flanged main pipelines in chemical workshops and marine engine rooms.
Eight-Bolt Quick-Disassemble Low-Maintenance Sanitary Design

After removing eight top hex bolts, the entire circular top viewing frame, glass and swing paddle assembly can be fully lifted out without detaching the whole fitting from the flanged pipeline. Maintenance personnel can thoroughly flush accumulated limescale, fertilizer scale and chemical sludge, solving the deep sanitization difficulty of integrated sight glasses for viscous sanitary and corrosive media pipelines.

4. Global Cross-Industry Application Scenarios

Sanitary Food & Pharmaceutical Manufacturing

Multi-branch purified water circulation T-type flanged pipelines, beverage three-channel transfer flanged trunk lines, cosmetic raw material three-loop delivery mains; three-way multi-port design simplifies complex clean room pipeline networks, reduces leakage points and fitting inventory.

Fine & Light Petrochemical Corrosive Engineering

Multi-loop glycol cooling T-shaped flanged pipelines, three-channel weak acid/alkali solvent conveyance flanged trunk lines, electroplating multi-tank circulation flanged mains; high-temperature resistant stainless steel body adapts to medium-temperature oil-water mixed weak corrosion circulation systems.

Large-Scale Precision Agriculture

Regional farm T-branch water supply flanged trunk pipelines, greenhouse three-channel nutrient solution circulation flanged mains, centralized multi-row sprinkler irrigation inspection flanged lines; cost-effective integrated three-way structure suits large farm multi-branch water treatment flanged pipeline projects.

Offshore & Yacht Marine Anti-Corrosion Engineering

Ship three-loop auxiliary cooling circulation flanged piping, offshore platform three-channel desalination auxiliary flanged trunk lines, marine aquaculture three-branch low-salinity brine recirculation flanged pipelines; 316L stainless steel variant withstands ocean salt fog and seawater splash corrosion, meeting long-term marine service standards.

Supplementary Auxiliary Fields

Large commercial solar multi-loop hot water circulation flanged trunk pipelines, fire protection three-branch main water supply flanged lines, industrial pure water pretreatment three-channel flanged main equipment.

5. Customized Engineering Support Service

Material Customization: Standard 304 stainless steel, upgrade to 316 / 316L marine high anti-corrosion sanitary grade
Flange Standard Customization: Custom flange outer diameter, bolt hole dimension and pressure class per GB, ANSI, DIN industrial standards
Pressure Grade Customization: Standard PN16, PN25 marine high-pressure reinforced variant, PN40 ultra-high pressure bespoke model
Sealing Material Matching: Food-grade EPDM for water & edible media, FKM fluororubber upgrade for acid, alkali and organic solvent transportation
Brand & Packaging Customization: Laser engraved customer LOGO on three-way T-body, anti-collision neutral export wooden case packaging; complete material & pressure test certificates provided for tender documentation
Caliber Customization: DN25, DN40, DN50, DN65, DN80, DN100 up to DN200 non-standard flanged sizes available

6. Factory Premium Quality Control Standards

All WF-BB11 series three-way T-flanged sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing items include hydraulic burst pressure test, eight-bolt uniform compression sealing leakage test, salt spray long-cycle anti-corrosion aging test, swing paddle low-flow sensitivity test and cold-hot alternating cycle validation.

Complete stainless steel material certification, sanitary inspection reports and full pressure vessel test packages can be supplied to support global heating, petrochemical and marine engineering tender reviews, offshore platform equipment audits and food factory safety compliance assessments.
