Model No.: WF-YL11-002
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Target Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Equipment
1. Product Overview
WF-YL11-002 is a high-grade stainless steel impeller flow sight indicator independently developed by TechWF, designed for heavy-duty, corrosive and extreme temperature working environments across industrial, chemical, agricultural and offshore marine industries.

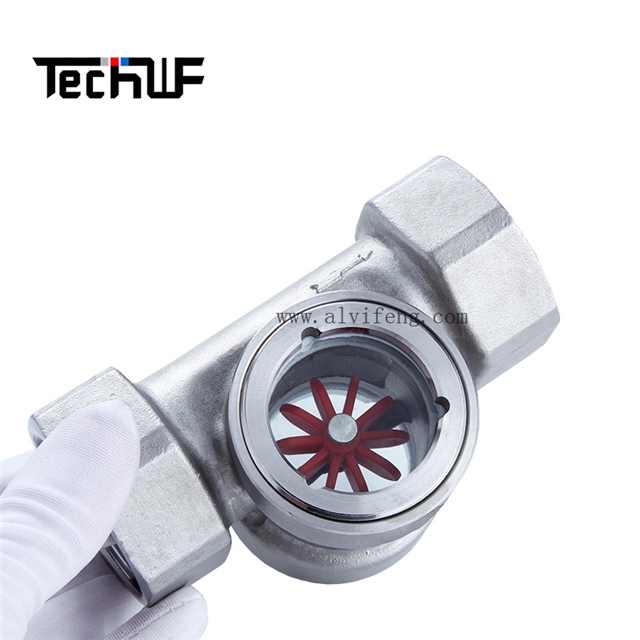

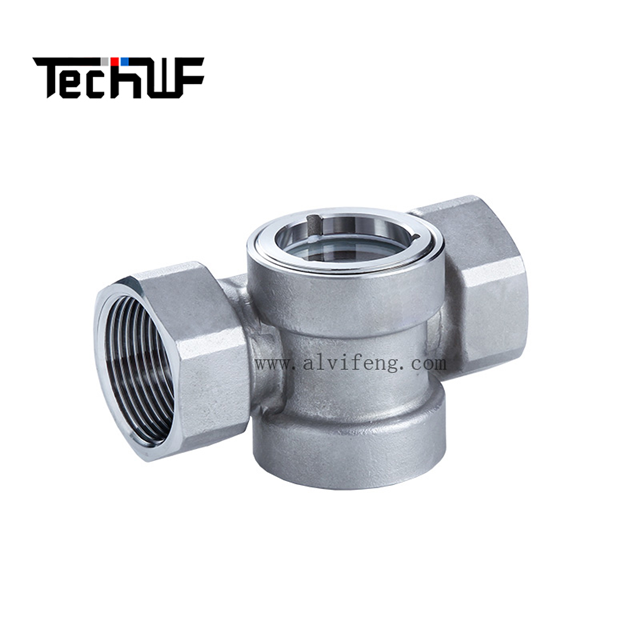

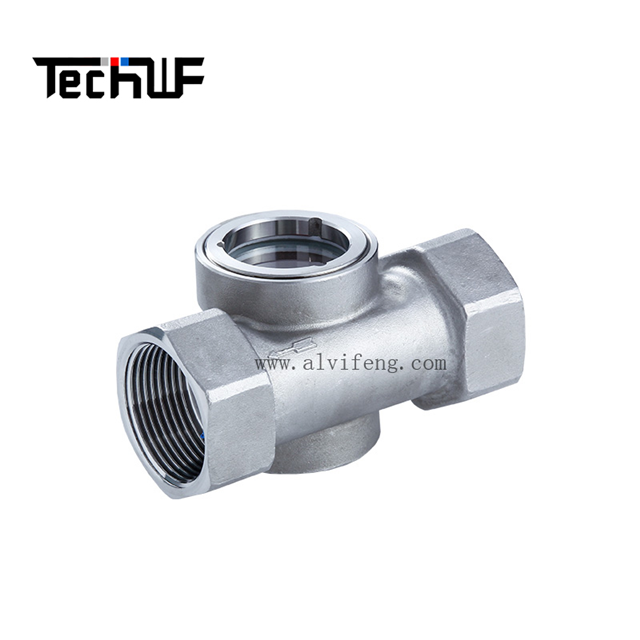

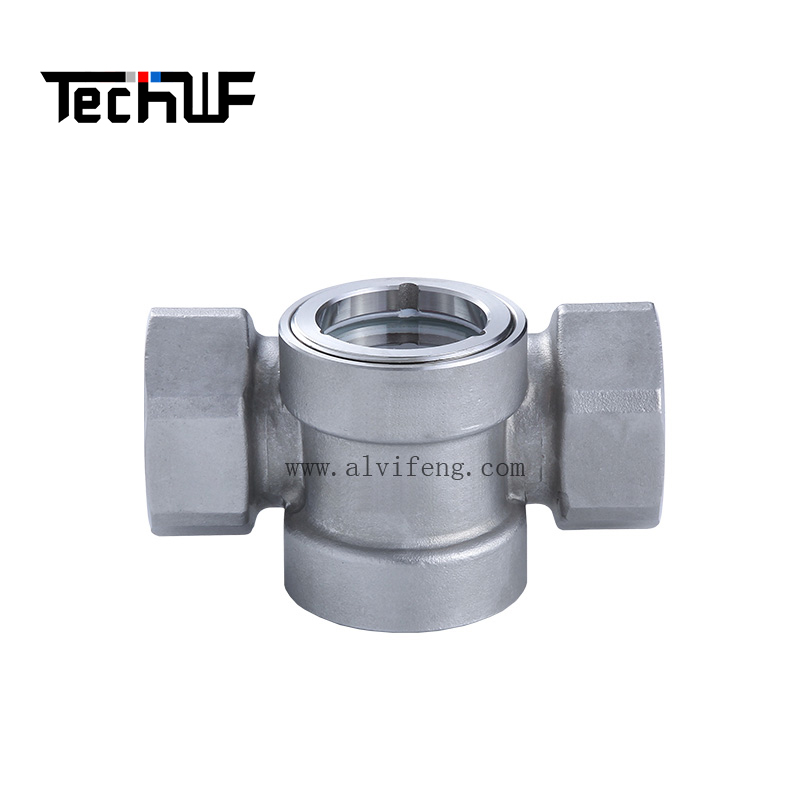

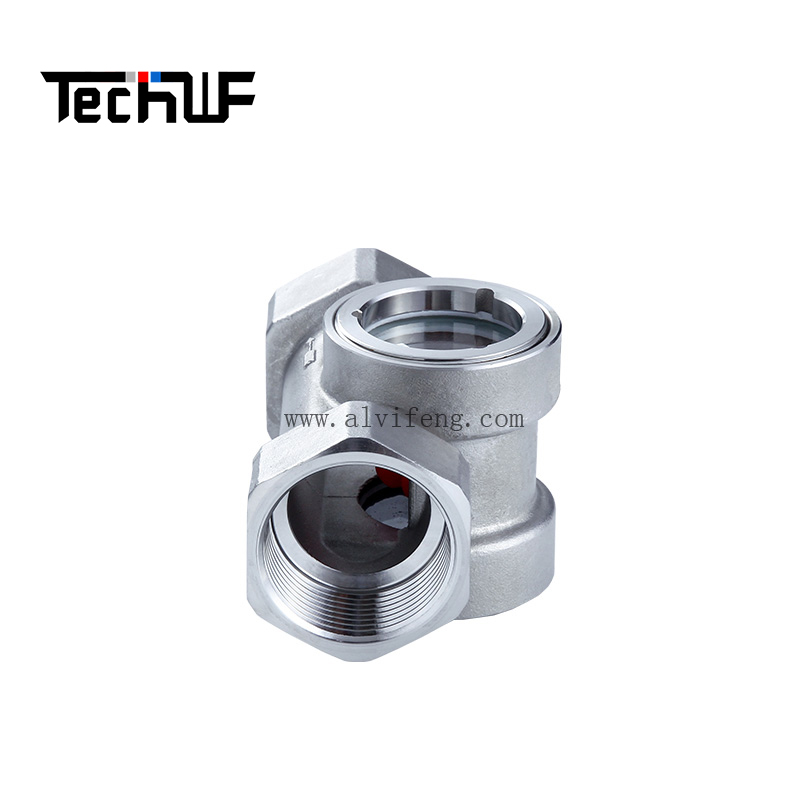

Adopting one-piece precision stainless steel casting body, bidirectional female internal thread connection, top wide-view borosilicate sight glass and high-sensitivity 10-blade anti-corrosion star impeller, this pipeline fitting provides real-time visual monitoring of fluid flow velocity, pipeline blockage, medium cut-off and reverse flow. It effectively protects circulating pumps, chemical reactors, farm irrigation facilities and offshore seawater circulation equipment from dry running, cavitation and mechanical damage.
Every finished unit passes complete hydraulic pressure burst test, salt spray corrosion aging test, sealing leakage test and cold-hot alternating cycle test before delivery, ensuring stable long-cycle continuous operation in high-salt, weak acid, weak alkali and high-temperature fluid media worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel (passivated matte finish, anti-rust, seawater & mild chemical resistant, meets food & sanitary industry standards)
- Connection Standard: BSP / NPT female internal thread, full size range DN15–DN50
- Sight Window: High-pressure resistant borosilicate tempered glass, top panoramic wide viewing angle
- Sealing System: Double-layer FKM fluorine rubber O-ring composite seal, acid, alkali, brine and industrial oil resistant
- Flow Indicator Core: Reinforced red 10-blade star impeller, ultra-sensitive to micro low fluid flow
- Nominal Working Pressure: PN16 standard; PN25 high-pressure marine reinforced version customizable
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure loss
- Structural Feature: Compact short T-type body, small footprint for narrow installation spaces
3. Core High-End Industrial Advantages
3.1 Integrated Precision Cast Stainless Steel Body
One-piece casting technology creates smooth inner walls without dead corners, delivering superior anti-corrosion and anti-scaling performance. Compatible with sanitary fluid pipelines for food, pharmaceutical and offshore seawater systems, extending service life under long-term corrosive exposure.
3.2 Full-Bore Unobstructed Flow Path
No internal throttle protrusions to generate pressure drop, fully retaining the original pipeline designed flow capacity. Perfect for precise flow control in fine chemical production and sophisticated industrial process loops.
3.3 Panoramic Top Observation Sight Glass
Large-diameter top-mounted sight window eliminates visual blind spots. Operators can clearly observe impeller rotation speed, fluid impurities, bubbles and flow status under any installation angle.
3.4 Ultra-Sensitive 10-Blade Star Impeller
Specially designed multi-blade impeller responds to minimal fluid flow, accurately identifying low flow, pipeline dry-up and backflow risks to avoid unexpected production shutdown and costly equipment failure.
3.5 Dual Heavy-Duty Leak-Proof Sealing Assembly
Dual FKM fluororubber sealing rings resist chemical erosion, salt spray aging and extreme temperature fluctuations, maintaining zero leakage under long-term full-load operation in chemical and offshore high-salt corrosive environments.
3.6 Compact T-Type Space-Saving Structure
Short T-shaped integrated body occupies minimal installation space, ideal for built-in equipment pipelines, compact unit cabinets and confined industrial assembly layouts.
3.7 Multi-Harsh Environment Certified Performance
Validated through rigorous salt spray aging, hot-cold alternating cycle and hydraulic burst pressure testing, reliable for year-round non-stop operation of industrial, chemical, agricultural and offshore marine projects.
3.8 Maintenance-Free Industrial Construction
No easily worn consumable components; only occasional simple wiping of the sight glass is required, significantly reducing long-term operation and maintenance costs for large engineering projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Manufacturing
Factory circulating cooling water loops, boiler auxiliary pipelines, central HVAC chilled water systems, machine tool hydraulic oil circuits; prevents pump dry-grinding and equipment cavitation damage.
Chemical & Process Engineering
Conveyance pipelines for weak acid, weak alkali and light chemical solvents, chemical intermediate circulation lines; real-time visual flow monitoring avoids pipeline blockage and material cut-off production halts.
Modern Precision Agriculture
Large-scale farm water supply mains, greenhouse nutrient solution circulation pipelines, drip & sprinkler irrigation flow inspection; guarantees uniform water distribution and prevents crop drought yield losses.
Offshore & Marine Engineering
Ship engine room cooling circulation piping, offshore platform fresh & seawater auxiliary lines, marine aquaculture water recirculation systems; anti-salt corrosion stainless steel structure adapts to coastal and open-ocean high-salt humid environments.
Supplementary Application Fields
Industrial pure water treatment equipment, solar thermal circulation pipelines, fire protection water branch lines, sanitary food-grade fluid transfer pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical oil & solvent transport
- Brand & Packaging Customization: Laser engraved customer LOGO, neutral export carton/wooden case packaging; third-party official test reports available for tender documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing procedures include hydraulic burst pressure testing, sealing leakage testing, salt spray corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be provided to support global engineering tender reviews, offshore marine project audits and chemical plant safety compliance assessments.
