Model No.: WF-YL11-2
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Industries: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL11-2 vertical barrel impeller flow sight indicator is a premium heavy-duty pipeline visual monitoring fitting independently engineered by TechWF for harsh industrial, chemical, agricultural and offshore marine working environments.

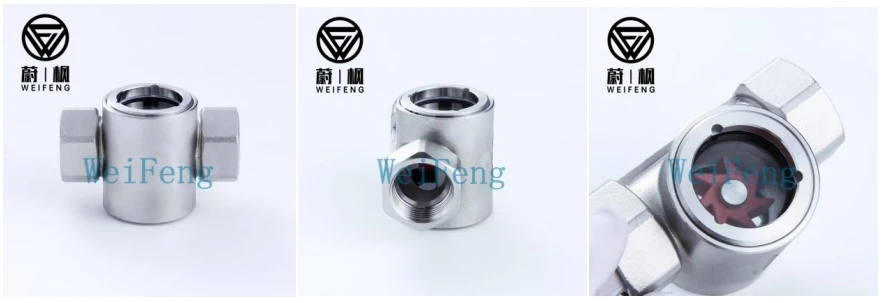

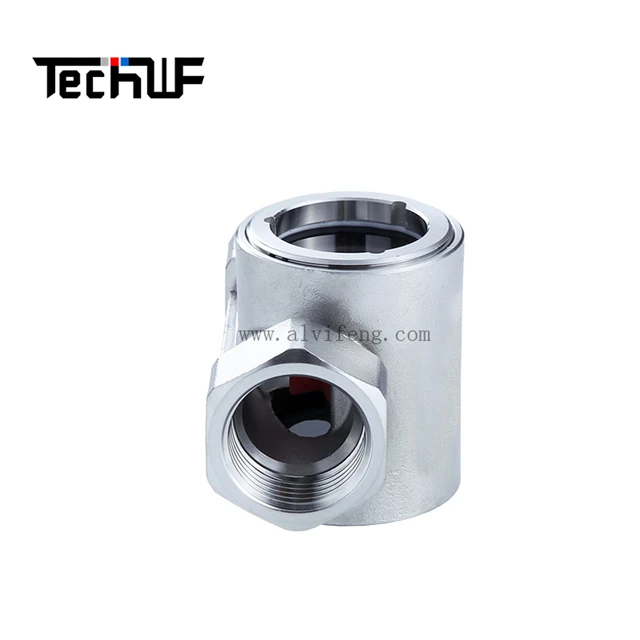

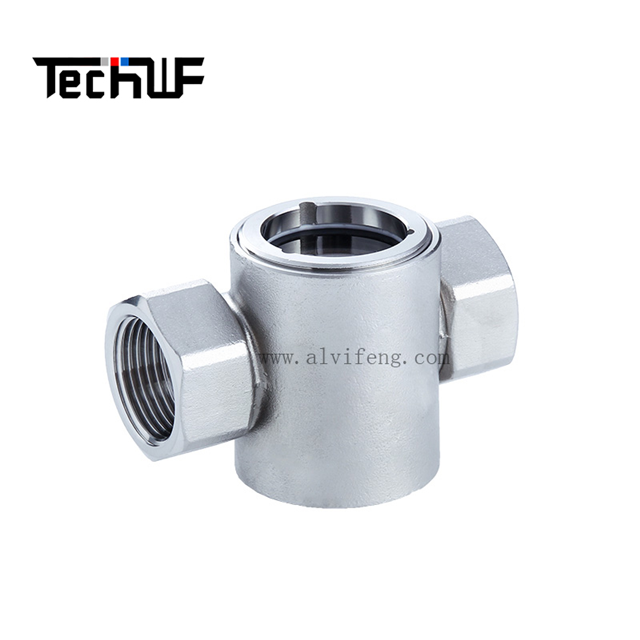

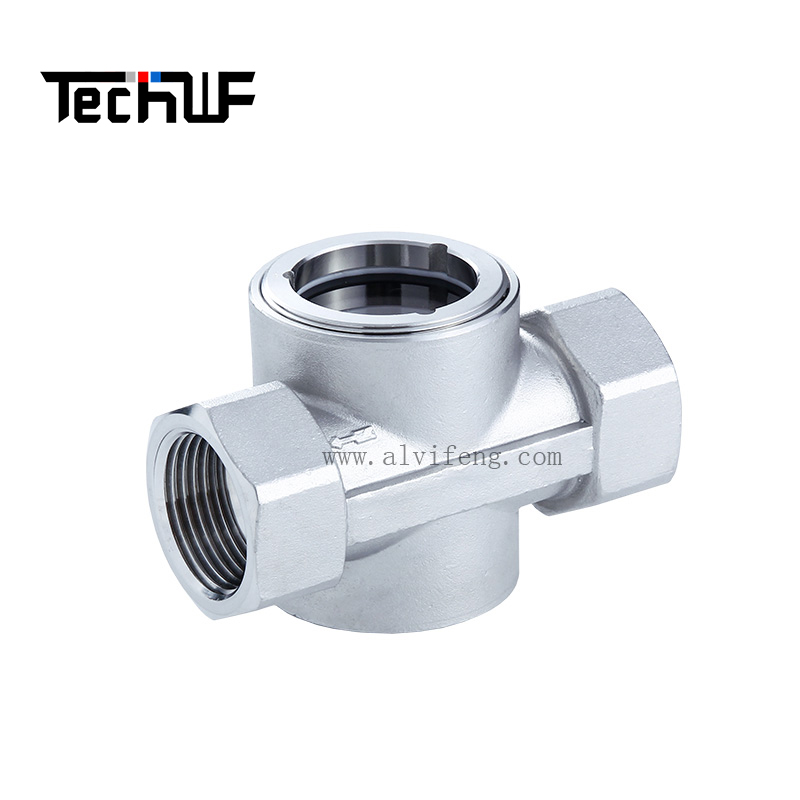

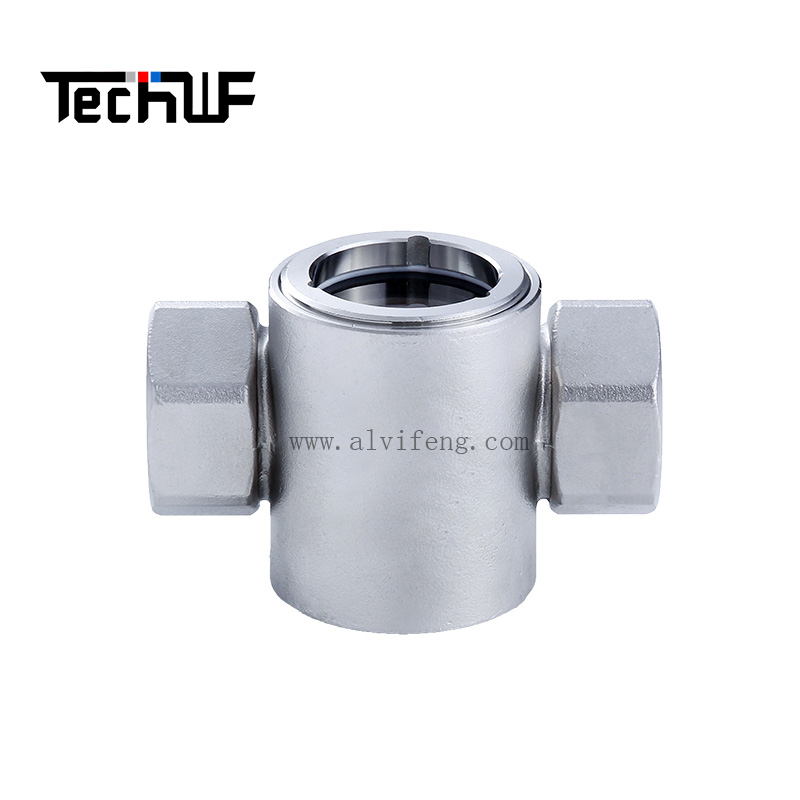

Constructed from one-piece precision cast stainless steel with an upright vertical barrel body and dual female internal thread connections, this sight glass is equipped with a top large borosilicate sight window and high-sensitivity star anti-corrosion impeller. It delivers real-time visual detection of fluid flow velocity, pipeline clogging, medium cut-off and reverse flow, fully safeguarding circulation pumps, chemical reactors, irrigation systems and offshore seawater circulation hardware against dry running, cavitation and mechanical failure.
Every finished unit undergoes full hydraulic burst pressure testing, salt spray corrosion aging testing, double sealing leakage testing and high-low temperature alternating cycle validation before factory delivery, guaranteeing stable long-cycle continuous service under high-salinity, mild acid/alkali and high-temperature fluid conditions worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel (passivated matte surface, anti-rust, anti-scale, seawater & weak chemical resistant, food and sanitary standard compliant)
- Connection Standard: BSP / NPT female internal thread, complete size range DN15–DN50
- Sight Window: High-pressure resistant borosilicate tempered glass, wide top panoramic viewing angle
- Sealing Assembly: Double-layer FKM fluorine rubber O-ring composite seal, resistant to acid, alkali, brine and industrial lubricating oils
- Flow Indicator Core: Reinforced red star multi-blade impeller, ultra-sensitive to minimal micro fluid flow
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop without flow resistance
- Structural Feature: Upright vertical barrel compact body, optimized space layout for vertical installation scenarios
3. Core High-End Industrial Advantages
3.1 Integrated Precision Cast Stainless Steel Vertical Barrel Body
One-piece stainless steel casting forms smooth inner walls free of dead corners, delivering outstanding anti-corrosion and anti-fouling performance. It meets strict sanitary requirements for food, pharmaceutical and offshore seawater fluid pipelines, extending service lifespan under long-term corrosive medium exposure.
3.2 Full-Bore Unobstructed Flow Channel
No internal throttle protrusions generate additional pressure loss; the original pipeline design flow rate is completely retained, perfectly matching precise flow control demands of fine chemical and sophisticated industrial process loops.
3.3 Wide-Angle Top Panoramic Observation Window
Large-diameter top-mounted sight glass eliminates visual blind spots, allowing operators to clearly observe impeller rotation speed, fluid impurities, foam and full flow status regardless of vertical or horizontal installation orientation.

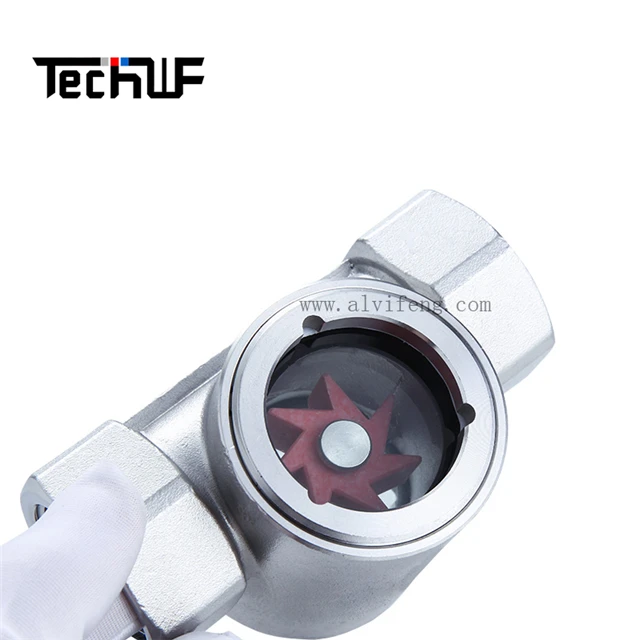

3.4 Ultra-Sensitive Low-Flow Star Impeller
Custom molded multi-blade star impeller responds to tiny fluid flow volume, accurately identifying low flow, pipeline dry-up and backflow risks to avoid unplanned production shutdown and costly equipment damage.
3.5 Dual Heavy-Duty Leak-Proof Sealing System
Dual FKM fluororubber sealing rings withstand chemical erosion, salt spray aging and extreme temperature alternation, maintaining zero leakage under long-term full-load continuous operation in chemical and offshore high-salt corrosive environments.
3.6 Optimized Vertical Barrel Compact Layout
Upright vertical barrel integrated design occupies minimal horizontal installation space, perfectly suited for vertical pipeline layouts, built-in equipment piping and narrow compact unit cabinet assemblies.
3.7 Multi-Harsh Environment Verified Reliability
Passed rigorous salt spray aging, hot-cold alternating cycle and hydraulic burst pressure tests, reliably supporting year-round non-stop operation of industrial, chemical, agricultural and offshore marine engineering projects.
3.8 Maintenance-Free Industrial Structure
No easily worn consumable spare parts integrated; only occasional simple wiping of the sight glass surface is required, drastically cutting long-term operation and maintenance expenditure for large-scale engineering projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Manufacturing
Factory circulating cooling water pipelines, boiler auxiliary branch lines, central HVAC chilled water systems, machine tool hydraulic oil circuits. Effectively prevents pump dry-grinding and equipment cavitation breakdown.
Chemical & Process Engineering
Conveyance pipelines for weak acid, weak alkali and light chemical solvents, chemical intermediate circulation pipelines. Real-time visual flow monitoring eliminates pipeline blockage and material cut-off production halts.
Modern Precision Agriculture
Large-scale farm trunk water supply pipelines, greenhouse nutrient solution circulation lines, drip & sprinkler irrigation flow inspection. Ensures uniform irrigation distribution and avoids crop drought yield reduction.
Offshore & Marine Engineering
Ship engine room cooling circulation piping, offshore platform fresh water & seawater auxiliary pipelines, marine aquaculture water recirculation systems. Stainless steel anti-salt corrosion construction adapts to coastal and open-ocean high-salt humid environments.
Supplementary Application Fields
Industrial pure water treatment equipment, solar thermal circulation pipelines, fire protection water branch lines, sanitary food-grade fluid transfer pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical oil & solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO, neutral export carton/wooden case packaging; third-party official test reports provided for tender documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, sealing leakage testing, salt spray corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine project audits and chemical plant safety compliance assessments.
