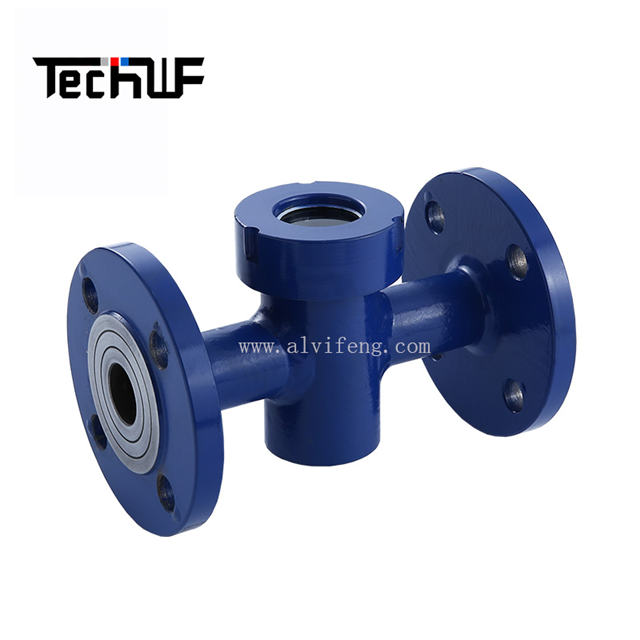

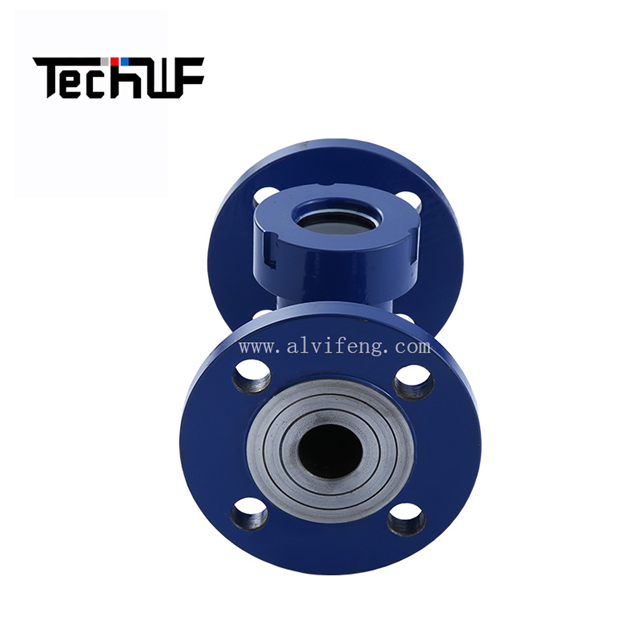

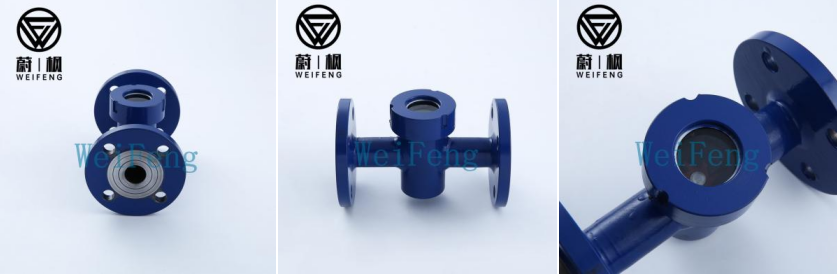

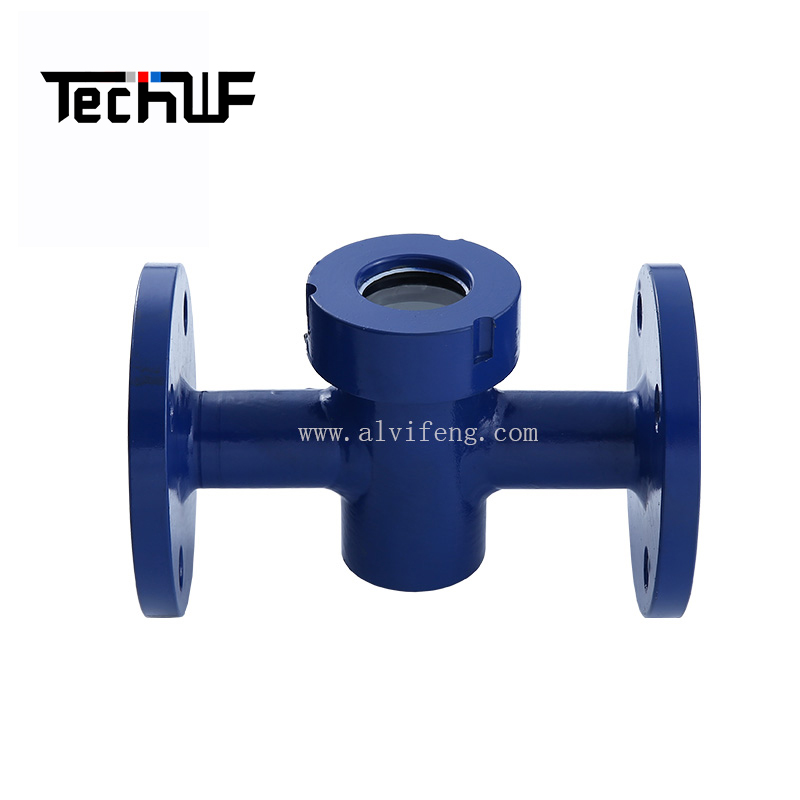

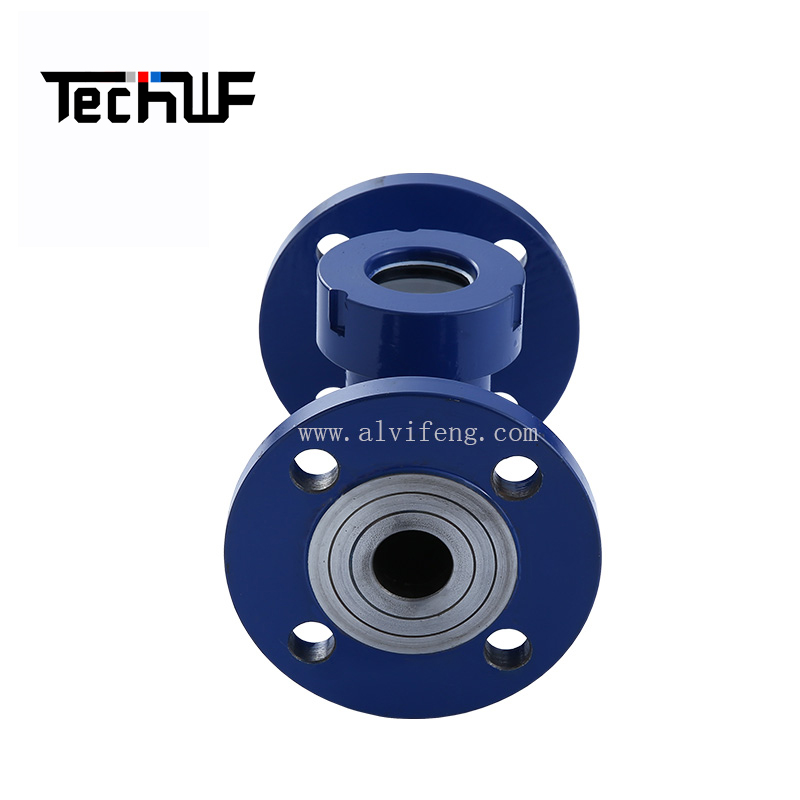

WF-GD87

• Body Material: Ductile cast iron, full surface epoxy anti-rust blue coating
• Connection Form: Integral flange connection, standard PN10/PN16 flange, DN25~DN200 customizable
• Sight Window: High-pressure resistant borosilicate tempered glass, wide top viewing angle
• Sealing System: Double FKM fluorine rubber composite sealing ring, acid, alkali, brine & oil resistant
• Flow Indicator Core: Reinforced corrosion-resistant star impeller, ultra-sensitive to micro flow
• Nominal Working Pressure: PN10, PN16 standard; PN25 high-pressure marine customized version available
• Working Temperature Range: -20℃ ~ +160℃
• Flow Channel: Full straight-through full-bore design, zero extra pressure loss
• Surface Treatment: Uniform electrostatic epoxy spraying, anti-rust, anti-oxidation, anti-salt mist

1. High-Strength Ductile Iron Cast Body
   Integrated casting with excellent shock resistance and pressure bearing capacity. Full blue epoxy anti-corrosion coating effectively blocks oxidation, salt fog and mild chemical medium erosion, long service life for outdoor, coastal and factory harsh environments.
2. Standard Flange Quick Installation Structure
   Integrated one-piece flange design matches global standard pipeline flanges, easy alignment and bolt locking, greatly shortening on-site engineering construction cycle, widely compatible with industrial main pipeline systems.

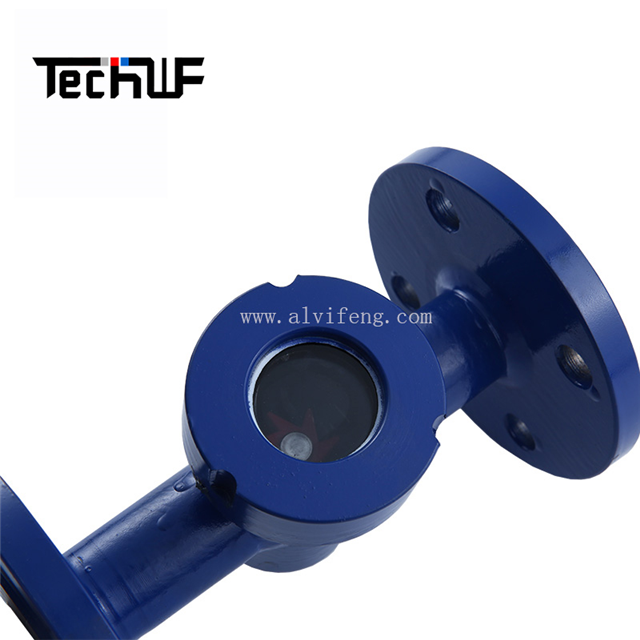

3. Panoramic Top Observation Sight Glass
   Large-diameter top-mounted sight window with wide viewing angle, no visual dead angle, clearly observe impeller rotation speed, fluid impurities, foam and flow state at any installation angle.
4. Ultra-Low Flow Sensitive Impeller
   Specially molded star multi-blade impeller can be driven by tiny fluid flow, accurately identify low flow, pipeline water shortage and backflow risks, avoid unexpected production shutdown losses caused by abnormal pipeline flow.
5. Dual Heavy-Duty Leak-Proof Sealing Assembly
   Double-layer FKM fluororubber sealing structure resists chemical corrosion, salt spray aging and temperature alternation, zero leakage under long-term continuous full-load operation, suitable for chemical and offshore high-corrosion working conditions.
6. Full-Bore Unobstructed Flow Channel
   No internal throttle protrusions, no additional pressure drop, completely retain the original pipeline design flow efficiency, perfectly meet the stable flow control requirements of fine chemical and precision industrial processes.
7. Multi-Harsh Environment Verification
   Pass professional salt spray aging, hot-cold alternating cycle and hydraulic burst pressure tests, reliable for year-round non-stop operation of industrial, chemical, agricultural and offshore marine projects.
8. Low Maintenance Industrial Structure
   No easily worn consumable parts, only simple regular wiping of the sight glass is needed, significantly reduce later operation and maintenance costs of large engineering projects.

Heavy Industrial Manufacturing

Chemical Processing Industry

Modern Precision Agriculture

Offshore & Marine Engineering

Other Supporting Fields

1. Size Customization: DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200 and non-standard large calibers
2. Pressure Grade Customization: PN10, PN16 standard version, PN25 high-pressure reinforced marine version
3. Sealing Material Matching: EPDM for clean water medium, FKM fluororubber for chemical oil and solvent medium
4. Surface Color Customization: Blue standard epoxy coating, gray, black and other anti-corrosion coating colors available
5. Brand & Packaging Customization: Laser engraving customer LOGO, neutral export wooden case/engineering carton packaging, third-party official test reports provided for tender documents
6. Material Upgrade Option: Stainless steel composite flange body for ultra-corrosive chemical working conditions
