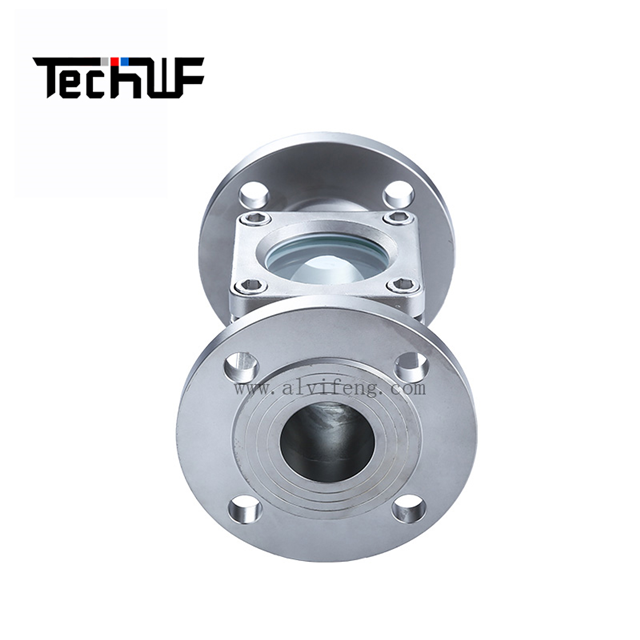

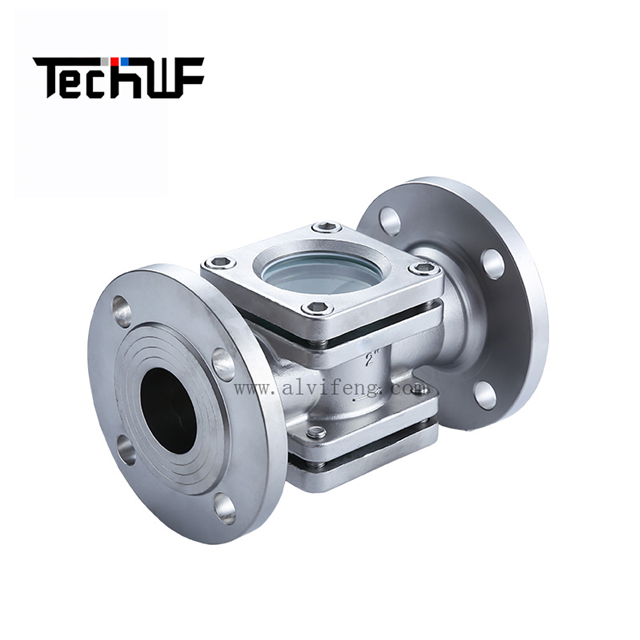

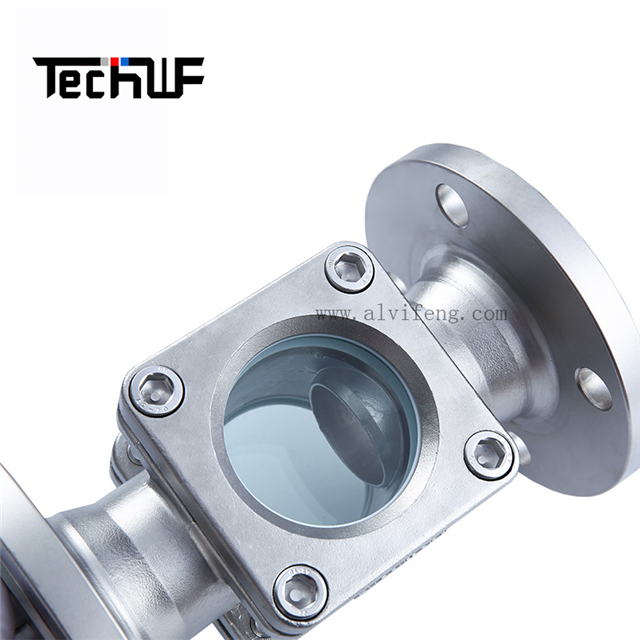

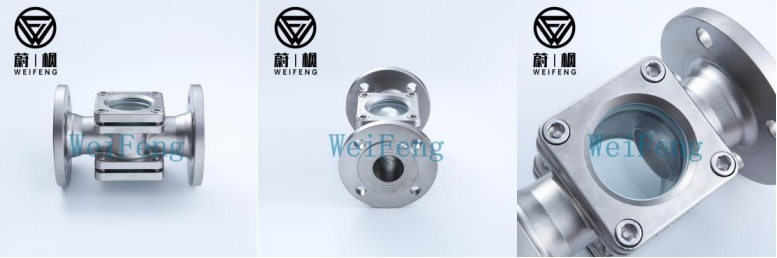

HomeProductsSight Glass Flow IndicatorSight Glass Flow IndicatorWF-ZT41-206

WF-ZT41-206

Model number: WF-ZT41-206D
Body material: carbon steel (WCB); 304; 316; 316L
Caliber: DN6-DN400 (1/8-16 inch)
Mpa pressure rating: 0.6/1.0/1.6/2.5/4.0/5.0
Inquiry Product PDF

Product details

Parameter

Model number: WF-ZT41-206D

Body material: carbon steel (WCB); 304; 316; 316L
Caliber: DN6-DN400 (1/8-16 inch)
Mpa pressure rating: 0.6/1.0/1.6/2.5/4.0/5.0
Medium: water, oil, gas and chemical acid, salty liquid or gas
Glass temperature resistance: tempered borosilicate glass: ≤200℃, quartz glass: 1000℃ allows rapid change of temperature ≤60℃
Glass pressure resistance: tempered borosilicate glass sheet ≤2.5MPa quartz glass sheet ≤10.0MPa
Sealing gasket: Butadiene rubber gasket/PTFE gasket/metal gasket/graphite gasket

Flange standard: HG/ GB/ HGJ/ JB/ ANSI/ JIS/ DIN/ BS/ NF
