Model No.: WF-YL11-2A
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL11-2A external thread flow sight indicator is a premium heavy-duty pipeline visual monitoring fitting independently developed by TechWF, tailored for harsh industrial, chemical, agricultural and offshore marine working environments with high mechanical strength demand.

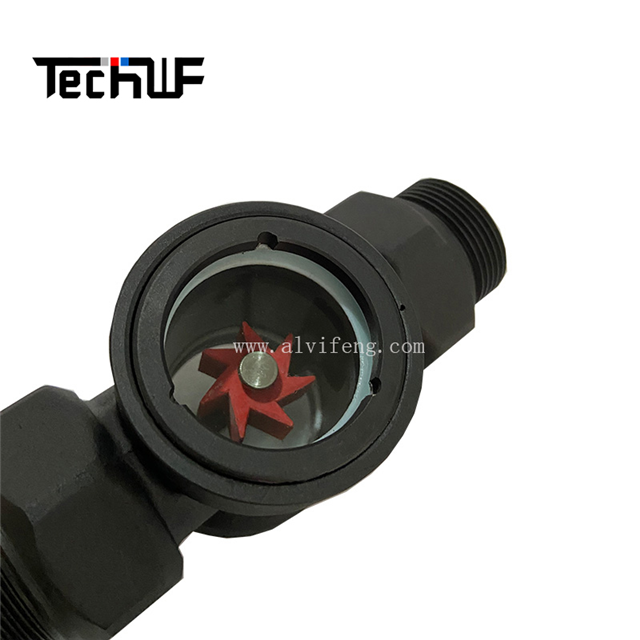

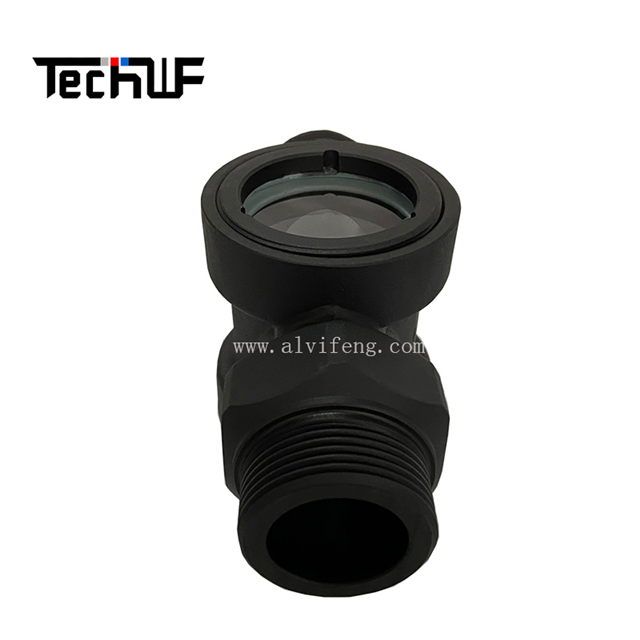

This sight glass adopts integrated carbon steel casting body with anti-rust matte black coating, dual male external thread connection, top wide-view borosilicate sight window and high-sensitivity red star anti-corrosion impeller. It enables real-time intuitive monitoring of fluid flow velocity, pipeline clogging, medium cut-off and reverse flow, fully protecting circulation pumps, chemical reactors, irrigation equipment and offshore seawater circulation systems from dry running, cavitation and mechanical breakdown.
Each finished product undergoes strict hydraulic burst pressure test, salt spray anti-corrosion aging test, double sealing leakage test and cold-hot alternating cycle validation before shipment, delivering stable long-cycle continuous operation under high-temperature, high-salinity and mildly corrosive fluid media.
2. Premium Technical Specifications
- Body Material: High-strength carbon steel, full surface matte black anti-rust coating
- Connection Standard: BSP / NPT male external thread, full size range DN15–DN50
- Sight Window: High-pressure resistant borosilicate tempered glass, top panoramic wide viewing angle
- Sealing Assembly: Double-layer FKM fluorine rubber O-ring composite seal, acid, alkali, brine and industrial oil resistant
- Flow Indicator Core: Reinforced red star multi-blade impeller, ultra-sensitive to micro low fluid flow
- Nominal Working Pressure: PN16 standard; PN25 high-pressure marine reinforced version customizable
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure loss without flow resistance

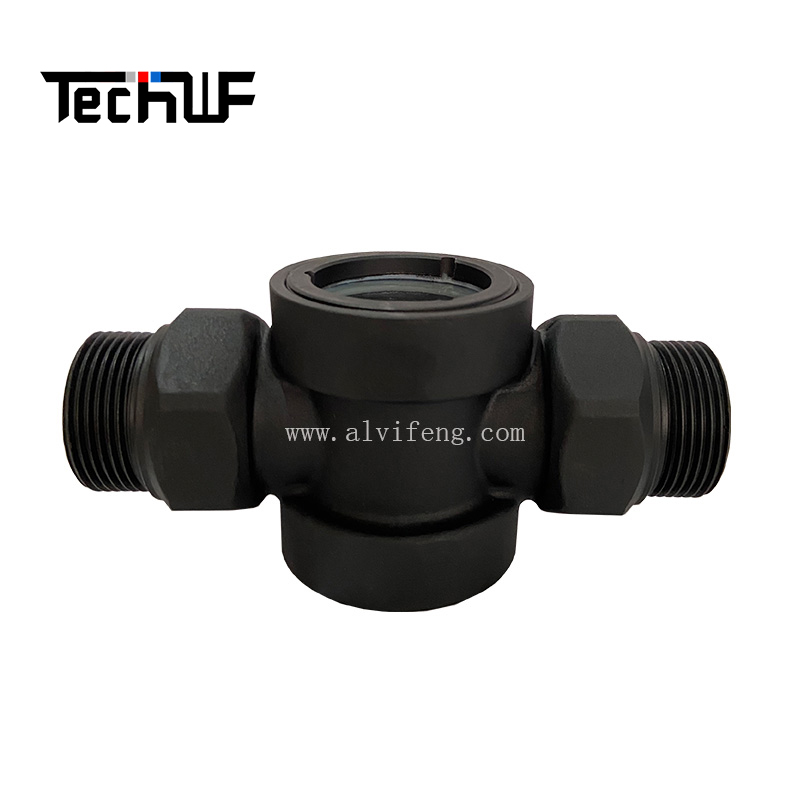

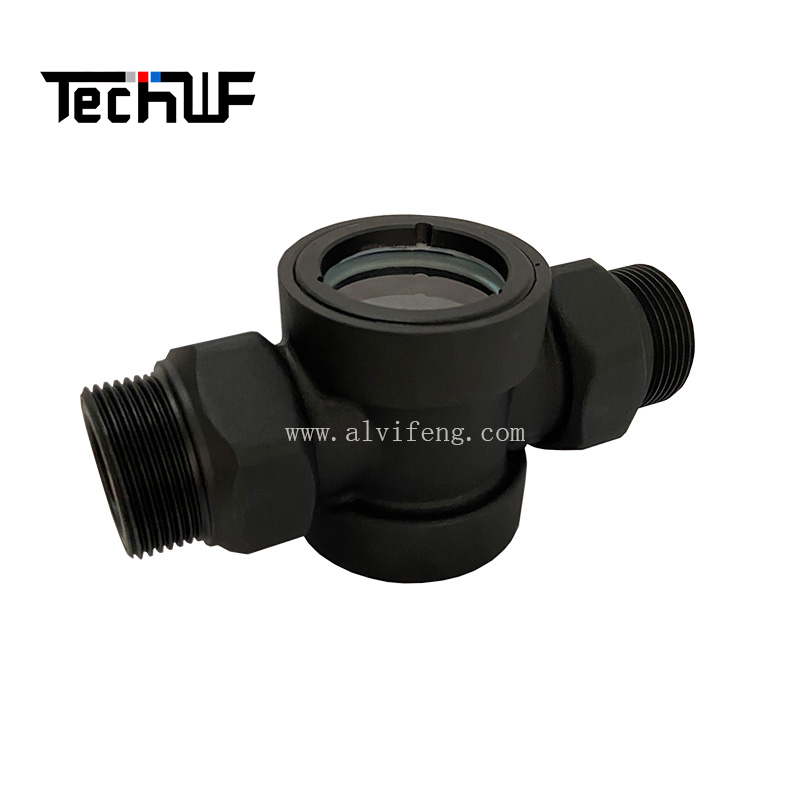

- Structural Feature: Compact T-type body with external male thread, convenient quick pipeline assembly
3. Core High-End Industrial Advantages
3.1 High-Strength Carbon Steel Cast Body
Integral carbon steel casting provides outstanding mechanical shock resistance and pressure bearing capacity. Uniform matte black anti-rust coating effectively blocks oxidation, salt mist and mild chemical medium erosion, ideal for heavy-duty factory, coastal and outdoor harsh working conditions with lower cost compared to stainless steel.
3.2 External Male Thread Quick Installation Structure
Dual male external thread design matches standard pipe female fittings, no extra conversion connectors required, greatly simplifying on-site pipeline assembly and shortening engineering construction cycle, widely compatible with mainstream industrial pipeline systems.
3.3 Panoramic Top Observation Sight Glass
Large-diameter top-mounted sight window eliminates visual blind spots. Operators can clearly observe impeller rotation speed, fluid impurities, bubbles and flow state under any horizontal or vertical installation angle.
3.4 Ultra-Sensitive Multi-Blade Star Impeller
Specially molded star impeller responds to minimal fluid flow volume, accurately identifying low flow, pipeline dry-up and backflow risks to avoid unexpected production shutdown and costly equipment failure losses.
3.5 Dual Heavy-Duty Leak-Proof Sealing Assembly
Dual FKM fluororubber sealing rings resist chemical erosion, salt spray aging and extreme temperature fluctuations, maintaining zero leakage under long-term full-load continuous operation in chemical and offshore high-salt corrosive environments.
3.6 Compact T-Type Space-Saving Layout
Short T-shaped integrated body occupies minimal installation space, perfectly fitting built-in equipment pipelines, compact unit cabinets and confined industrial assembly layouts.
3.7 Multi-Harsh Environment Qualified Performance
Validated through rigorous salt spray aging, hot-cold alternating cycle and hydraulic burst pressure testing, reliable for year-round non-stop operation of industrial, chemical, agricultural and offshore marine projects.
3.8 Low-Maintenance Industrial Construction
No easily worn consumable components integrated; only occasional simple wiping of the sight glass surface is required, significantly reducing long-term operation and maintenance costs for large-scale engineering projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Manufacturing
Factory circulating cooling water loops, boiler auxiliary pipelines, central HVAC chilled water systems, machine tool hydraulic oil circuits; prevents pump dry-grinding and equipment cavitation damage.
Chemical & Process Engineering
Conveyance pipelines for weak acid, weak alkali and light chemical solvents, chemical intermediate circulation lines; real-time visual flow monitoring avoids pipeline blockage and material cut-off production halts.
Modern Precision Agriculture
Large-scale farm water supply mains, greenhouse nutrient solution circulation pipelines, drip & sprinkler irrigation flow inspection; guarantees uniform water distribution and prevents crop drought yield losses.
Offshore & Marine Engineering
Ship engine room cooling circulation piping, offshore platform fresh & seawater auxiliary lines, marine aquaculture water recirculation systems; anti-salt mist coating adapts to coastal and open-ocean high-salt humid environments.
Supplementary Application Fields
Industrial pure water treatment equipment, solar thermal circulation pipelines, fire protection water branch lines, general industrial fluid transfer pipelines.
5. Customized Engineering Support Service
- Material & Surface Customization: Standard carbon steel black coating, stainless steel 304/316 upgrade option for strong corrosive media
- Thread Customization: BSP, NPT, G, Rc and non-standard special external thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical oil & solvent transport
- Brand & Packaging Customization: Laser engraved customer LOGO, neutral export carton/wooden case packaging; third-party official test reports available for tender documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing procedures include hydraulic burst pressure testing, sealing leakage testing, salt spray corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be provided to support global engineering tender reviews, offshore marine project audits and chemical plant safety compliance assessments.
