1. Product Overview

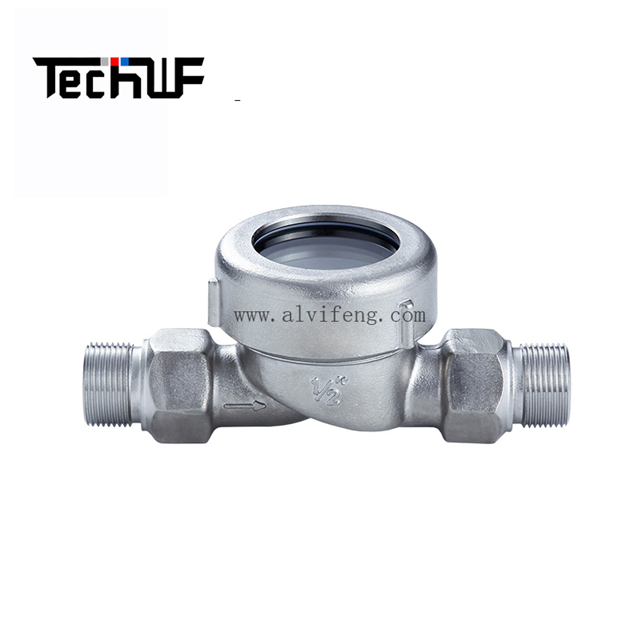

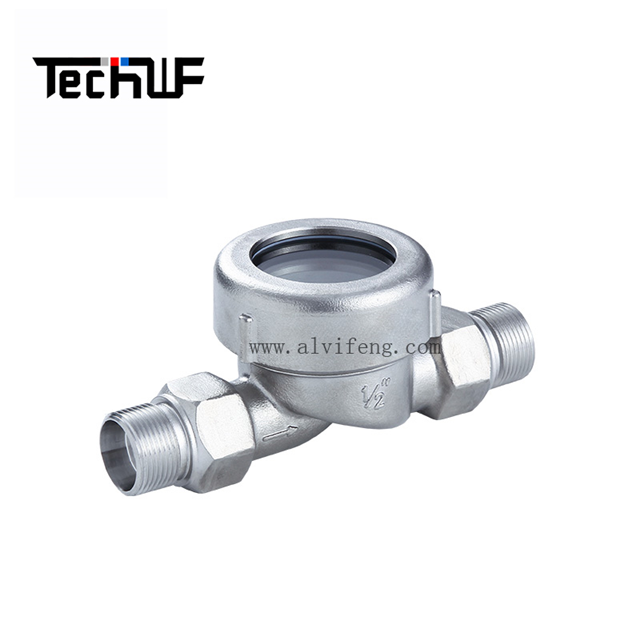

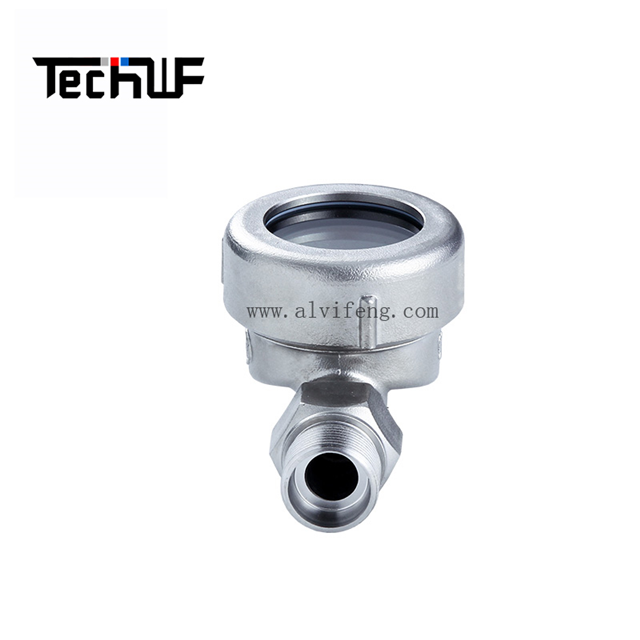

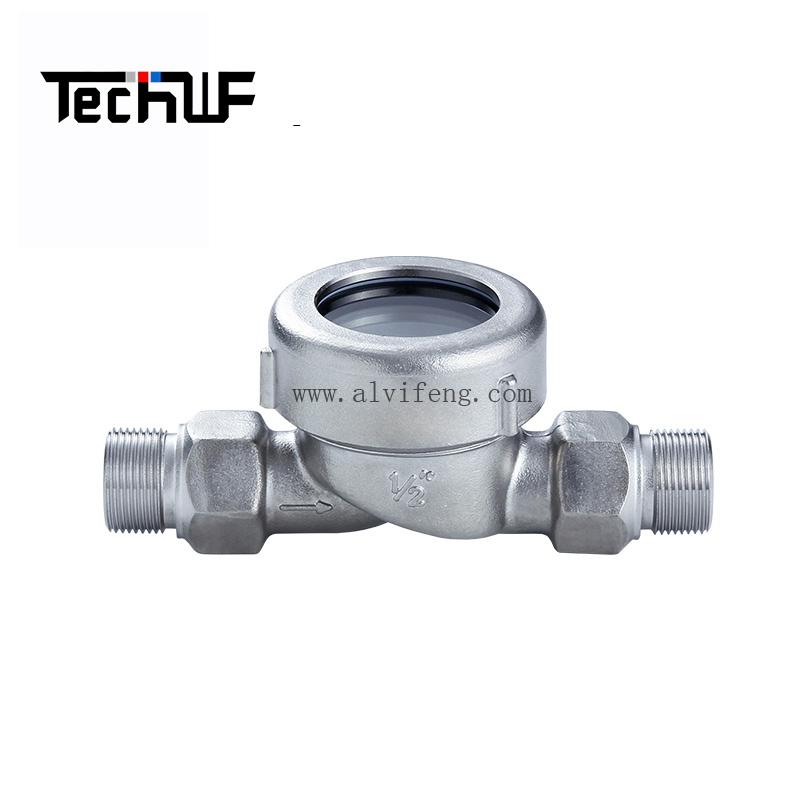

WF-FQ11-038A flat round window double male external thread single float ball sight flow indicator is a low-profile compact inline visual flow monitor independently developed by TechWF. It adopts integrated precision cast 304 stainless steel streamline curved straight body, symmetrical dual BSP/NPT male external thread ports, top low-profile flat circular thick borosilicate sight window and single high-visibility red anti-corrosion floating ball indicator. The ultra-flat top cover minimizes vertical installation height to fit confined cabinet and engine room spaces, widely deployed in precision industrial cooling, weak acid/alkali fine chemical, agricultural irrigation, HVAC heating, yacht and coastal marine small-bore threaded auxiliary pipeline systems.

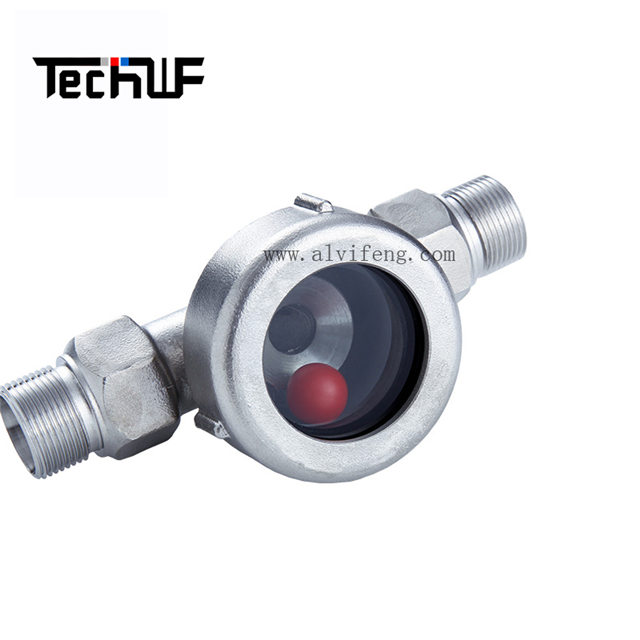

This sight glass is integrally seamless cast from 304 stainless steel streamline curved cavity, uniform male external threads on both ends support bidirectional screw-on connection with standard female threaded pipe fittings. The low-height flat circular transparent sight chamber holds a single high-contrast solid red PP float ball. When fluid flows following the molded directional arrow, medium buoyancy lifts the float ball to visibly confirm normal circulation; if flow stops or reverses, the float sinks to the bottom to alert operators of empty pipe, pipeline blockage and backflow risks. It delivers space-saving real-time flow visualization for small circulation pumps, micro chemical dosing pipelines, greenhouse branch irrigation lines and yacht auxiliary cooling loops, effectively preventing pump dry-running, cavitation and heat exchanger overheating damage.

All finished units pass hydraulic burst pressure testing, salt spray anti-corrosion aging testing, external thread sealing leakage testing and hot-cold alternating cycle validation before factory delivery, maintaining stable zero-leak continuous operation under purified water, glycol, weak acid/alkali and low-salinity seawater media worldwide.

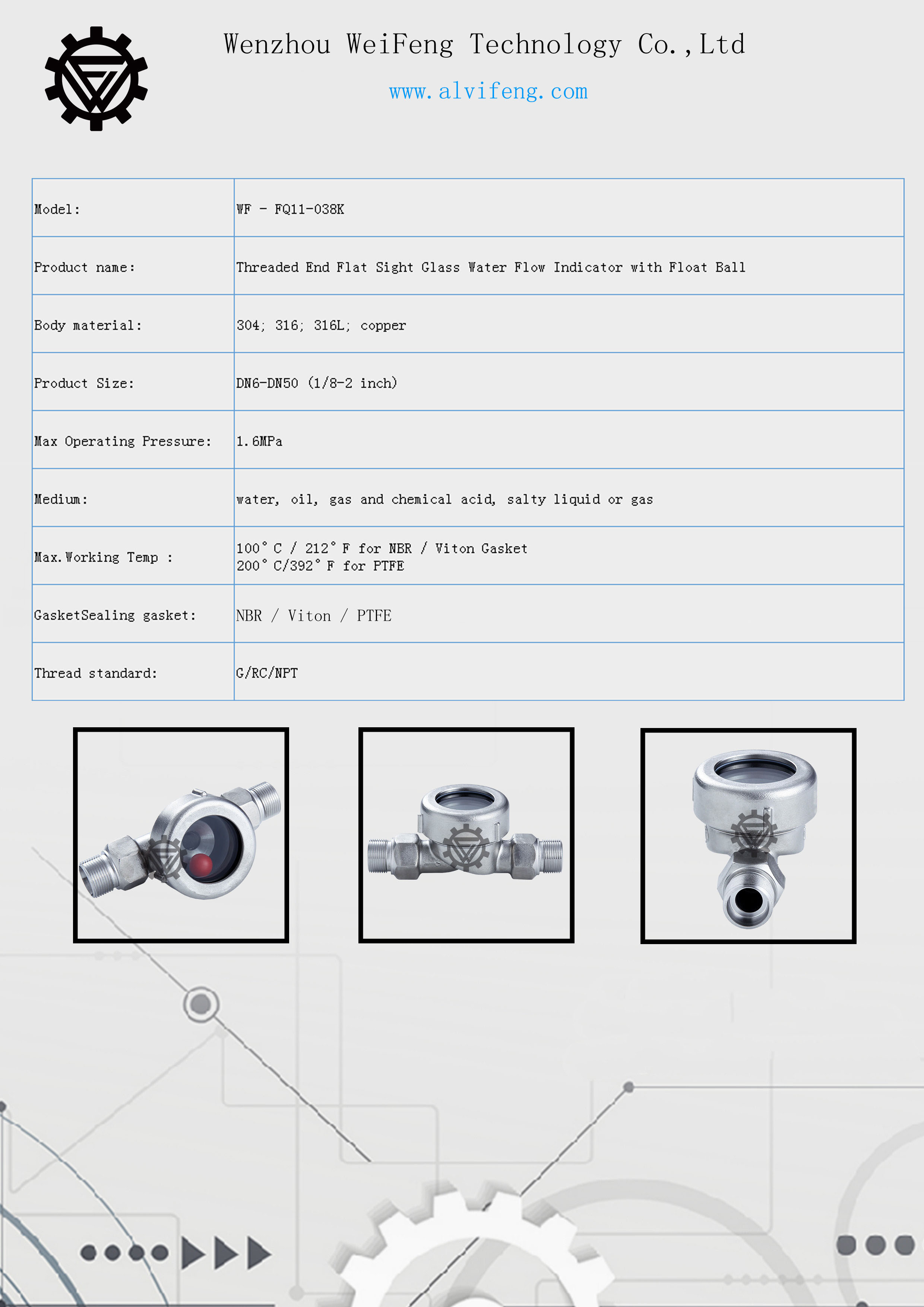

2. Premium Technical Specifications

Body Material: 304 stainless steel precision seamless casting, matte passivated anti-rust finish, compliant with food contact and marine anti-salt corrosion standards
Connection Standard: Horizontal dual symmetrical BSP / NPT male external thread, customizable sizes DN15~DN50
Sight Window: Low-profile flat circular thick high-pressure resistant borosilicate glass, 270° overhead panoramic viewing without visual blind angles
Indicator Core: Solid single red PP floating ball, lightweight, chemical inert, rises under fluid buoyancy
Sealing Assembly: Single-layer reinforced EPDM / FKM composite O-ring gaskets; EPDM for clean water & edible media, FKM for weak solvent & brine media
Nominal Working Pressure: PN16 standard grade; PN20 high-pressure reinforced marine version optional
Operating Temperature Range: -10℃ ~ +120℃
Flow Channel: Streamline curved straight full-bore inner cavity, zero extra pressure drop, smooth polished inner wall reduces limescale, crystal and fertilizer sediment adhesion
Structural Feature: Streamline curved integrated male thread body, low-profile flat circular thread lock top glass cover, fully disassemblable to extract float ball for deep flushing without pipeline disassembly

3. Core High-End Competitive Advantages

Integral Seamless Cast 304 Stainless Steel Streamline Curved Anti-Corrosion Body

One-piece seamless precision casting eliminates casting pores and internal stagnant dead zones; streamlined curved flow path optimizes fluid dynamics and lowers flow resistance. Matte passivation delivers outstanding rust resistance in humid indoor and coastal weak salt fog environments, outperforming brass sight glasses for weak acid and saltwater service conditions. Smooth seamless inner surface inhibits medium residue buildup.
Universal Symmetric Dual Male External Thread Bidirectional Installation

Identical standard male external threads on inlet and outlet enable bidirectional assembly, compatible with all mainstream female threaded pipe fittings without transition nipples, drastically shortening construction lead times for small-branch industrial threaded pipeline networks.
Ultra-Low Flat Circular Sight Window, Space-Saving Compact Design

Exclusive low-height flat round top cover greatly reduces vertical installation space, perfectly suited for narrow equipment interlayers, overhead cabinet piping and compact yacht engine room lines where dome or tall vertical sight fittings cannot be mounted. Single vivid red float ball delivers sharp contrast against clear flat glass for easy long-distance flow identification. Pure buoyancy-driven structure with no fragile springs or swing paddles achieves ultra-low failure rate and extended service life.
Zero Pressure Loss Streamline Full-Bore Unrestricted Flow Path

No protruding throttle obstacles inside the curved cavity, fully preserves original pipeline flow capacity, perfectly matching low-loss flow requirements of precision machine cooling, fine chemical dosing and agricultural branch irrigation threaded systems.
Chemical-Inert Lightweight Single Float Ball Assembly

Solid PP red float ball resists weak acid, alkali and light saltwater erosion, ultra-lightweight to respond sensitively to minimal flow fluctuations, no jamming or sticking after 24-hour long-term continuous operation.
Detachable Flat Thread Lock Cover, Tool-Free Easy Maintenance

Threaded flat top cover can be manually unscrewed without special tools, quickly remove float ball to flush accumulated limescale, fertilizer sludge and oil deposits, convenient for regular routine maintenance and online CIP cleaning.
270° Overhead Omnidirectional Observation, No View Occlusion

Flat circular transparent glass enables wide-range overhead inspection; operators can clearly observe float ball status regardless of horizontal or vertical pipeline layout without adjusting fitting installation angle.
Heavy-Duty Reinforced Thread Lock Cover High Safety Performance

Thickened circular thread lock cover evenly distributes clamping force to prevent glass rupture under pressure fluctuations; composite sealing gaskets stabilize long-term sealing performance under variable temperature industrial working conditions.

4. Global Cross-Industry Application Scenarios

Precision Industrial Machinery & HVAC Cooling

CNC precision machine tool cooling threaded pipelines, injection molding auxiliary circulation lines, building central heating small branch water pipes, solar multi-loop hot water auxiliary tubing; low-profile flat window solves overhead height restriction pain point of equipment interlayer micro pipelines.

Medium Corrosion Light Fine Chemical Industry

Weak acid/alkali solvent threaded branch pipelines, laboratory continuous reagent delivery tubing, water-based coating circulation loops; fully detachable top cover facilitates regular removal of crystalline sludge to avoid pipeline clogging and medium leakage accidents.

Large-Scale Precision Agriculture

Greenhouse nutrient solution branch irrigation threaded lines, farm fertilizer dosing auxiliary pipelines, seedling watering micro sub-lines; full cavity flushing prevents fertilizer sediment accumulation leading to uneven irrigation distribution.

Yacht & Coastal Light Marine Anti-Corrosion Systems

Small yacht auxiliary engine cooling threaded circulation lines, coastal aquaculture low-salinity water auxiliary piping, onshore oil field light cooling water sub-loops; 304 stainless steel passivation layer withstands ocean salt fog splash erosion.

Supplementary Auxiliary Fields

Industrial pure water pretreatment small branch pipelines, fire protection micro clean water threaded lines, compressor & hydraulic equipment auxiliary cooling circulation tubing.

5. Customized Engineering Support Service

Material Customization: Standard 304 stainless steel, upgrade to 316 / 316L marine high anti-corrosion sanitary grade
Thread Standard Customization: Custom BSPP, BSPT, NPT male external thread specifications and pressure class
Pressure Grade Customization: PN16 standard, PN20 high-pressure reinforced variant
Sealing Material Matching: Food-grade EPDM for water & edible media, FKM fluororubber upgrade for weak acid/alkali organic solvent transportation
Brand & Packaging Customization: Laser engraved customer LOGO on streamline curved body, neutral anti-collision export wooden case packaging; complete material & pressure test certificates provided for tender documentation
Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 non-standard threaded sizes available

6. Factory Premium Quality Control Standards

All WF-FQ11 series flat round window male thread float ball sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing items include hydraulic burst pressure test, dual external thread uniform compression sealing leakage test, salt spray long-cycle anti-corrosion aging test, float ball low-flow sensitivity test and cold-hot alternating cycle validation.

Complete stainless steel material certification, sanitary inspection reports and full pressure vessel test packages can be supplied to support global machinery cooling, light chemical, agricultural and coastal marine engineering tender reviews and equipment safety compliance audits.
