1. Product Overview
WF-YL11-05P cage paddle flow sight indicator is a premium heavy-duty inline visual pipeline monitoring component independently engineered by TechWF, designed for vertical and horizontal straight pipeline installation across harsh industrial, chemical, agricultural and offshore marine working environments.

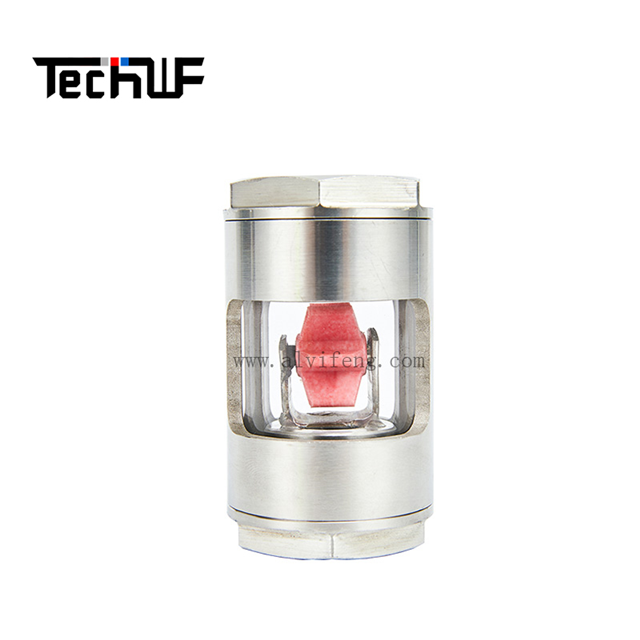

This sight glass adopts integrated CNC machined stainless steel vertical cage housing, double female internal thread ends, embedded side borosilicate observation windows, stainless steel protective cage frame and anti-corrosion red swing paddle flow indicator. It delivers multi-side real-time visual monitoring of fluid flow existence, flow rate fluctuation, pipeline emptying and reverse flow, effectively protecting circulation pumps, chemical reactors, precision irrigation equipment and offshore seawater circulation modules from dry-running, cavitation and irreversible mechanical breakdown.
Every finished unit passes complete hydraulic burst pressure testing, salt spray corrosion aging testing, multi-layer sealing leakage testing and hot-cold alternating cycle validation before factory shipment, maintaining stable long-cycle continuous operation under high-salinity seawater, weak acid, weak alkali and high-temperature fluid media for global engineering projects.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel one-piece CNC machined cage housing, thick-wall borosilicate sight glass; passivated matte finish, anti-rust, anti-scaling, seawater & mild chemical resistant, compliant with sanitary fluid standards

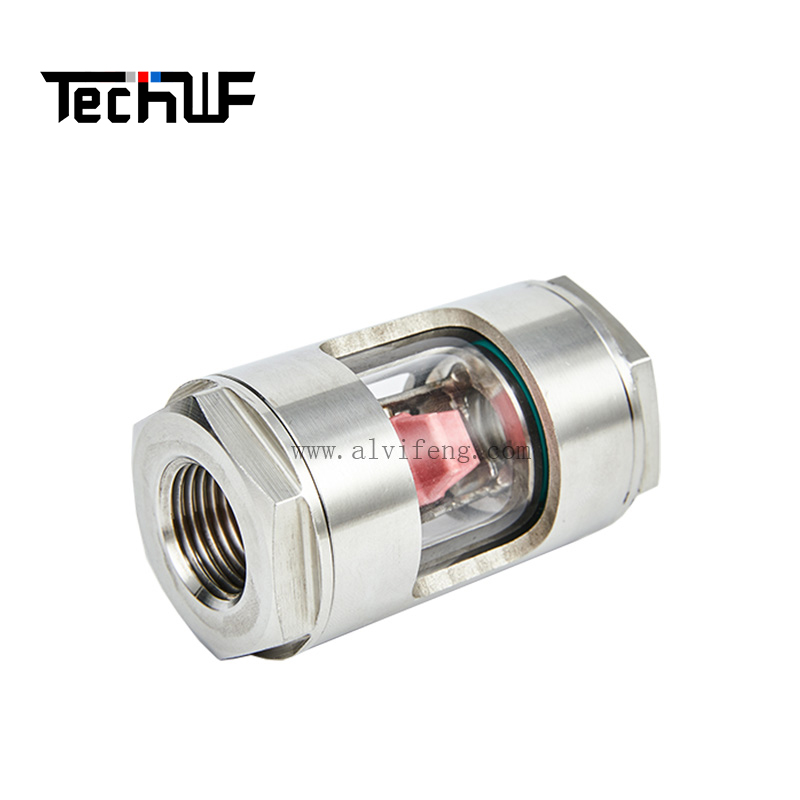

- Connection Standard: BSP / NPT female internal thread, full size range DN15–DN50 customizable

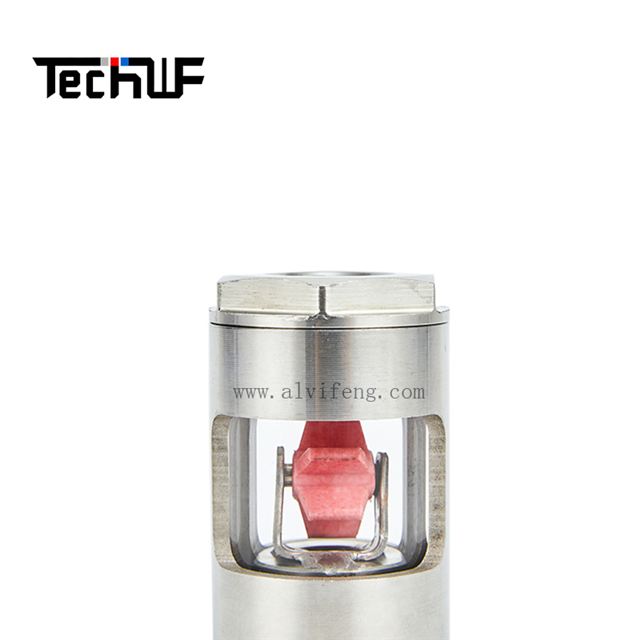

- Sight Window: Embedded side thick borosilicate glass windows with stainless steel protective cage, multi-angle visible without blind spots
- Sealing Assembly: Single & double FKM fluorine rubber composite sealing rings, resistant to acid, alkali, brine and all types of industrial lubricating oils & solvents

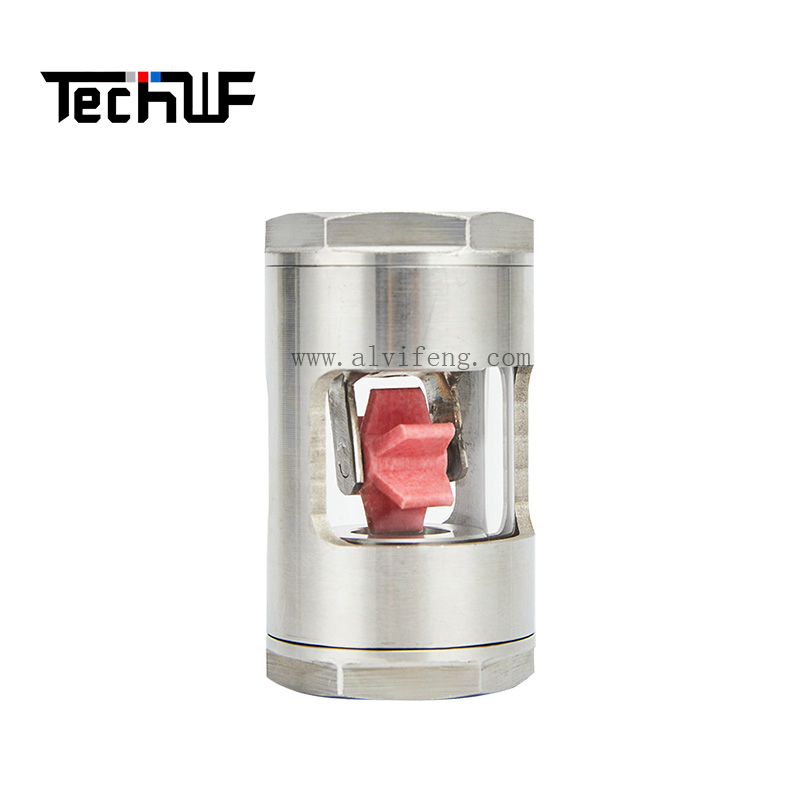

- Flow Indicator Core: Reinforced red swing paddle with stainless steel positioning bracket, sensitive to low flow and capable of bidirectional flow identification
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, no internal flow obstruction
- Structural Feature: Vertical cage split assembly, stainless steel guard frame prevents glass impact damage, fully detachable for internal cleaning and component replacement
3. Core High-End Industrial Advantages
3.1 CNC Machined Integrated Stainless Steel Cage Housing
Precision one-piece machining eliminates casting pores and internal dead zones, delivering superior pressure resistance and structural rigidity. The built-in metal protective cage fully shields the sight glass from external impact, ideal for outdoor factory, coastal and offshore high-vibration pipeline environments.
3.2 Multi-Angle Embedded Side Observation Windows
Dual side transparent sight ports enable operators to observe paddle swing, fluid impurities and bubble status from left, right and front angles, realizing multi-directional flow inspection without rotation of the whole fitting.
3.3 Zero Pressure Loss Full Straight Through Flow Path
No internal protruding throttle structures, completely retains the original pipeline design flow capacity, perfectly matching low-loss precision flow control requirements of fine chemical production, industrial precision cooling and marine circulation systems.
3.4 Bidirectional Sensitive Swing Paddle Indicator
Custom red swing paddle can swing forward and backward to distinguish forward flow, backflow and no-flow status, accurately alerting operators to pipeline dry-up, medium reverse backflow and insufficient flow risks to avoid unplanned production shutdown and costly equipment damage.
3.5 Heavy-Duty FKM Fluororubber Sealing System
High-performance fluororubber sealing ring forms reliable anti-leakage protection, resisting chemical erosion, salt spray aging and extreme temperature alternation, achieving zero leakage under long-term full-load continuous operation in chemical plants and offshore high-salt corrosive environments.
3.6 Compact Vertical Cage Inline Layout
Short cylindrical cage structure seamlessly fits straight horizontal/vertical pipelines without extra lateral space occupation, suitable for skid-mounted equipment, narrow industrial cabinets, greenhouse compact piping and confined offshore machinery assembly layouts.
3.7 Multi-Harsh Environment Verified Reliability
Validated through rigorous salt spray aging, hot-cold alternating cycle and hydraulic burst pressure tests, reliably supporting year-round non-stop operation of industrial, chemical, agricultural and offshore marine engineering projects.
3.8 Detachable Low-Maintenance Construction
All housing, glass and internal paddle assemblies can be fully disassembled for dirt cleaning and worn part replacement; no fragile consumable components, only regular simple wiping of glass surface required, drastically cutting long-term operation and maintenance expenditure for large-scale engineering projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Manufacturing
Factory circulating cooling water inline pipelines, boiler straight auxiliary piping, central HVAC chilled water main lines, machine tool hydraulic oil straight circuits; prevents pump dry-grinding and equipment cavitation breakdown.
Chemical & Process Engineering
Inline conveyance pipelines for weak acid, weak alkali and light chemical solvents, straight chemical intermediate circulation lines; multi-angle visual flow monitoring eliminates pipeline blockage and material cut-off production halts.
Modern Precision Agriculture
Large-scale farm straight trunk water supply pipelines, greenhouse inline nutrient solution circulation tubing, drip & sprinkler irrigation main flow inspection lines; guarantees uniform water distribution and prevents crop drought yield reduction.
Offshore & Marine Engineering
Ship cabin straight cooling circulation piping, offshore platform inline fresh & seawater auxiliary lines, marine aquaculture straight water recirculation systems; stainless steel anti-salt corrosion cage construction adapts to coastal and open-ocean high-salt humid high-vibration environments.
Supplementary Application Fields
Industrial pure water inline purification equipment, solar thermal straight circulation pipelines, fire protection main water supply lines, sanitary food-grade straight fluid transfer pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special internal thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical oil & solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on cage housing, neutral export carton/wooden case packaging; third-party official test reports provided for tender documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, sealing leakage testing, salt spray corrosion aging testing, paddle low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine project audits and chemical plant safety compliance assessments.
