Model No.: WF-YL11-20
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL11-20 vertical barrel impeller flow sight indicator is a premium compact inline visual pipeline monitoring component independently developed by TechWF, engineered for long-term stable fluid observation in high-temperature, high-salinity and mildly corrosive piping systems across industrial, chemical, agricultural and offshore marine global projects.

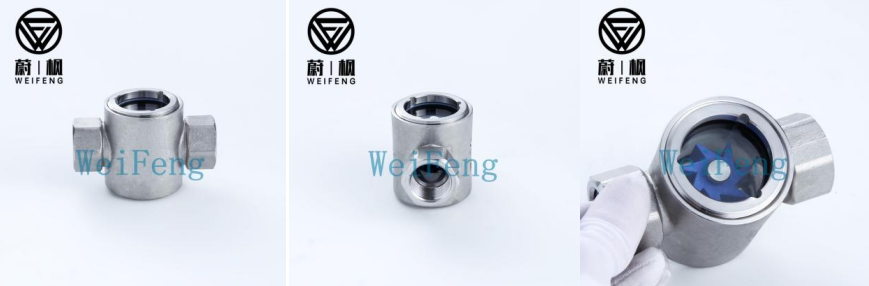

This sight glass adopts one-piece precision cast stainless steel upright cylindrical barrel body, dual female internal thread inlet and outlet ports, a large top-mounted thick borosilicate panoramic sight window and high-sensitivity blue star multi-blade anti-corrosion impeller. It enables real-time intuitive visual detection of fluid flow velocity, pipeline clogging, medium cut-off and reverse flow, fully protecting circulation pumps, chemical reactors, precision irrigation equipment and compact offshore seawater circulation modules from dry running, cavitation and irreversible mechanical breakdown.
Each finished unit undergoes complete hydraulic burst pressure testing, salt spray corrosion aging testing, double-layer sealing leakage testing and high-low temperature alternating cycle validation before factory delivery, ensuring reliable continuous operation under seawater, weak acid, weak alkali and high-temperature fluid media worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel precision casting, matte passivated anti-corrosion finish; anti-rust, anti-scaling, seawater & mild chemical resistant, compliant with sanitary fluid standards
- Connection Standard: BSP / NPT female internal thread, full size range DN15–DN50 customizable
- Sight Window: Thick-wall pressure-resistant borosilicate round glass, 270° ultra-wide top panoramic viewing with zero visual blind spots
- Sealing Assembly: Double-layer FKM fluorine rubber O-ring composite seal, resistant to acid, alkali, brine, industrial lubricants and light chemical solvents
- Flow Indicator Core: Reinforced blue star multi-lobe impeller, ultra-sensitive to micro low-volume fluid flow
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, no internal flow obstruction

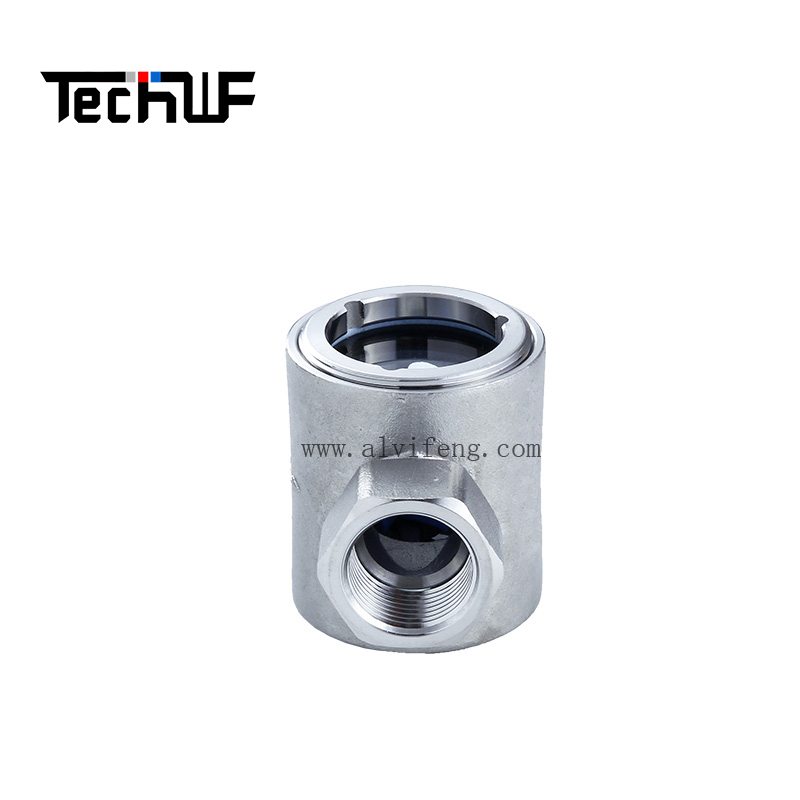

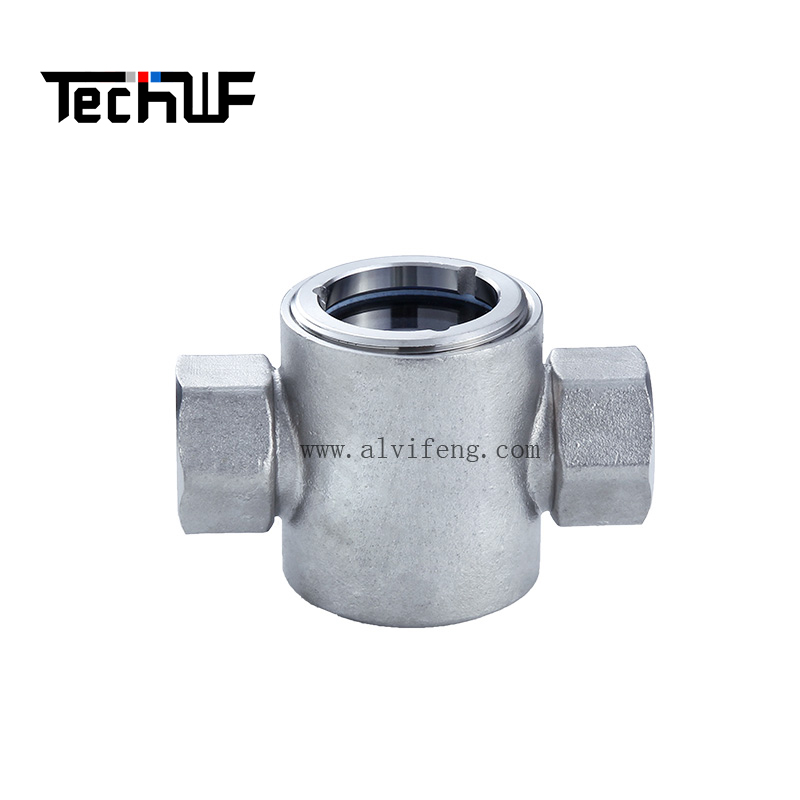

- Structural Feature: Vertical compact barrel shape with dual female thread ends, easy direct connection to standard male pipe fittings without extra conversion adapters
3. Core High-End Industrial Advantages
3.1 Integrated Precision Cast Vertical Barrel Stainless Steel Body
One-piece stainless steel casting eliminates internal stagnant dead zones and casting pores, delivering outstanding anti-corrosion and anti-fouling performance. It meets strict sanitary standards for food processing, pharmaceutical production and offshore seawater pipeline systems, extending service life under long-term corrosive fluid exposure.
3.2 Dual Female Internal Thread Quick Installation Design
Dual female thread terminals easily connect to standard male threaded pipe fittings, eliminating extra transition joints and welding work. This design greatly shortens on-site pipeline assembly cycles and maintains wide compatibility with mainstream industrial, agricultural and marine standard piping systems.
3.3 270° Panoramic Top Sight Window
Large raised circular borosilicate observation window removes all viewing blind spots. Operators can clearly observe impeller rotation speed, suspended fluid impurities, bubbles and full flow state from any vertical or horizontal installation angle, offering superior visibility compared to flat-top sight indicators.
3.4 Zero Pressure Loss Full Straight Through Flow Path
No internal protruding throttle structures generate additional pressure loss; the original pipeline design flow capacity is fully retained, perfectly matching precise low-loss flow control demands of fine chemical manufacturing, industrial precision cooling and marine compact circulation systems.

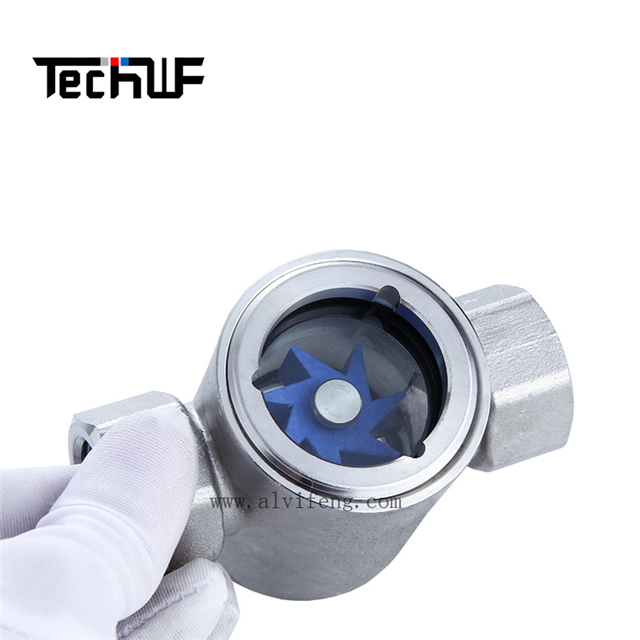

3.5 Ultra-Sensitive Blue Star Multi-Blade Impeller
Custom molded star multi-lobe impeller responds to minimal fluid flow volume, accurately identifying low flow, pipeline dry-up and backflow risks to avoid unplanned production shutdown and costly equipment breakdown losses.
3.6 Dual Heavy-Duty FKM Fluororubber Sealing System
Two independent fluororubber sealing rings form double anti-leakage protection, resisting chemical erosion, salt spray aging and extreme temperature fluctuations, maintaining zero leakage under long-term full-load continuous operation in chemical plants and offshore high-salt corrosive environments.
3.7 Space-Saving Vertical Compact Layout
Slender upright barrel structure occupies minimal horizontal installation space, ideal for built-in equipment compact piping, narrow unit cabinets, greenhouse confined irrigation pipelines and compact offshore machinery assembly layouts.
3.8 Low-Maintenance Industrial Construction
No fragile consumable spare parts integrated; only occasional simple wiping of the sight glass surface is required, drastically cutting long-term operation and maintenance expenditure for large-scale industrial, agricultural and marine engineering projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Manufacturing
Factory circulating cooling water inline pipelines, boiler auxiliary branch piping, central HVAC chilled water main lines, machine tool miniature hydraulic oil circuits; prevents pump dry-grinding and equipment cavitation breakdown.
Chemical & Process Engineering
Inline conveyance pipelines for weak acid, weak alkali and light chemical solvents, straight chemical intermediate circulation lines; real-time full visual flow monitoring eliminates pipeline blockage and material cut-off production halts.
Modern Precision Agriculture
Large-scale farm straight trunk water supply pipelines, greenhouse inline nutrient solution circulation tubing, drip & sprinkler irrigation main flow inspection lines; guarantees uniform water distribution and prevents crop drought yield reduction.
Offshore & Marine Engineering
Ship engine room compact cooling circulation piping, offshore platform inline fresh & seawater auxiliary lines, marine aquaculture small water recirculation systems; stainless steel anti-salt corrosion construction adapts to coastal and open-ocean high-salt humid environments.
Supplementary Application Fields
Industrial pure water inline purification equipment, solar thermal straight circulation pipelines, fire protection water branch monitoring lines, sanitary food-grade straight fluid transfer pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special internal thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical oil & solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on barrel housing, neutral export carton/wooden case packaging; third-party official test reports provided for tender documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, dual-sealing leakage testing, salt spray corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine project audits and chemical plant safety compliance assessments.
