Model No.: WF-YL11-208
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL11-208 square split body flow sight indicator is a heavy-duty fully disassemblable stainless steel inline fluid visual monitoring fitting independently engineered by TechWF, optimized for high-pressure, viscous, slightly corrosive long-cycle piping systems across industrial, chemical, agricultural and offshore marine global engineering projects.

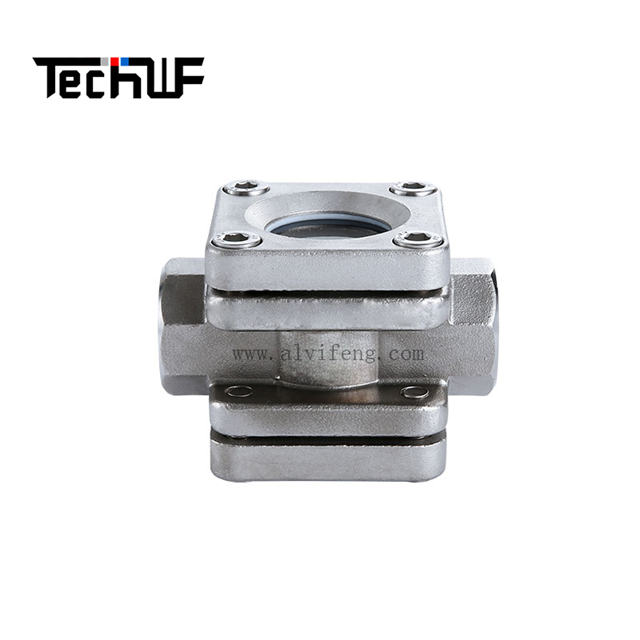

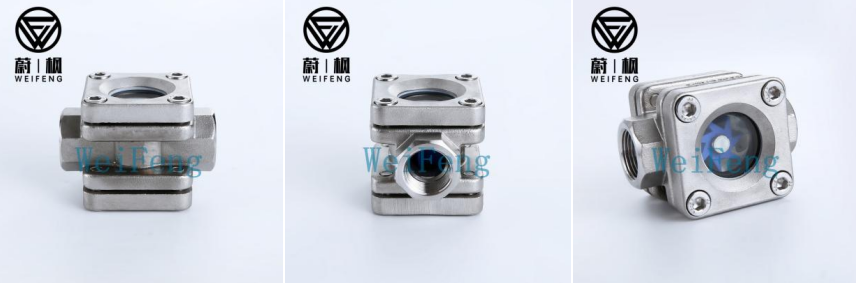

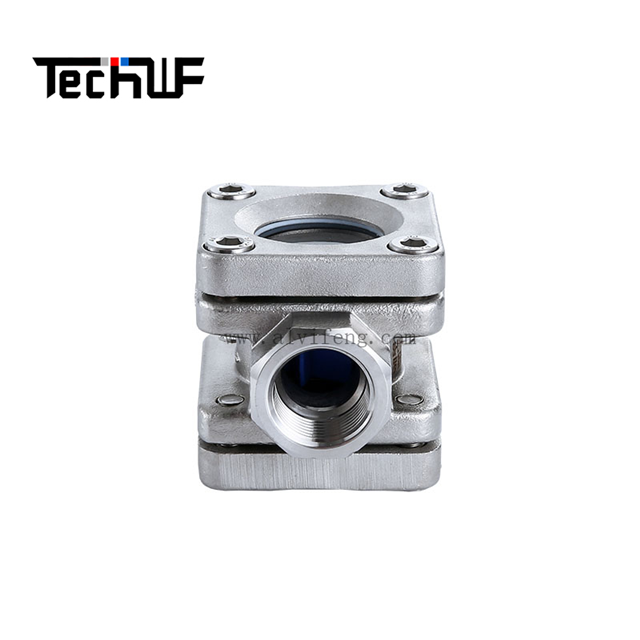

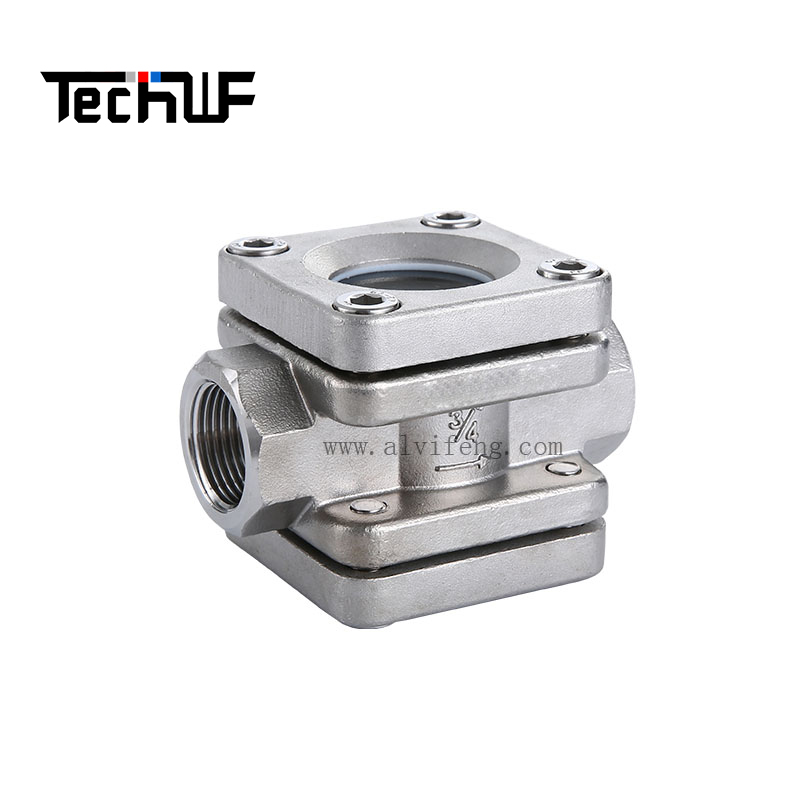

This sight glass adopts precision cast stainless steel square split flange body locked by four hexagonal bolts, symmetrical dual female internal thread inlet/outlet ports, a square-framed thick circular top borosilicate sight window and high-visibility blue star anti-corrosion impeller. Its modular split construction enables full disassembly without pipeline cutting for deep cleaning of sludge, crystal deposits and viscous medium residues. It delivers real-time top-down full-angle visual inspection of fluid flow velocity, pipeline clogging, medium cut-off and reverse flow, fully protecting large circulation pumps, industrial chemical reactors, agricultural main irrigation units and offshore seawater circulation systems from dry-running, cavitation and irreversible mechanical failure.
Every finished unit passes strict hydraulic burst pressure testing, salt spray corrosion aging testing, four-bolt uniform compression sealing leakage testing and hot-cold alternating temperature cycle verification before factory delivery, delivering stable zero-leak continuous operation under seawater, weak acid/alkali, high-viscosity slurry and high-temperature fluid media worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel precision casting, matte passivated anti-corrosion finish; anti-rust, anti-scaling, seawater & mild chemical resistant, compliant with heavy industrial and sanitary fluid standards
- Connection Standard: BSP / NPT female internal thread, complete size range DN15–DN50 fully customizable
- Sight Window: Thick-wall high-pressure resistant borosilicate round sight glass fixed within square flange, 270° panoramic full viewing without blind spots
- Fastening Structure: Four symmetric hexagonal stainless steel bolts + square upper clamping flange, evenly distributed compression force to avoid local glass stress cracking under pressure fluctuation
- Sealing Assembly: Single/double-layer FKM fluororubber composite O-ring seal, resistant to acid, alkali, brine, industrial oils and low-viscosity chemical slurries
- Flow Indicator Core: Reinforced blue star multi-lobe impeller, ultra-sensitive to micro low flow for early flow loss warning
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, no internal dead zones for sediment accumulation
- Structural Feature: Square two-piece split body locked by four side bolts, fully openable without pipeline disconnection for impeller replacement and thorough cavity cleaning
3. Core High-End Industrial Advantages
3.1 Precision Cast Square Split Stainless Steel Body
Integral stainless steel square casting eliminates casting pores and internal stagnant dead zones, with smooth inner walls reducing medium adhesion and sediment buildup. Thickened square flange body provides outstanding shock and pressure resistance, suitable for heavy-duty factory, coastal vibration and offshore platform piping environments. Square outline enables neat arrangement in parallel pipeline racks.
3.2 Four Hexagonal Bolt Symmetrical Uniform Clamping Seal
Four symmetrical hexagonal bolts evenly disperse clamping pressure on the sight window and composite seal, eliminating partial stress concentration that causes glass breakage under frequent pressure swings. Maintains reliable leak-proof performance for years of continuous operation in chemical and marine piping systems.
3.3 Fully Detachable Split Maintenance Design
Two-piece square housing can be fully disassembled after removing four side bolts without cutting pipelines. Technicians can completely extract the impeller and thoroughly clean corrosive sludge, crystal sediment and scale inside the cavity, solving the blockage maintenance difficulty of integrated sight glasses for dirty viscous corrosive media.
3.4 Top-Down Panoramic Observation Window

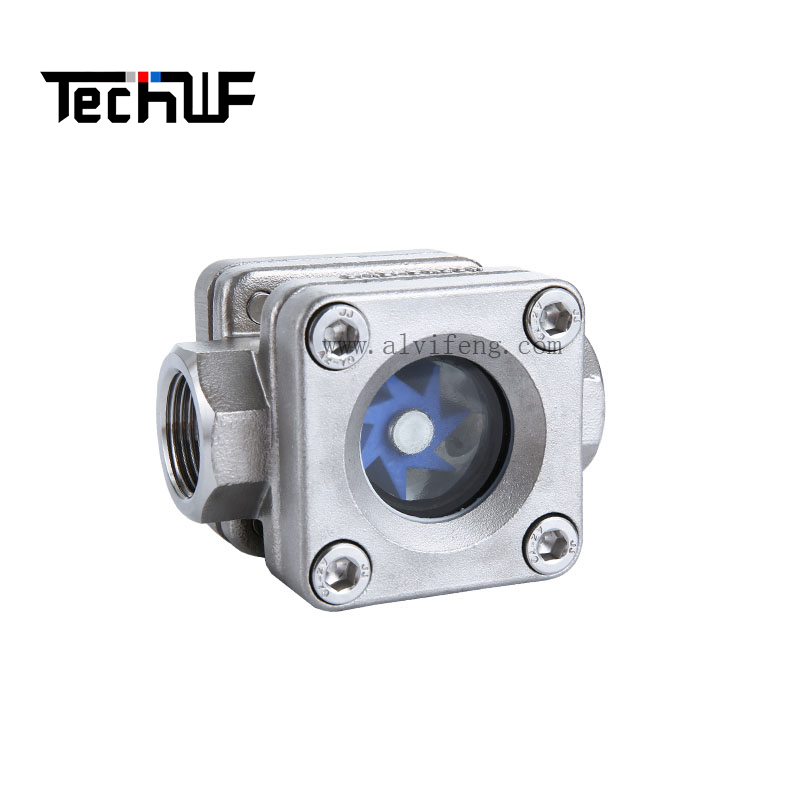

Circular borosilicate glass framed by square flange provides unobstructed top-down observation. Operators can clearly observe impeller rotation speed, suspended solid corrosive impurities and bubbles from vertical mounting angle, timely judging abnormal flow of corrosive medium.
3.5 Zero Pressure Loss Straight Full-Bore Flow Path
No internal protruding throttle structures generate extra pressure loss; original pipeline design flow capacity is fully retained, matching low-loss flow control requirements of fine chemical anti-corrosion production, acid-base waste liquid treatment and marine chemical sewage circulation systems.
3.6 High-Visibility Blue Star Multi-Blade Impeller Indicator
Custom molded blue star multi-lobe impeller maintains stable rotation performance in long-term contact with water and mild corrosive media, accurately identifying low flow, pipeline dry-up and backflow risks to avoid unplanned corrosive medium leakage and production shutdown losses.
3.7 Heavy-Duty FKM Composite Anti-Corrosion Sealing System
Fluororubber composite seal combines elasticity and chemical resistance, resisting long-term erosion of corrosive solvents, brine and weak acid/alkali without swelling, aging or leakage.
3.8 Low-Maintenance Modular Split Construction
All internal components are fully accessible after bolt disassembly for deep cleaning and part replacement; no metal wetted parts to corrode, drastically cutting maintenance labor and replacement costs for heavy industrial, chemical and marine engineering projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Manufacturing
Factory central circulating cooling water main pipelines, boiler large auxiliary branch piping, central HVAC chilled water trunk lines, machine tool large hydraulic oil circuits; split disassembly design facilitates regular cooling sludge cleaning to avoid pump dry-grinding and heat exchanger cavitation failure. Square shape fits neatly in standardized pipeline rack layouts.
Chemical & Process Engineering
Conveyance pipelines for weak acid, weak alkali, light chemical solvents and low-viscosity slurries, chemical intermediate circulation main lines; four-bolt split structure enables regular crystal sludge removal to avoid pipeline blockage and corrosive medium leakage accidents.
Modern Precision Agriculture
Large-scale farm trunk water supply pipelines, greenhouse main nutrient solution circulation lines, central drip & sprinkler irrigation inspection mains; easy disassembly to clean fertilizer sediment, guarantee uniform irrigation distribution and avoid crop drought yield reduction.
Offshore & Marine Engineering
Ship engine room main cooling circulation piping, offshore platform fresh & seawater auxiliary trunk lines, marine aquaculture large water recirculation systems; stainless steel anti-salt corrosion square split construction adapts to coastal and open-ocean high-salt, humid, high-vibration environments.
Supplementary Application Fields
Industrial pure water treatment main equipment, large solar thermal circulation pipelines, fire protection main water supply lines, sanitary food-grade fluid transfer trunk pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special internal thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical oil & slurry transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on square flange cover, neutral export carton/wooden case packaging; third-party official test reports provided for tender documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, four-bolt uniform compression sealing leakage testing, salt spray corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine project audits and chemical plant safety compliance assessments.
Global Business Cooperation Contact
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
WhatsApp Business Line: +8618815068623
Official Website: www.alvifeng.com
