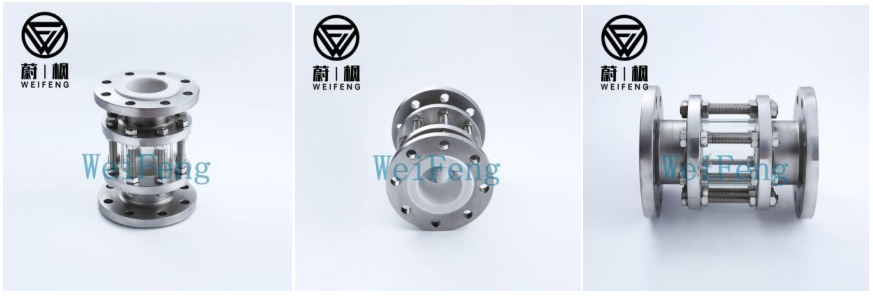

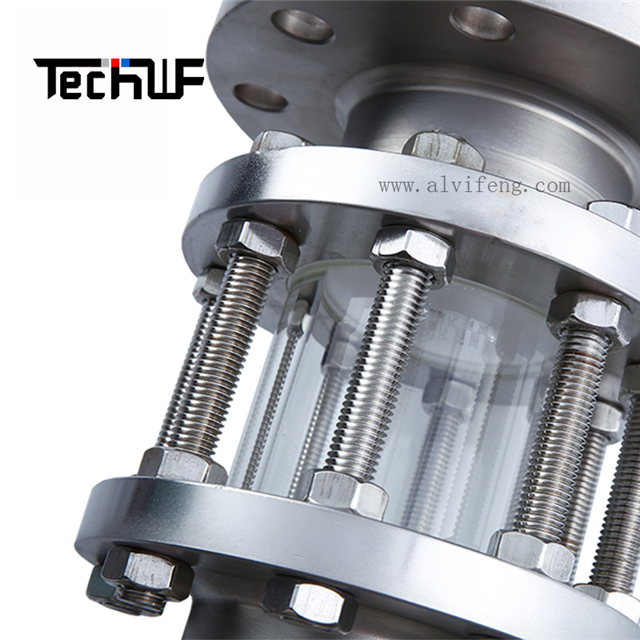

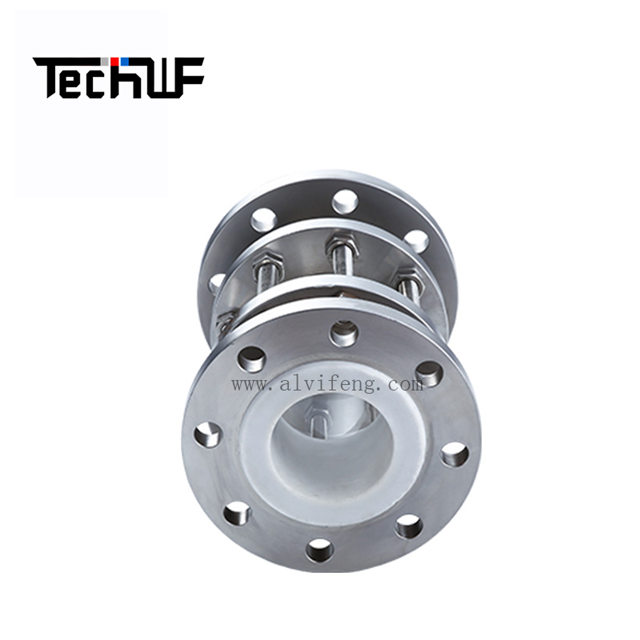

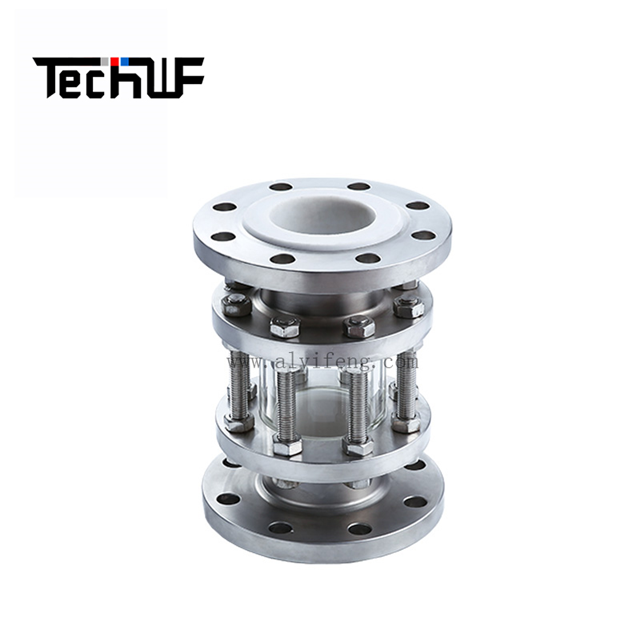

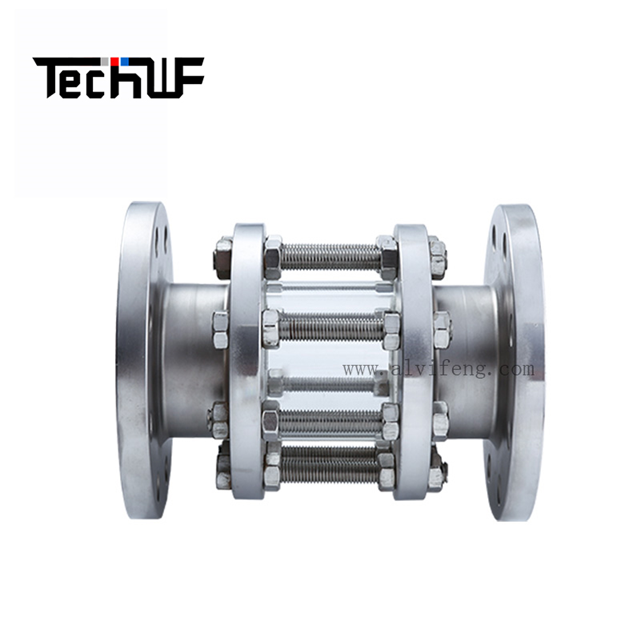

WF-ZT300

Model number: WF-ZT300
Body material: carbon steel (WCB); 304; 316; 316L
Caliber: DN6-DN400 (1/8-16 inch)
Inquiry Product PDF

Product details

Parameter

Model number: WF-ZT300

Body material: carbon steel (WCB); 304; 316; 316L
Caliber: DN6-DN400 (1/8-16 inch)
Pressure grade: 0.6/1.0/1.6Mpa
Medium: water, oil, gas and chemical acid, salty liquid or gas
Glass temperature resistance: tempered borosilicate glass: ≤200℃, quartz glass: 1000℃ allows rapid change of temperature ≤60℃
Glass pressure resistance: tempered borosilicate glass sheet ≤2.5MPa quartz glass sheet ≤10.0MPa
Sealing gasket: Butadiene rubber gasket/PTFE gasket/metal gasket/graphite gasket

Flange standard: HG/ GB/ HGJ/ JB/ ANSI/ JIS/ DIN/ BS/ NF


Inquiry

If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
