1. Product Overview

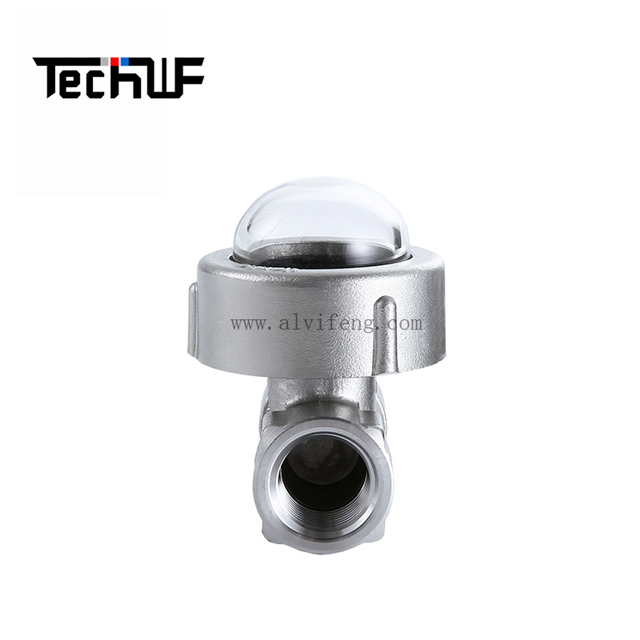

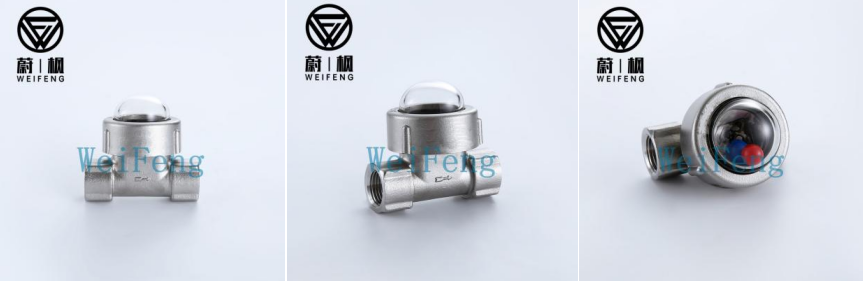

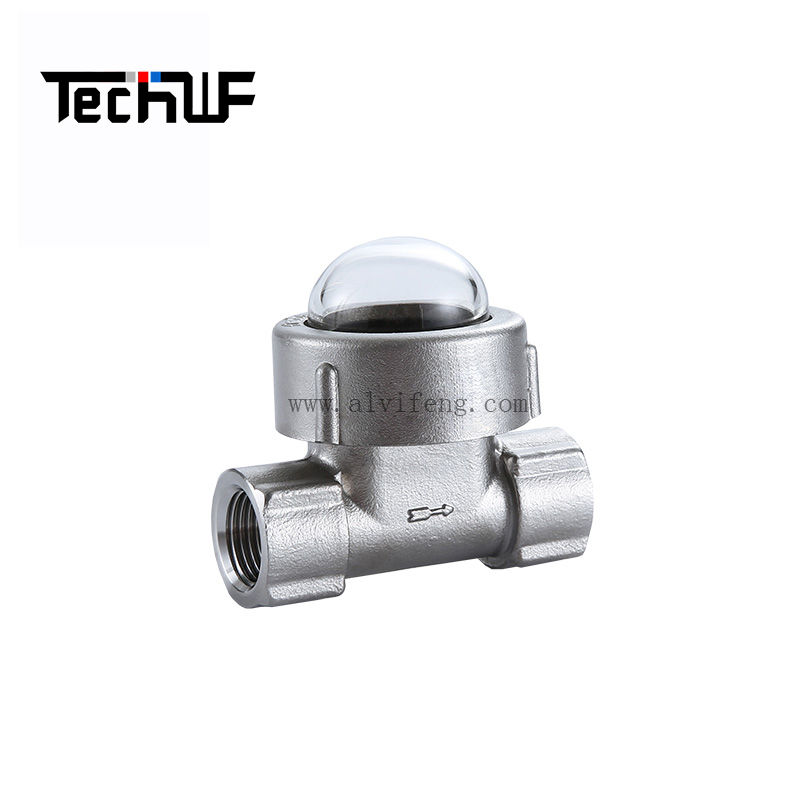

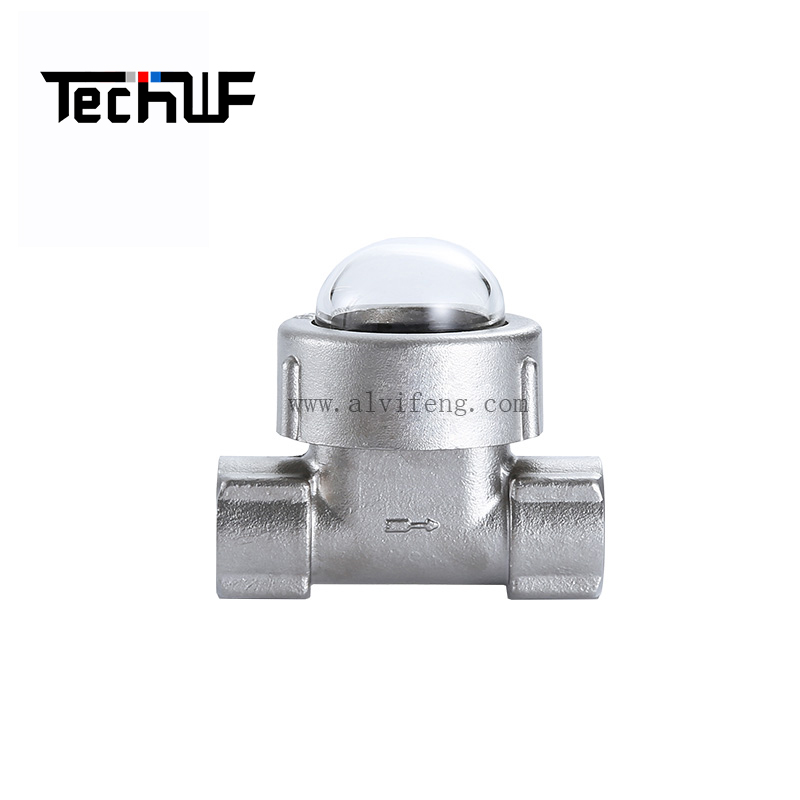

WF-FQ11-032 dome window internal thread float ball sight flow indicator is a mini compact panoramic inline visual flow monitor independently developed by TechWF. It adopts integrated precision cast 304 stainless steel horizontal straight body, symmetrical dual BSP/NPT internal thread ports, unique hemispherical dome transparent sight window and dual-color anti-corrosion floating ball indicator. The convex dome glass delivers ultra-wide 180° panoramic viewing angle, easy to observe flow status from all sides, widely applied in industrial equipment micro cooling, light neutral fine chemical, agricultural greenhouse branch irrigation, HVAC heating, yacht and coastal marine small-bore threaded auxiliary pipeline systems.

This sight glass is integrally seamless cast from 304 stainless steel straight cavity, symmetrical dual full internal threads support bidirectional screw installation. The protruding hemispherical dome borosilicate glass enlarges internal observation space, equipped with red & blue high contrast PP float balls. When medium flows following the built-in arrow mark, fluid buoyancy lifts the float balls to display normal circulation; floats sink to bottom to remind operators of pipeline cut-off, empty pipe and reverse flow. It provides economical real-time flow visual monitoring for small circulation pumps, micro dosing pipelines, greenhouse irrigation sub-lines and yacht auxiliary cooling loops, effectively preventing pump dry-running, cavitation and heat exchanger overheating damage.

All finished units pass hydraulic burst pressure testing, salt spray anti-corrosion aging testing, thread sealing leakage testing and hot-cold alternating cycle validation before factory delivery, maintaining stable zero-leak continuous operation under purified water, glycol, neutral weak solvent and low-salinity seawater media worldwide.

2. Premium Technical Specifications

Body Material: 304 stainless steel precision seamless casting, matte passivated anti-rust finish, food & light marine sanitary compliant
Connection Standard: Horizontal dual symmetrical BSP / NPT internal thread, customizable sizes DN15~DN50
Sight Window: Hemispherical dome thick high-pressure resistant borosilicate glass, 180° ultra-wide panoramic omnidirectional viewing without visual blind angles
Indicator Core: Dual-color PP floating balls, lightweight, chemical inert, rises synchronously under fluid buoyancy
Sealing Assembly: Single-layer EPDM / FKM composite O-ring gaskets; EPDM for clean water & edible media, FKM for neutral weak solvent & brine media
Nominal Working Pressure: PN16 standard grade; PN20 high-pressure reinforced version optional
Operating Temperature Range: -10℃ ~ +120℃
Flow Channel: Horizontal straight full-bore inner cavity, zero extra pressure drop, smooth polished inner wall reduces limescale, fertilizer and organic residue adhesion
Structural Feature: Compact straight integrated threaded body, snap-on dome glass cap, fully disassemblable to extract dual float balls for flushing without pipeline disassembly

3. Core High-End Competitive Advantages

Integral Seamless Cast 304 Stainless Steel Straight Anti-Corrosion Body

One-piece seamless precision casting eliminates casting pores and internal stagnant dead zones; matte passivation delivers excellent rust resistance under humid indoor and coastal weak salt fog environments, superior to brass fittings for neutral saltwater working conditions. Smooth seamless horizontal flow channel prevents medium sediment buildup.
Universal Symmetric Horizontal Dual Internal Thread Bidirectional Installation

Identical standard internal threads on both inlet and outlet support bidirectional assembly, compatible with all common threaded pipe fittings without transition nipples, greatly shortening construction time for small-branch threaded pipeline projects.
Unique Hemispherical Dome Panoramic Sight Window, Ultra-Wide View Angle

Convex hemispherical dome glass expands internal observation space, realizing 180° full lateral viewing, no dead angle even when installed close to wall or pipe supports. Distinct red & blue dual float balls form sharp visual contrast against transparent dome glass, easy to judge flow state even from long distance. No complex springs, swing paddles or dial components, ultra-low failure rate and long service life.
Zero Pressure Loss Horizontal Full-Bore Unrestricted Flow Path

No protruding throttle obstacles inside the horizontal cavity, fully retains original pipeline flow capacity, perfectly suited for low-flow micro cooling circulation pipelines of CNC machinery, heating equipment and agricultural micro dosing systems.
Chemical-Inert Lightweight Dual Float Ball Assembly

PP float balls resist neutral weak acid, alkali and light saltwater corrosion, ultra-lightweight sensitive response to tiny flow changes, no jamming or sticking after long-term 24-hour continuous operation.
Snap-On Dome Glass Cap Easy Maintenance

Thread locking dome cap can be manually unscrewed without special tools, quickly take out dual float balls to flush accumulated limescale, fertilizer sludge and oil deposits, convenient regular routine maintenance and online cleaning.
Mini Compact Horizontal Space-Saving Layout

Flat horizontal straight body design fits densely arranged overhead instrument racks, narrow cabinet internal cooling lines and compact yacht engine room tiny piping, occupies less vertical installation space than vertical T-type sight glasses.
Simple Robust Low-Failure Mechanical Structure

Only two moving float ball components, no fragile elastic or rotating parts, minimal failure points, capable of stable 24-hour non-stop industrial continuous operation.

4. Global Cross-Industry Application Scenarios

Industrial Machinery & HVAC Cooling Industry

CNC machine tool cooling threaded pipelines, injection molding machine auxiliary circulation lines, building heating small branch water pipes, solar hot water auxiliary circulation tubing; dome panoramic window solves viewing blockage issue from nearby walls and pipe brackets.

Light Neutral Fine Chemical Industry

Neutral weak solvent small threaded branch pipelines, laboratory micro reagent delivery tubing, water-based coating low-pressure circulation loops; 304 stainless steel avoids metal ion contamination of chemical raw materials.

Large-Scale Precision Agriculture

Greenhouse nutrient solution branch irrigation threaded lines, farm small fertilizer dosing auxiliary pipelines, seedling watering micro sub-lines; dual float ball reliably displays fertilizer liquid flow state.

Yacht & Coastal Light Marine Systems

Small yacht engine room cooling threaded circulation lines, coastal aquaculture low-salinity water auxiliary piping, onshore cooling water sub-loops; stainless steel passivation layer withstands weak coastal salt fog splash erosion.

Supplementary Auxiliary Fields

Industrial pure water pretreatment small branch pipelines, fire protection micro clean water threaded lines, compressor and hydraulic equipment auxiliary cooling circulation tubing.

5. Customization Support Service

Material Customization: Standard 304 stainless steel, upgrade to 316 marine high anti-corrosion sanitary grade
Thread Standard Customization: Custom BSPP, BSPT, NPT internal thread specifications
Pressure Grade Customization: PN16 standard, PN20 high-pressure reinforced variant
Sealing Material Matching: Food-grade EPDM for water & edible media, FKM fluororubber for neutral weak solvent transportation
Brand & Packaging Customization: Laser engraved customer LOGO on straight body, neutral anti-collision export wooden case packaging; complete material & pressure test certificates provided for tender documentation
Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 non-standard threaded sizes available

6. Factory Quality Control Standards

All WF-FQ11 series dome window threaded float ball sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing items include hydraulic burst pressure test, dual-thread uniform compression sealing leakage test, salt spray long-cycle anti-corrosion aging test, float ball low-flow sensitivity test and cold-hot alternating cycle validation.

Complete stainless steel material certification, sanitary inspection reports and full pressure vessel test packages can be supplied to support global machinery cooling, light chemical, agricultural and coastal marine engineering tender reviews and equipment safety compliance audits.
