Model No.: WF-YL41-011
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Petrochemical Process Engineering | Large-Scale Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL41-011 carbon steel flanged side-view flow sight indicator is a heavy-duty cost-effective inline visual flow monitor independently engineered by TechWF, developed for general industrial high-pressure, high-temperature, low-corrosion fluid trunk pipelines, widely applied in central heating, HVAC, petrochemical oil/water circulation, farm large irrigation and onshore/offshore auxiliary cooling systems.

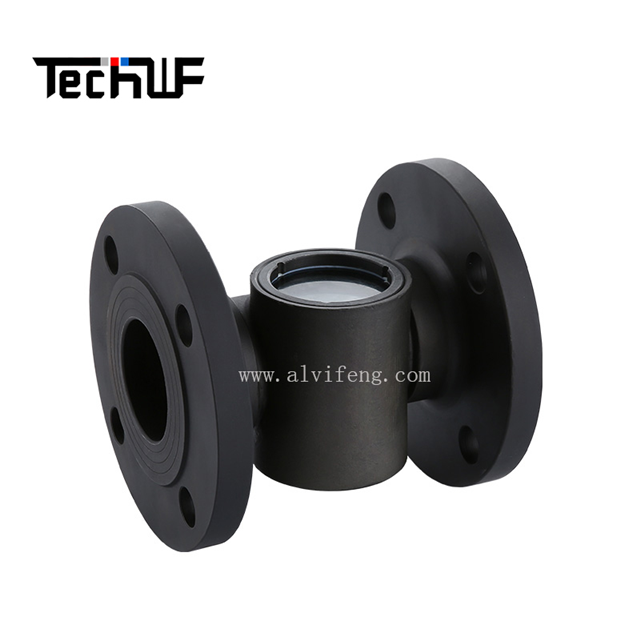

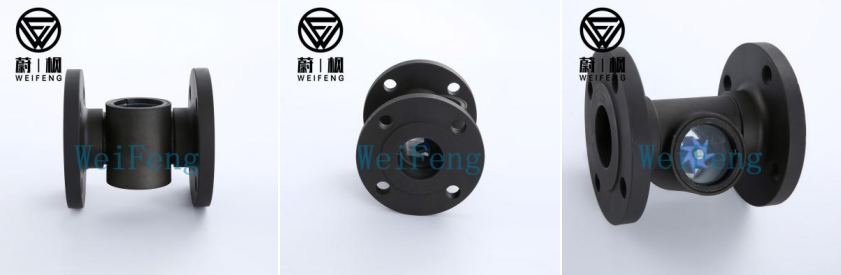

This sight glass adopts integrated hot-forged carbon steel body with anti-rust black matte coating, dual standard flanged inlet/outlet, lateral embedded thick borosilicate observation window and high-visibility blue star anti-corrosion impeller. Standard flange design enables direct bolt connection with industrial pipeline flanges without extra adapters; side horizontal observation window allows real-time visual inspection of fluid flow velocity, pipeline emptying, blockage and reverse flow without vertical space demand. It effectively protects large circulation pumps, heating boilers, petrochemical reactors and marine cooling loops from dry running, cavitation and premature mechanical breakdown.
Every finished unit undergoes full hydraulic burst pressure testing, high-temperature aging testing, flange uniform compression leakage testing and cold-hot alternating cycle validation before factory delivery, delivering stable long-cycle continuous operation under hot water, light oil, glycol and low-salinity cooling water media worldwide.
2. Premium Technical Specifications
- Body Material: Hot-forged carbon steel (WCB), black anti-rust matte paint coating, high mechanical strength, good resistance to high temperature and low corrosive fluids
- Connection Standard: GB/ANSI/DIN standard flange ends, complete size range DN25–DN200 fully customizable
- Sight Window: Thick-wall high-pressure resistant borosilicate round side glass, 180° horizontal full side viewing without blind spots
- Fastening Structure: Four uniform cross recess stainless steel screws lock side sight cover, balanced clamping force to avoid glass stress cracking under pressure fluctuation
- Sealing Assembly: Double-layer EPDM / FKM composite O-ring seal, compatible with hot water, industrial oil, glycol and low-salinity cooling water
- Flow Indicator Core: Reinforced blue star multi-lobe impeller, heat-resistant, highly sensitive to micro low flow for early flow-loss warning
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure customized version available
- Operating Temperature Range: -20℃ ~ +220℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, no internal dead zones for sediment accumulation

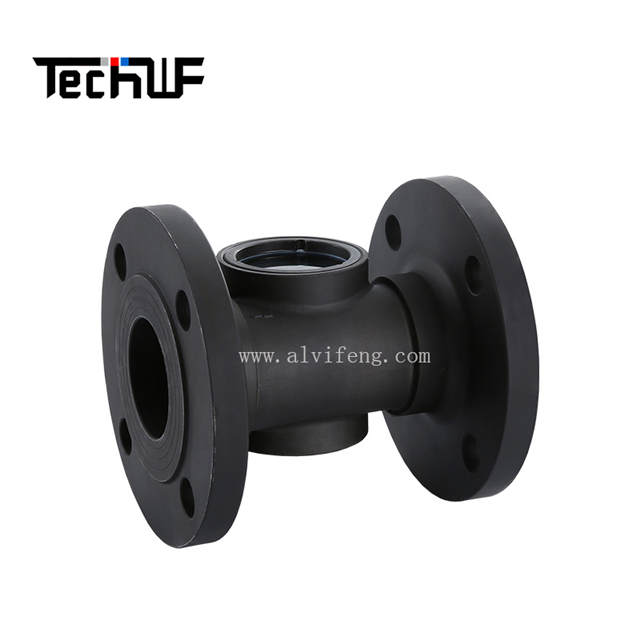

- Structural Feature: Integral T-shaped carbon steel cylinder with dual symmetrical flanges, side-mounted horizontal observation window, fully disassemblable for internal impeller cleaning and replacement without pipeline cutting
3. Core High-End Industrial Advantages
3.1 High-Strength Hot-Forged Carbon Steel Main Body
One-piece hot forging eliminates casting pores and internal dead zones, thickened wall thickness provides excellent high-temperature and water hammer impact resistance. Uniform black anti-rust coating prevents surface oxidation under long-term hot water circulation, perfectly matching heavy industrial heating and petrochemical pipeline environments.

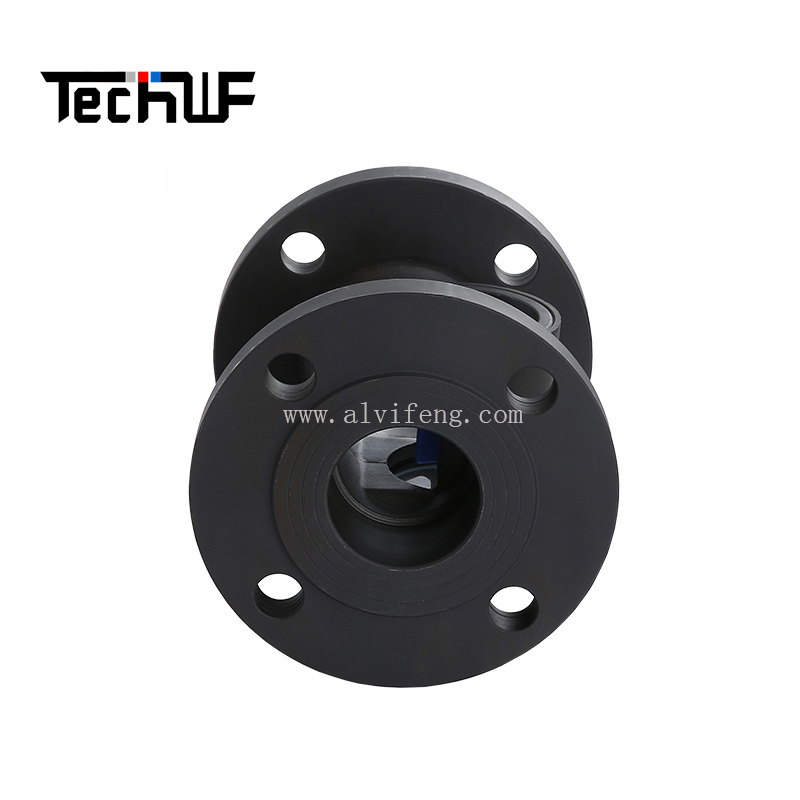

3.2 Standard Universal Flange Butt Connection
Dual symmetrical standard flanges support direct bolt assembly with all mainstream industrial pipeline flanges, eliminating transition adapters and field welding work, greatly shortening construction cycle for large-bore trunk pipeline projects.
3.3 Horizontal Side-Mounted Panoramic Observation Window
Lateral side glass enables horizontal viewing without requiring vertical clearance above pipelines, ideal for densely arranged parallel trunk lines, low-ceiling boiler rooms and compact marine engine room piping layouts where top viewing is blocked by overhead equipment.
3.4 Zero Pressure Loss Full-Bore Unrestricted Flow Path
No internal protruding throttle structures create additional pressure loss; original pipeline design flow capacity is fully retained, perfectly matching low-loss flow control demands of central heating circulation, petrochemical oil delivery and large farm irrigation mains.

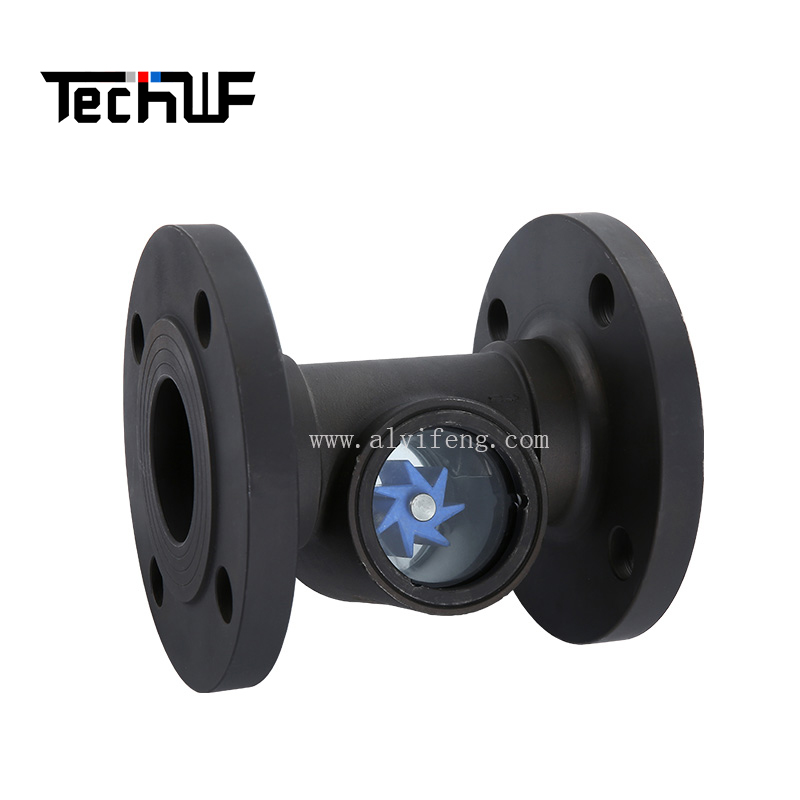

3.5 Heat-Resistant High-Visibility Blue Star Impeller
Bright blue star impeller maintains stable rotation under continuous high-temperature fluid contact, clearly indicating low flow, pipeline dry-up and backflow signals to prevent boiler burnout, pump cavitation and unplanned production shutdown losses.
3.6 Dual Heavy-Duty Composite Sealing System
Dual independent elastic sealing rings form redundant leak-proof protection, resisting aging and swelling under long-term alternating hot/cold temperature cycles, sustaining absolute zero-leak performance in heating, oil and cooling water piping systems.
3.7 Cost-Effective Heavy-Duty Compact Layout
Carbon steel material delivers outstanding pressure resistance at lower procurement cost than stainless steel for low-corrosion industrial projects; compact T-shaped flange body occupies minimal horizontal pipeline width for dense rack installation.
3.8 Fully Detachable Low-Maintenance Modular Construction
After removing four side screws, the entire sight window and impeller can be taken out for deep sludge and limescale cleaning without pipeline disassembly, solving blockage maintenance difficulties for water/oil mixed media pipelines.
4. Global Cross-Industry Application Scenarios
Heavy Industry & Central Heating
Factory central hot water circulation trunk pipelines, boiler auxiliary cooling piping, building HVAC heating & chilled water main lines, thermal power plant small oil circulation loops; side view design fits crowded boiler room layouts, easy disassembly for regular limescale cleaning to avoid pump dry-burning and heat exchanger failure.
Petrochemical & Light Chemical Engineering
Light crude oil, glycol and low-corrosion solvent conveyance pipelines, petrochemical device cooling water circulation mains; high-temperature resistant carbon steel body adapts to medium-temperature oil-water mixed circulation systems.
Large-Scale Precision Agriculture
Regional farm trunk water supply pipelines, greenhouse large nutrient solution circulation mains, centralized sprinkler irrigation inspection lines; cost-effective carbon steel flange structure suits large agricultural water treatment projects.
Onshore & Small Offshore Marine Engineering
Small ship engine room cooling water circulation piping, coastal aquaculture low-salinity water auxiliary trunk lines, onshore oil field cooling circulation pipelines; anti-rust coating resists low-salinity splash corrosion in coastal environments.
Supplementary Application Fields
Large commercial solar hot water circulation trunk pipelines, fire protection main water supply lines, industrial pure water pretreatment main equipment, food factory low-temperature clean water transfer pipelines.
5. Customized Engineering Support Service
- Material Customization: Standard WCB carbon steel, upgrade to 304/316 stainless steel for corrosive media
- Flange Standard Customization: GB, ANSI, DIN, JIS flange standards, customizable bore and bolt hole layout
- Pressure Grade Customization: Standard PN16, PN25 high-temperature reinforced variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for hot water/glycol, FKM upgrade for industrial light oil
- Brand & Packaging Customization: Laser engraved customer LOGO on carbon steel cylinder, anti-collision neutral export wooden case packaging; full pressure & temperature test certificates provided for tender documentation
- Caliber Customization: DN25, DN40, DN50, DN65, DN80, DN100 up to DN200 non-standard sizes available
6. Factory Premium Quality Control Standards
All WF-YL41 series carbon steel & stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, flange uniform compression sealing leakage testing, high-temperature long-cycle aging testing, impeller low-flow sensitivity testing and hot-cold alternating cycle validation.
Complete WCB material certification, high-temperature resistance inspection reports and pressure test documents can be supplied to support global heating, petrochemical and marine engineering tender reviews, boiler safety audits and agricultural water system compliance assessments.
