Model No.: WF-YL11-03
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL11-03 dome-style impeller flow sight indicator is a premium compact visual pipeline monitoring fitting independently developed by TechWF, engineered to handle harsh corrosive, high-temperature and high-salinity working environments across industrial, chemical, agricultural and offshore marine sectors.

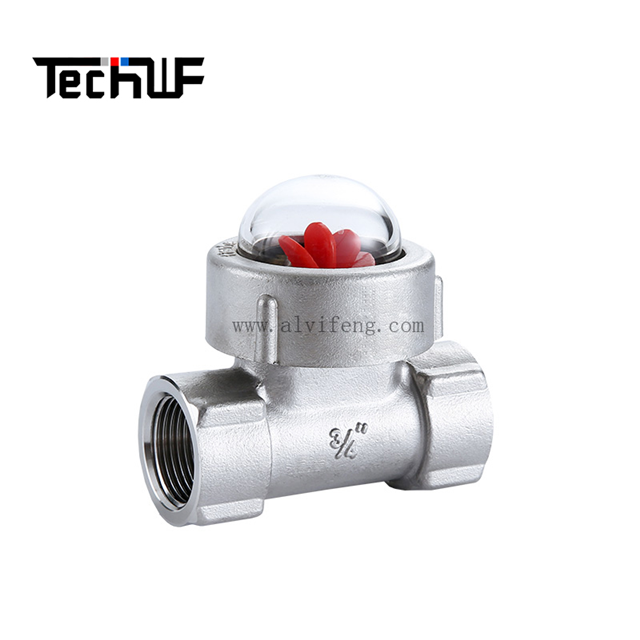

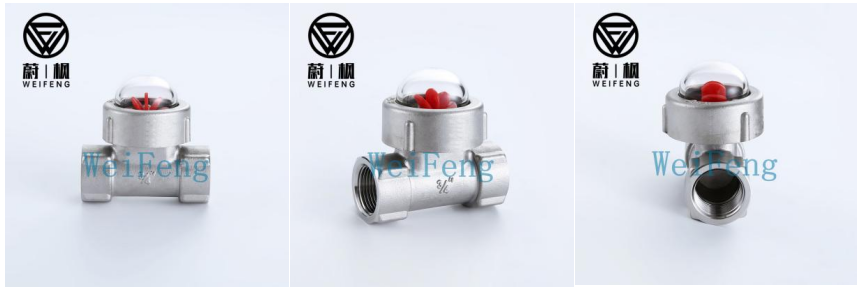

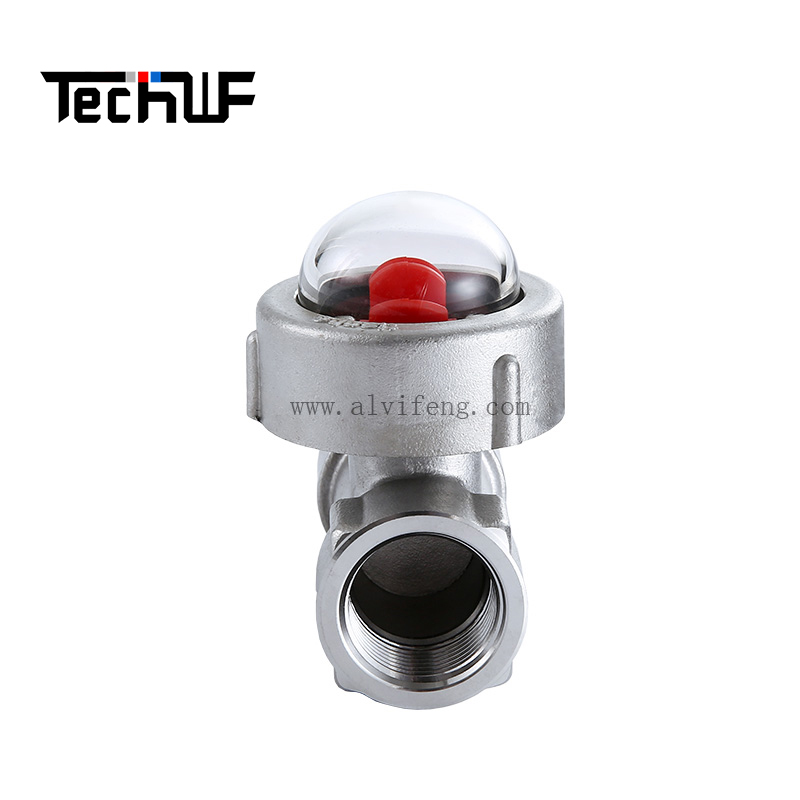

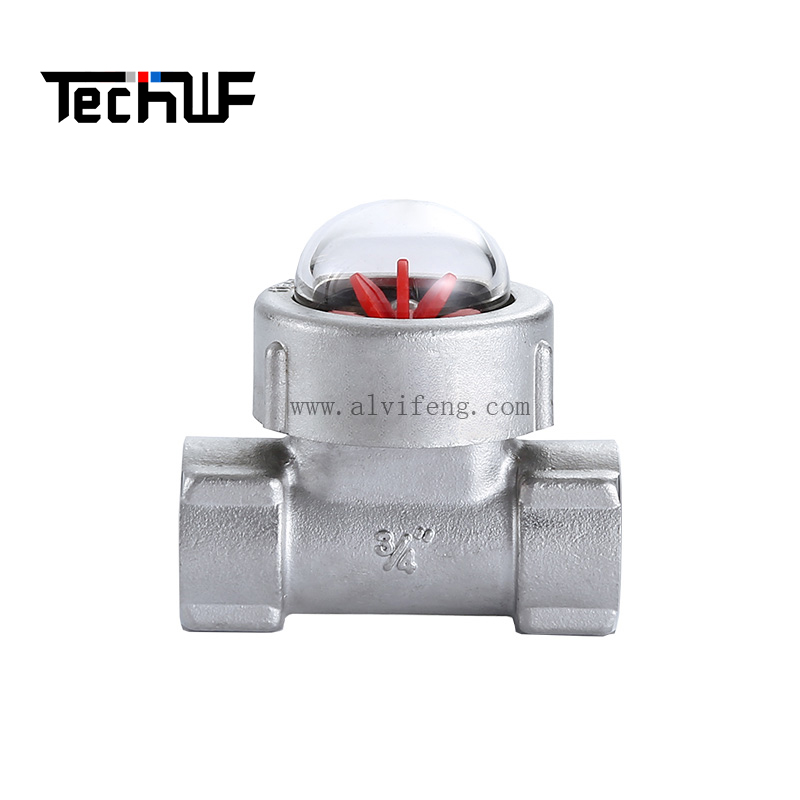

This sight glass features one-piece precision cast stainless steel T-body, dual female internal thread connections, a hemispherical panoramic dome sight window and high-sensitivity red multi-blade anti-corrosion impeller. It delivers instant visual detection of fluid flow velocity, pipeline clogging, medium cut-off and reverse flow, fully protecting circulation pumps, chemical reactors, farm irrigation units and offshore seawater circulation equipment from dry running, cavitation and irreversible mechanical damage.
Every finished unit undergoes complete hydraulic burst pressure testing, salt spray corrosion aging testing, double sealing leakage testing and cold-hot alternating cycle validation before factory shipment, guaranteeing consistent stable long-cycle continuous service under seawater, mild acid, mild alkali and high-temperature fluid media worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel (passivated matte cast finish, anti-rust, anti-scaling, seawater & mild chemical resistant, compliant with food & sanitary standards)
- Connection Standard: BSP / NPT female internal thread, standard size marking 3/4", full range DN15–DN50 customizable
- Sight Window: High-impact, pressure-resistant hemispherical polycarbonate dome, 270° ultra-wide viewing angle without visual blind spots
- Sealing Assembly: Double-layer FKM fluorine rubber O-ring composite seal, resistant to acid, alkali, brine and all common industrial lubricating oils
- Flow Indicator Core: Reinforced red multi-lobe impeller, ultra-sensitive to micro low-volume fluid flow
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero additional pressure drop with no flow obstruction
- Structural Feature: Compact T-shape body with protruding dome observation head, intuitive top-down fluid observation
3. Core High-End Industrial Advantages
3.1 Integral Precision Cast Stainless Steel T-Type Body
One-piece stainless steel casting forms smooth inner walls free of stagnant dead zones, delivering exceptional anti-corrosion and anti-fouling performance. It meets strict sanitary requirements for food processing, pharmaceutical production and offshore seawater pipeline systems, extending service life under long-term exposure to corrosive fluids.
3.2 270° Panoramic Hemispherical Dome Sight Window
Unique protruding dome transparent cover eliminates viewing blind spots. Operators can clearly observe impeller rotation speed, fluid suspended impurities, bubbles and full flow status from any installation angle, bringing superior visual visibility compared to flat-top sight glasses.
3.3 Full-Bore Unrestricted Flow Path
No internal throttle protrusions to generate extra pressure loss; the original pipeline design flow capacity is fully retained, perfectly matching precise flow control requirements of fine chemical manufacturing and sophisticated industrial process loops.
3.4 Ultra-Sensitive Multi-Lobe Red Impeller
Specially molded multi-blade impeller responds to minimal fluid flow volume, accurately identifying low flow, pipeline dry-up and backflow risks to avoid unplanned production shutdown and costly equipment breakdown losses.
3.5 Dual Heavy-Duty Leak-Proof Sealing System
Dual FKM fluororubber sealing rings withstand chemical erosion, salt spray aging and extreme temperature fluctuations, maintaining zero leakage under non-stop full-load operation in chemical plants and offshore high-salt corrosive environments.
3.6 Compact Space-Saving T-Dome Integrated Layout
Short T-shaped main body paired with small dome sight head occupies minimal installation space, ideal for compact built-in equipment piping, narrow unit cabinets and confined industrial assembly layouts.
3.7 Multi-Harsh Environment Verified Reliability
Validated through rigorous salt spray aging, hot-cold alternating cycle and hydraulic burst pressure tests, reliably supporting year-round non-stop operation of industrial, chemical, agricultural and offshore marine engineering projects.
3.8 Maintenance-Free Industrial Construction
No easily worn consumable spare parts integrated; only occasional simple wiping of the dome sight surface is required, drastically cutting long-term operation and maintenance expenditure for large-scale engineering projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Manufacturing
Factory circulating cooling water loops, boiler auxiliary branch pipelines, central HVAC chilled water systems, machine tool hydraulic oil circuits. Effectively prevents pump dry-grinding and equipment cavitation failure.
Chemical & Process Engineering
Conveyance pipelines for weak acid, weak alkali and light chemical solvents, chemical intermediate circulation lines. Real-time visual flow monitoring eliminates pipeline blockage and material cut-off production halts.
Modern Precision Agriculture
Large-scale farm trunk water supply pipelines, greenhouse nutrient solution circulation lines, drip & sprinkler irrigation flow inspection. Guarantees uniform water distribution and prevents crop drought yield reduction.
Offshore & Marine Engineering
Ship engine room cooling circulation piping, offshore platform fresh & seawater auxiliary lines, marine aquaculture water recirculation systems. Stainless steel anti-salt corrosion construction adapts to coastal and open-ocean high-salt humid environments.
Supplementary Application Fields
Industrial pure water treatment equipment, solar thermal circulation pipelines, fire protection water branch lines, sanitary food-grade fluid transfer pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical oil & solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO, neutral export carton/wooden case packaging; third-party official test reports provided for tender documentation
- Caliber Customization: DN15 (3/4"), DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, sealing leakage testing, salt spray corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine project audits and chemical plant safety compliance assessments.
