Model No.: WF-YL11-052
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview

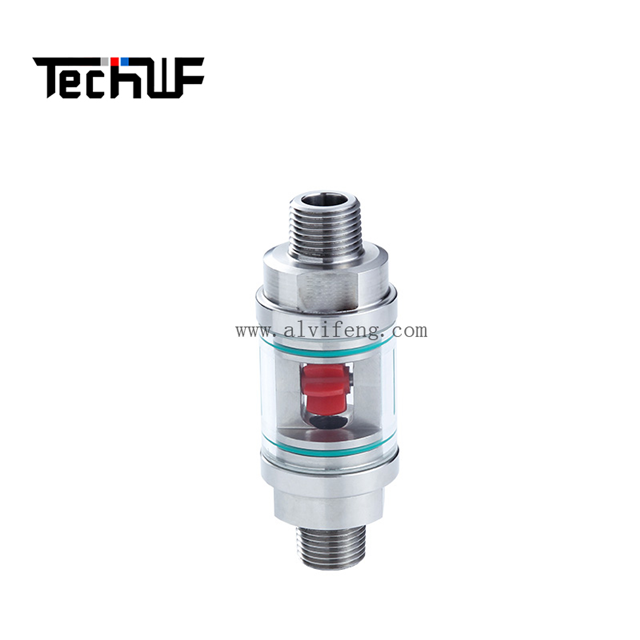

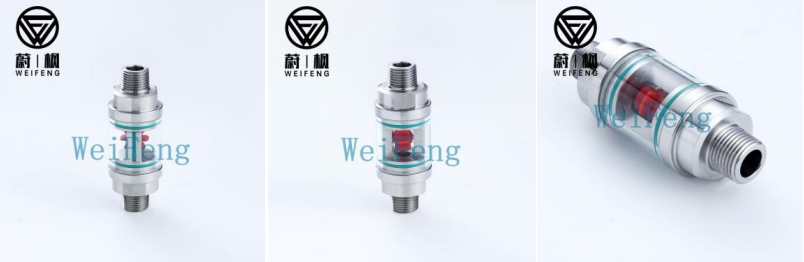

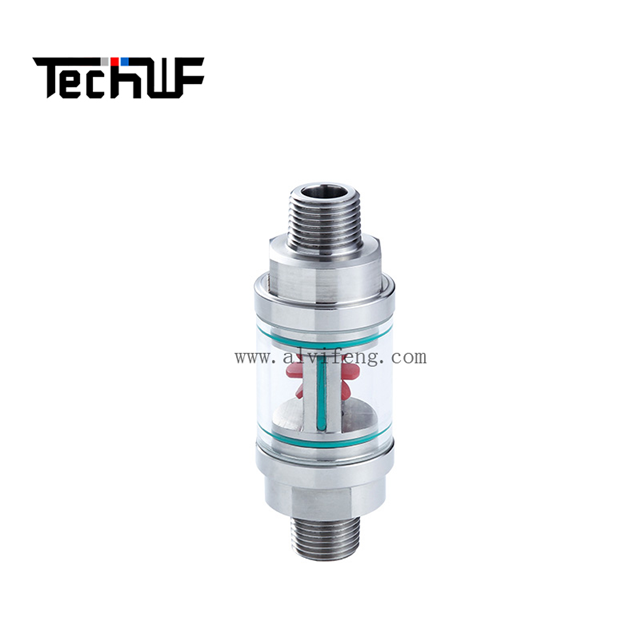

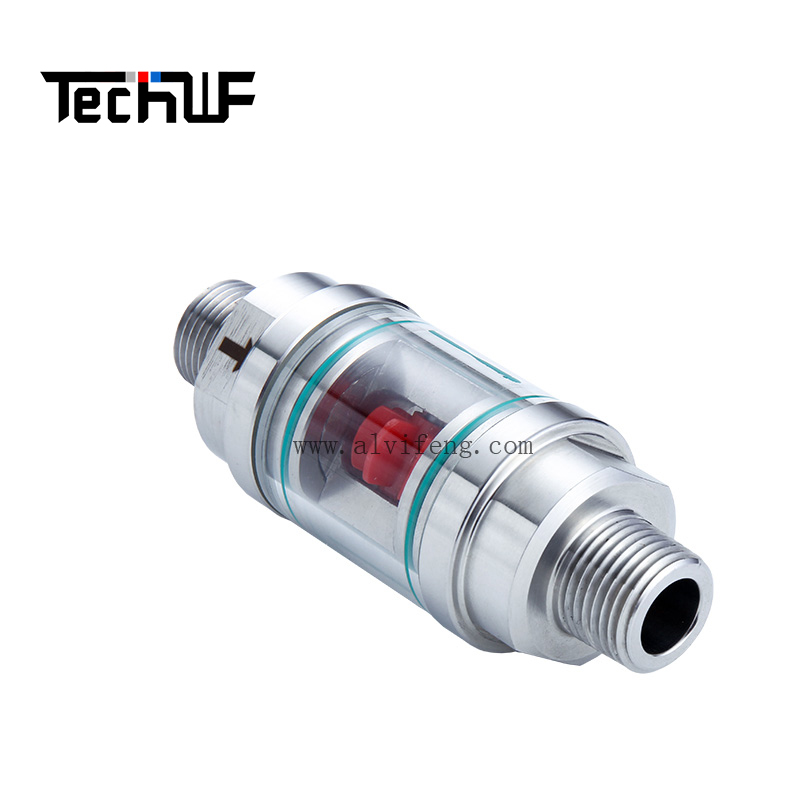

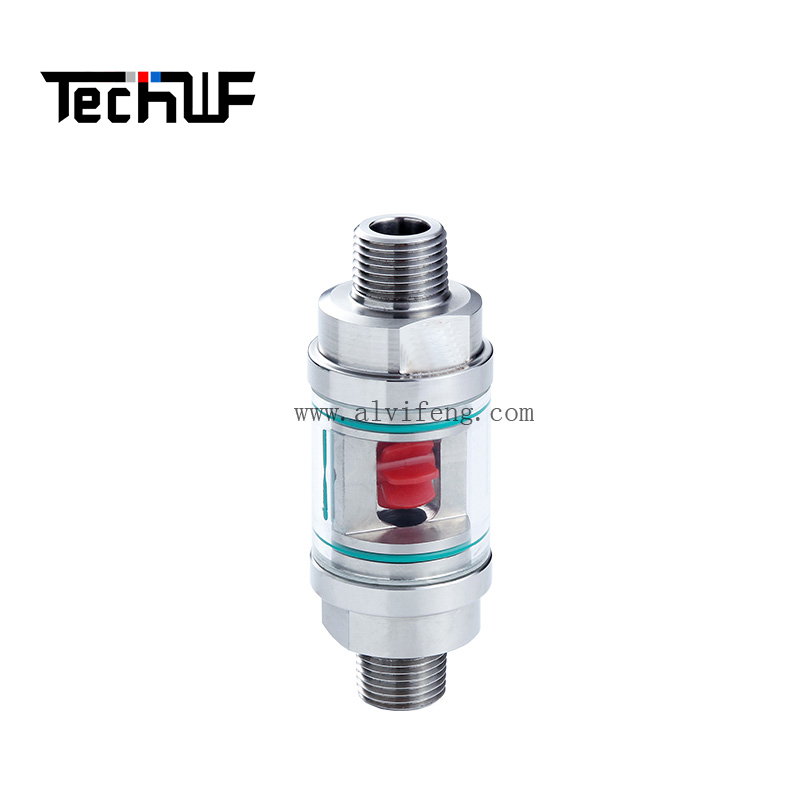

WF-YL11-052 inline tubular paddle flow sight indicator is a compact, precision-engineered stainless steel visual pipeline monitor independently developed by TechWF, optimized for small-bore straight piping in high-temperature, high-salinity and mildly corrosive fluid systems across industrial instruments, chemical labs, precision hydroponics and compact offshore marine equipment.
This sight glass features fully CNC machined stainless steel dual male external thread ends, thick transparent straight borosilicate viewing tube, double green FKM fluororubber sealing gaskets and a high-visibility red swing paddle flow indicator. A molded flow direction arrow on the hexagonal body guides error-free installation. It delivers 360° full-angle real-time visual detection of fluid flow speed, pipeline emptying, blockage and reverse flow, fully protecting miniature circulation pumps, lab reactors, precision irrigation loops and small offshore seawater circulation skids from dry-running, cavitation and permanent mechanical failure.
Every finished unit undergoes complete hydraulic burst pressure testing, salt spray corrosion aging testing, dual-sealing leakage testing and high-low temperature alternating cycle validation before factory delivery, ensuring stable long-term continuous operation under seawater, weak acid/alkali and high-temperature micro fluid media for global precision engineering projects.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel full CNC machining, matte passivated anti-corrosion finish; anti-rust, anti-scale, seawater & mild chemical resistant, meets sanitary instrument standards
- Connection Standard: BSP / NPT male external thread, full size range DN15–DN50 customizable
- Sight Window: Thick-wall high-pressure borosilicate straight tube, 360° panoramic full viewing with zero blind spots
- Sealing Assembly: Double-layer green FKM fluorine rubber composite gaskets, resistant to acid, alkali, brine, industrial oils and lab chemical solvents
- Flow Indicator Core: Reinforced red swing paddle with metal positioning frame, sensitive to micro low flow and supports bidirectional flow identification
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, no internal flow obstruction
- Structural Feature: Slim split detachable tubular assembly, dual male thread for direct pipe butt connection without conversion adapters, fully disassemblable for internal cleaning and component replacement
3. Core High-End Industrial Advantages
3.1 Precision CNC Machined Double Male Thread Joints
Fully machined stainless steel male thread terminals directly connect to standard female pipe fittings or welded instrument tubing, eliminating transition joints and thread leakage risks. The compact threaded design drastically shortens assembly time for skid-mounted equipment, lab benches and narrow offshore machinery cabinets.
3.2 360° Panoramic Straight Tubular Sight Window
Fully transparent straight glass tube enables technicians to observe paddle swing amplitude, suspended impurities and air bubbles from any radial angle, delivering unrivaled full-flow visibility compared to single-sided dome sight indicators.
3.3 Zero Pressure Loss Unrestricted Flow Path
No internal protruding throttle structures generate additional pressure loss; original pipeline flow capacity is fully retained, perfectly matching low-loss precision flow control demands of fine chemical labs, industrial precision cooling and compact marine circulation systems.
3.4 Bidirectional Sensitive Red Swing Paddle
Custom red swing paddle swings forward and backward to distinguish forward flow, backflow and zero-flow status, accurately alerting operators to pipeline dry-up, medium reverse backflow and insufficient flow risks to avoid unplanned experiment/production shutdown and costly precision equipment damage.
3.5 Dual Heavy-Duty FKM Fluororubber Sealing System
Two independent fluororubber gaskets form double anti-leakage protection, resisting chemical erosion, salt spray aging and extreme temperature fluctuations, maintaining zero leakage under long-term full-load continuous operation in chemical labs and offshore high-salt corrosive environments.
3.6 Slim Compact Inline Vertical/Horizontal Universal Layout
Slender inline tubular structure fits seamlessly into straight horizontal or vertical small-bore instrument tubing without occupying extra lateral space, ideal for compact lab benches, skid-mounted process units, greenhouse narrow hydroponic piping and confined offshore equipment layouts.
3.7 Multi-Harsh Environment Verified Durability
Validated via rigorous salt spray, temperature cycle and burst pressure testing, reliably supporting year-round non-stop operation of industrial instrument, chemical laboratory, precision agricultural and offshore marine engineering systems.
3.8 Detachable Low-Maintenance Modular Construction
All housing, glass tube and internal paddle components can be fully disassembled for dirt cleaning and worn part replacement; no fragile consumable parts, only regular simple wiping of the glass tube surface required, drastically cutting long-term operation and maintenance expenditure for precision engineering and laboratory projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Precision Instrument Manufacturing
Skid-mounted cooling oil micro instrument tubing, boiler sensor auxiliary pipelines, central HVAC precision monitoring loops, machine tool miniature hydraulic oil adjustable circuits; precisely monitor micro circulation flow and prevent micro pump dry-grinding & precision sensor cavitation breakdown.
Chemical Laboratory & Fine Process Engineering
Adjustable micro conveyance pipelines for weak acid, weak alkali and lab chemical solvents, small-volume chemical intermediate circulation regulating lines; simultaneously realize flow fine-tuning and 360° full visual flow monitoring to eliminate micro pipeline blockage and reagent cut-off experiment halts.
Modern Precision Hydroponic Agriculture
Greenhouse adjustable micro nutrient solution circulation tubing, precision drip irrigation flow regulating monitoring loops, hydroponic farm small-bore water supply adjustable pipelines; precisely control irrigation flow volume and guarantee uniform micro nutrient distribution to avoid crop nutrient drought yield losses.
Offshore & Marine Compact Instrument Engineering
Ship cabin miniature adjustable cooling circulation tubing, offshore platform lab fresh & seawater instrument regulating auxiliary lines, marine aquaculture micro water recirculation skid control modules; stainless steel anti-salt corrosion construction adapts to coastal and open-ocean high-salt humid compact equipment environments.
Supplementary Application Fields
Lab pure water purification adjustable equipment, miniature solar thermal circulation regulating tubing, fire protection micro monitoring flow control branch lines, sanitary food-grade small-bore adjustable fluid transfer instrument pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special external thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical lab oil & solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on hexagonal joints, neutral export carton/wooden case packaging; third-party official test reports provided for tender & lab audit documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, dual-sealing leakage testing, salt spray corrosion aging testing, paddle low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine instrument project audits and chemical laboratory safety compliance assessments.
Global Business Cooperation Contact
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
