Model No.: WF-YL11-033
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL11-033 brass dome impeller flow sight indicator is an economical yet premium inline visual pipeline monitoring fitting independently engineered by TechWF, designed for clean water, mild oil and low-corrosion fluid piping systems across industrial, agricultural, light chemical and general marine applications.

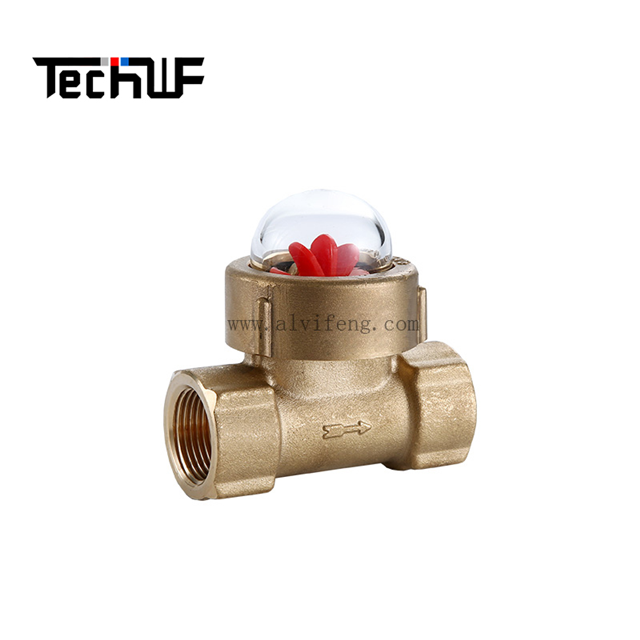

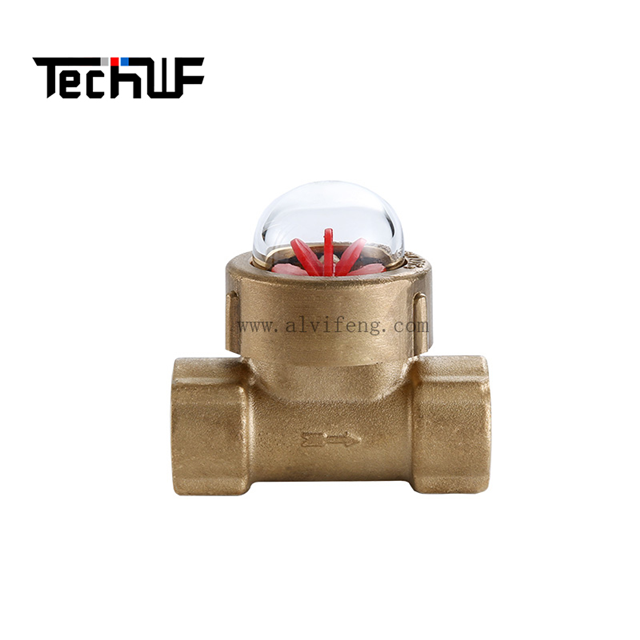

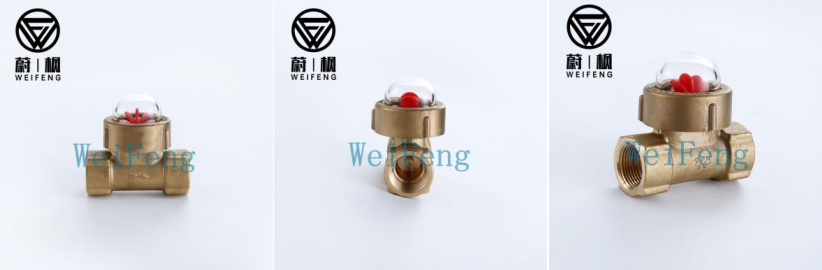

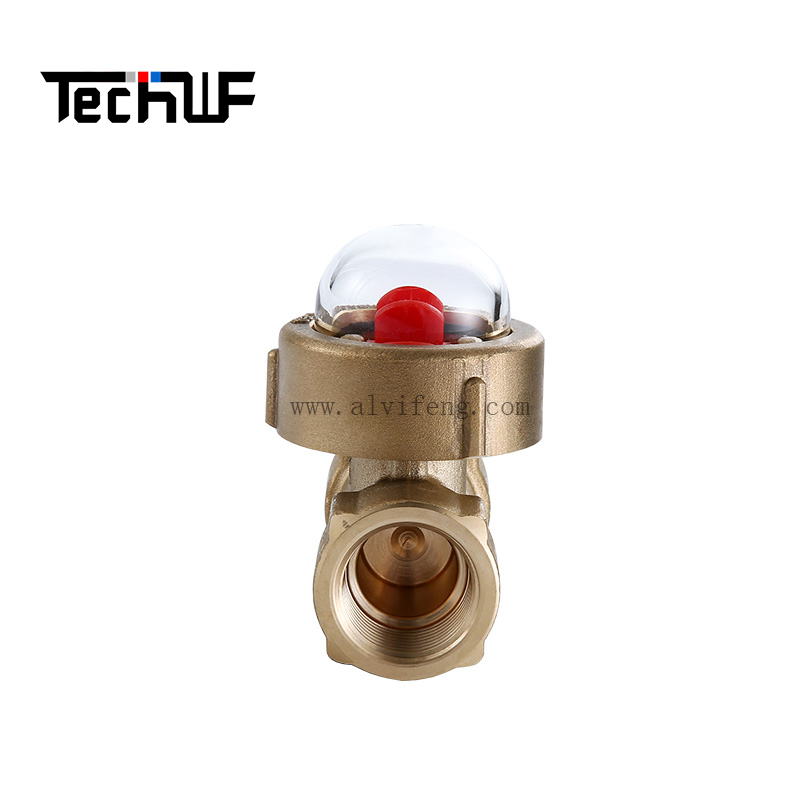

This sight glass adopts one-piece hot-forged brass T-body, dual female internal thread inlet/outlet ports, a hemispherical transparent dome observation window and high-visibility red multi-lobe anti-corrosion impeller. A molded flow direction arrow on the body guides quick, error-free installation. It delivers instant real-time visual detection of fluid flow presence, flow rate fluctuation, pipeline emptying and reverse flow, effectively safeguarding small circulation pumps, light chemical reactors, farm irrigation units and small marine cooling loops from dry running, cavitation and premature mechanical damage.
Every finished unit passes full hydraulic burst pressure testing, long-term water corrosion aging testing, multi-layer sealing leakage testing and hot-cold alternating cycle validation before factory shipment, ensuring stable leak-free continuous service under clean water, light oil and low-salinity fluid media for global general engineering projects.
2. Premium Technical Specifications
- Body Material: Hot-forged lead-free brass, anti-rust, anti-scale, excellent resistance to clean water and mild oil media, cost-effective for general fluid applications
- Connection Standard: BSP / NPT female internal thread, full size range DN15–DN50 customizable
- Sight Window: High-impact hemispherical polycarbonate dome, 270° ultra-wide panoramic viewing angle with zero visual blind spots
- Sealing Assembly: Single-layer EPDM rubber O-ring sealing gasket, compatible with clean water, glycol and light industrial oils
- Flow Indicator Core: Reinforced red multi-blade impeller, highly visible and sensitive to low-volume fluid flow
- Nominal Working Pressure: PN10 standard grade; PN16 reinforced version available upon request
- Operating Temperature Range: -10℃ ~ +110℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, no internal flow obstruction
- Structural Feature: Compact T-shaped brass housing with dome top window, dual female thread ends for seamless connection to standard male pipe fittings
3. Core High-End Industrial Advantages
3.1 Hot-Forged Lead-Free Brass Integrated T-Body
One-piece hot forging eliminates casting pores and internal dead zones, with smooth inner walls that reduce limescale buildup. Lead-free brass construction meets domestic and international drinking water sanitary standards, making it ideal for water supply, HVAC and agricultural irrigation piping. It offers natural rust resistance for long service life in freshwater environments.
3.2 Dual Female Internal Thread Universal Connection
Symmetrical double female thread terminals directly mate with standard male threaded pipe fittings, eliminating extra transition adapters and welding work. The bidirectional layout simplifies pipeline layout design and drastically shortens on-site assembly time for small-bore fluid systems.

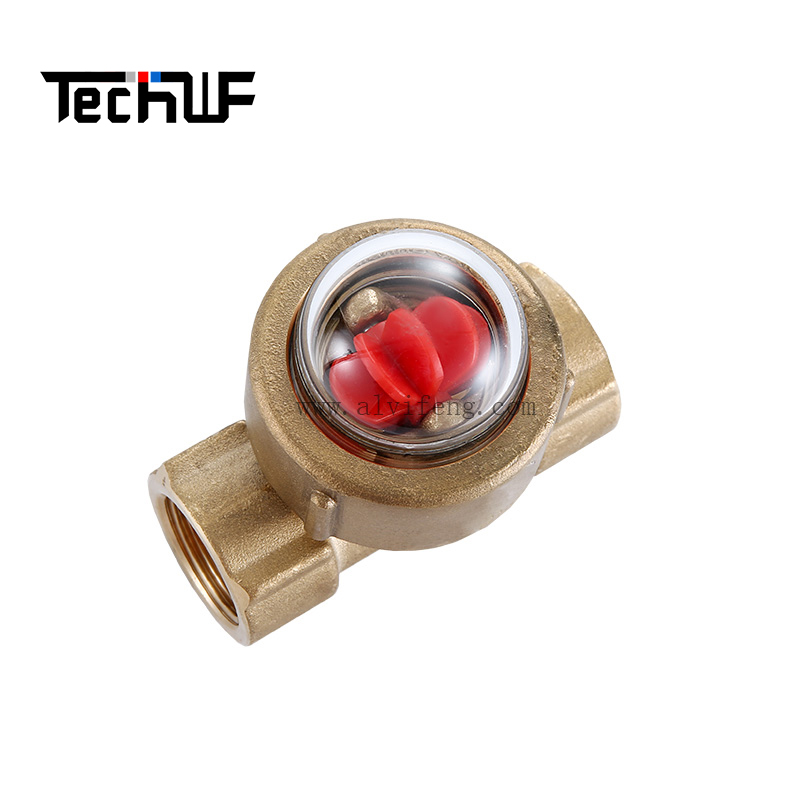

3.3 270° Hemispherical Dome Panoramic Sight Window
Raised transparent hemispherical dome removes all viewing blind spots. Operators can clearly observe impeller rotation speed, air bubbles and suspended fine impurities from any horizontal or vertical mounting angle, delivering superior visibility compared to flat-top sight glasses.
3.4 Zero Pressure Loss Full Straight Through Flow Path
No internal protruding throttle structures create additional pressure loss; the original pipeline flow capacity is fully retained, perfectly matching low-loss flow control requirements of HVAC cooling loops, agricultural irrigation mains and small marine freshwater circulation systems.
3.5 High-Visibility Red Multi-Blade Impeller
Bright red impeller creates stark visual contrast against clear fluid, enabling rapid flow status identification even under low light conditions. It accurately signals low flow, pipeline dry-up and reverse flow to avoid unplanned system shutdown and pump damage.
3.6 Reliable EPDM Single-Layer Sealing System
High-quality EPDM rubber gasket offers stable elasticity and aging resistance under standard water and oil temperatures, maintaining consistent zero-leak performance for long-term continuous operation in HVAC, agriculture and light industrial environments.
3.7 Compact Space-Saving T-Dome Layout
Short T-shaped brass body paired with small dome sight head occupies minimal installation space, perfectly suited for narrow cabinet HVAC piping, compact greenhouse irrigation loops and small vessel marine auxiliary piping layouts.
3.8 Low-Maintenance & Cost-Effective Construction
Robust brass body resists impact and corrosion; no fragile consumable components, only occasional simple wiping of the dome surface is required. The economical brass design delivers premium monitoring performance with lower overall project procurement costs.
4. Global Cross-Industry Application Scenarios
Heavy Industry & HVAC Manufacturing
Factory clean cooling water inline pipelines, boiler small auxiliary branch piping, central HVAC chilled & hot water circulation lines, air conditioner hydraulic oil circuits; monitors water circulation to prevent pump dry-burning and heat exchanger cavitation failure.
Light Chemical & Sanitary Process Engineering
Inline conveyance pipelines for purified water, low-concentration alcohol and mild non-corrosive solvents, small circulating water lines for cosmetic & food processing equipment; visual flow inspection avoids pipeline blockage and production interruptions.
Modern Precision Agriculture
Farm domestic water trunk pipelines, greenhouse nutrient solution circulation tubing, drip & sprinkler irrigation monitoring mains; tracks water flow to guarantee uniform irrigation and prevent crop water shortage yield loss.
Small Offshore & Marine Vessel Engineering
Yacht and small ship cabin fresh water cooling circulation piping, marine aquaculture small water recirculation auxiliary lines; brass anti-fouling construction adapts to low-salinity freshwater onboard vessel environments.
Supplementary Application Fields
Domestic pure water treatment equipment, household & commercial solar hot water circulation pipelines, fire protection small branch water supply lines, food-grade clean fluid transfer pipelines.
5. Customized Engineering Support Service
- Material Customization: Standard lead-free forged brass, stainless steel upgrade (304/316) for corrosive media
- Thread Customization: BSP, NPT, G, Rc and non-standard special internal thread sizes
- Pressure Grade Customization: Standard PN10, PN16 high-pressure reinforced customized version
- Sealing Material Matching: EPDM for clean water, FKM upgrade for light oil & mild solvents
- Brand & Packaging Customization: Laser engraved customer LOGO on brass body, neutral export carton packaging; test certificates available for tender documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 brass & stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, sealing leakage testing, water corrosion aging testing, impeller low-flow sensitivity testing and temperature cycle validation.
Complete material certification, sanitary test reports and pressure inspection documents can be supplied to support global engineering tender reviews, marine vessel equipment audits and food processing plant compliance assessments.
