Model No.: WF-YL11-05Z
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL11-05Z all-in-one adjustable needle valve & flow sight indicator is a premium dual-function precision pipeline control and visual monitoring fitting independently engineered by TechWF for micro-flow precise regulation and real-time fluid observation across industrial, chemical lab, precision agricultural and offshore marine harsh working environments.

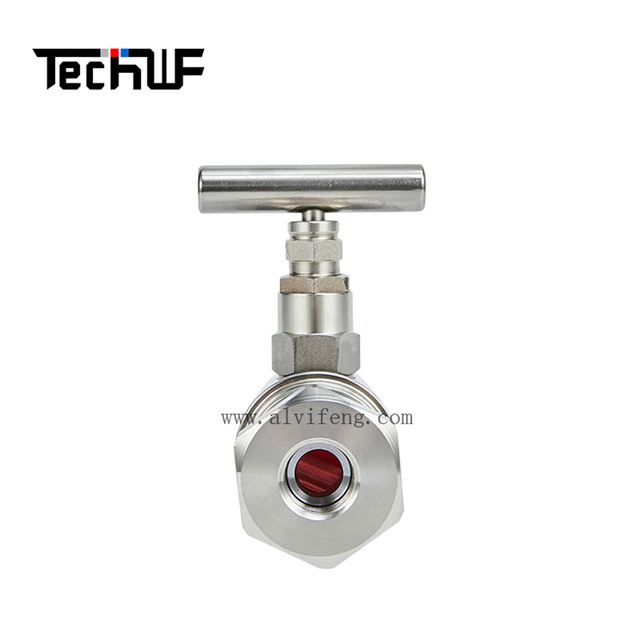

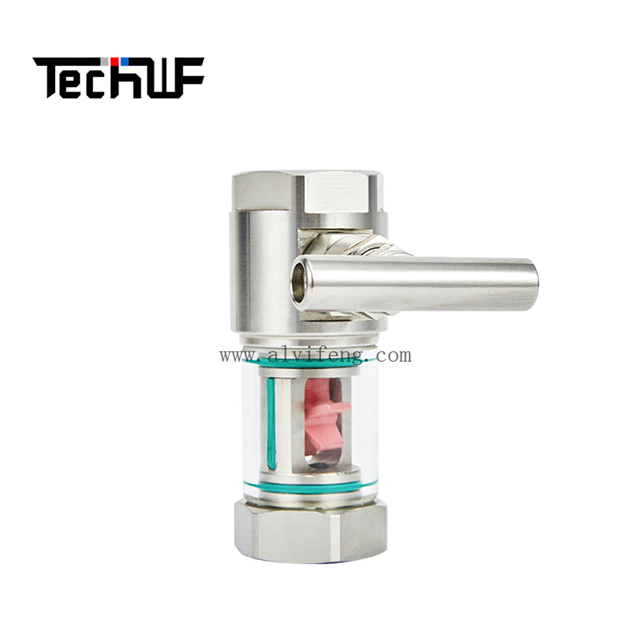

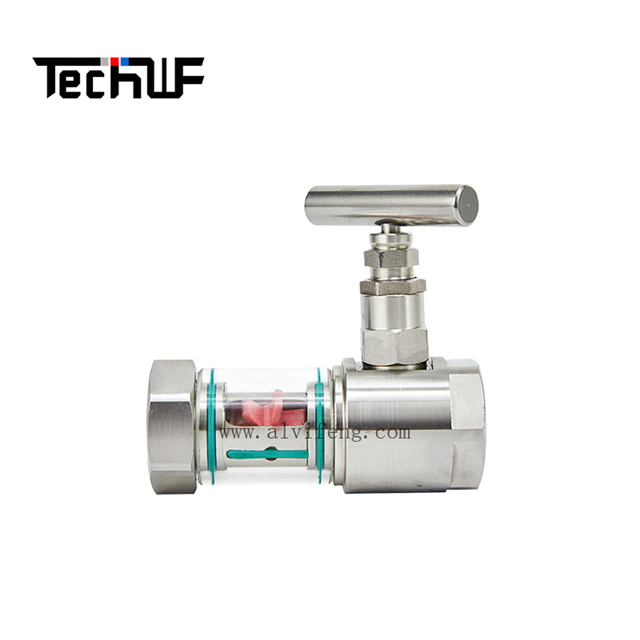

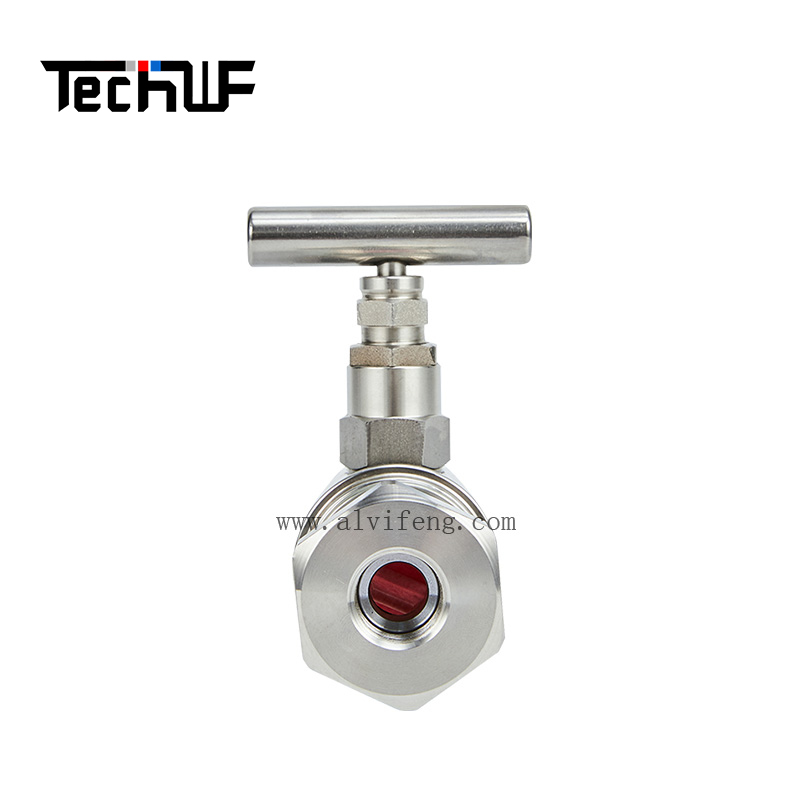

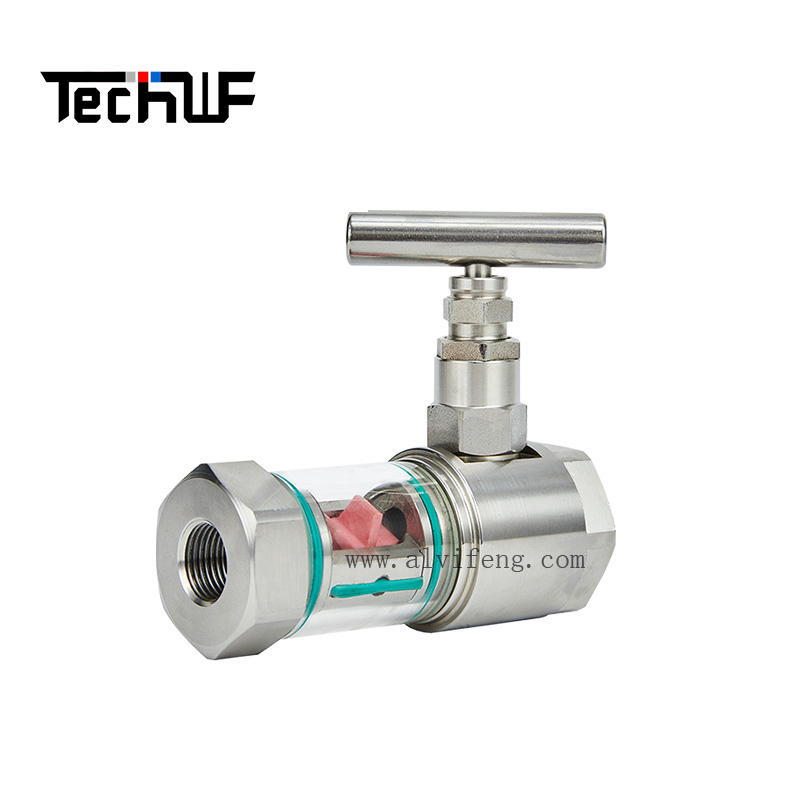

This integrated unit combines a CNC machined stainless steel T-handle needle regulating valve and a transparent tubular paddle sight glass into one compact assembly, with dual female internal thread connections, thick-wall borosilicate viewing tube, double FKM fluororubber sealing gaskets and sensitive red swing paddle flow indicator. It enables operators to manually fine-tune fluid flow volume while simultaneously visually checking flow presence, flow speed fluctuation, pipeline emptying and medium backflow, eliminating the need to separately install regulating valves and sight glasses to save pipeline layout space. It fully protects miniature circulation pumps, lab chemical reactors, hydroponic precision irrigation equipment and compact offshore seawater circulation skids against dry-running, cavitation and permanent mechanical breakdown.
Each finished unit undergoes complete hydraulic burst pressure testing, salt spray corrosion aging testing, multi-layer sealing leakage testing, flow regulation precision calibration and high-low temperature alternating cycle validation before factory dispatch, maintaining stable long-cycle precise operation under high-salinity seawater, weak acid/alkali and high-temperature micro fluid media globally.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel fully CNC machined integrated housing, thick-wall high-pressure borosilicate glass tube; passivated matte finish, anti-rust, anti-scale, seawater & mild chemical corrosion resistant, sanitary instrument standard compliant
- Connection Standard: BSP / NPT female internal thread, full size range DN15–DN50 customizable
- Sight Window: Straight thickened borosilicate glass tube, 360° panoramic full viewing without visual blind spots
- Regulating Component: Stainless steel precision needle spool with long T-shaped anti-slip handle, stepless infinitely variable flow adjustment
- Sealing Assembly: Double-layer green FKM fluorine rubber composite gaskets, resistant to acid, alkali, brine, industrial oils and lab chemical solvents
- Flow Indicator Core: Reinforced red swing paddle with positioning bracket, sensitive to low micro flow and supports bidirectional flow identification
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity at sight section, zero extra pressure drop; needle valve realizes continuous linear flow throttling control
- Structural Feature: Integrated valve + sight glass split detachable assembly, easy disassembly for internal paddle cleaning and maintenance
3. Core High-End Industrial Advantages
3.1 All-In-One Dual-Function Integrated Design
Combines precision flow regulation and real-time flow visual monitoring in a single fitting, cutting pipeline component quantity, reducing pipe connection leakage points and greatly saving limited installation space for skid-mounted equipment, lab benches and compact offshore machinery cabinets.
3.2 Precision Stepless Needle Flow Regulation
Long stainless steel T-handle needle spool delivers infinitely variable linear flow throttling. Operators can accurately fine-tune tiny flow rates for micro-circulation, lab reagent delivery and precision hydroponic systems, with stable pressure holding and no flow drift after locking the handle.
3.3 360° Panoramic Straight Tubular Sight Glass
Fully transparent straight glass tube allows technicians to observe paddle swing amplitude, suspended fluid impurities and bubble status from any radial angle, offering unmatched full-flow visibility compared to single-sided dome sight indicators.
3.4 Zero Extra Pressure Loss At Sight Section
No internal protruding throttle structures on the observation segment, completely retains original pipeline flow capacity during normal full-open operation, perfectly matching low-loss precision flow control demands of fine chemical labs, industrial precision cooling and marine compact circulation systems.
3.5 Bidirectional Sensitive Swing Paddle Indicator
Custom red swing paddle swings forward and backward to distinguish forward flow, backflow and zero-flow state, accurately alerting operators to pipeline dry-up, medium reverse backflow and insufficient flow risks to avoid unplanned experiment/production shutdown and costly precision equipment damage.
3.6 Dual Heavy-Duty FKM Fluororubber Sealing System
Two independent fluororubber gaskets form double anti-leakage protection, resisting chemical erosion, salt spray aging and extreme temperature alternation, achieving zero leakage under long-term full-load continuous operation in chemical labs and offshore high-salt corrosive environments.
3.7 Compact Universal Horizontal & Vertical Layout
Slender inline integrated structure fits seamlessly into straight horizontal or vertical micro instrument tubing without extra lateral space occupation, ideal for compact lab benches, skid-mounted process units, greenhouse narrow hydroponic piping and confined offshore equipment layouts.
3.8 Detachable Low-Maintenance Industrial Construction
All valve body, glass tube and internal paddle components can be fully disassembled for internal dirt cleaning and worn part replacement; no fragile consumable parts, only regular simple wiping of glass tube surface is required, drastically cutting long-term operation and maintenance expenditure for precision engineering and laboratory projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Precision Instrument Manufacturing
Skid-mounted cooling oil micro instrument tubing with adjustable flow control, boiler sensor auxiliary regulating pipelines, central HVAC precision monitoring flow control loops, machine tool miniature hydraulic oil adjustable circuits; precisely control micro circulation flow and prevent micro pump dry-grinding & precision sensor cavitation breakdown.
Chemical Laboratory & Fine Process Engineering
Adjustable micro conveyance pipelines for weak acid, weak alkali and lab chemical solvents, small-volume chemical intermediate circulation regulating lines; simultaneously realize flow fine-tuning and 360° full visual flow monitoring to eliminate micro pipeline blockage and reagent cut-off experiment halts.
Modern Precision Hydroponic Agriculture
Greenhouse adjustable micro nutrient solution circulation tubing, precision drip irrigation flow regulating monitoring loops, hydroponic farm small-bore water supply adjustable pipelines; precisely control irrigation flow volume and guarantee uniform micro nutrient distribution to avoid crop nutrient drought yield losses.
Offshore & Marine Compact Instrument Engineering
Ship cabin miniature adjustable cooling circulation tubing, offshore platform lab fresh & seawater instrument regulating auxiliary lines, marine aquaculture micro water recirculation skid control modules; stainless steel anti-salt corrosion construction adapts to coastal and open-ocean high-salt humid compact equipment environments.
Supplementary Application Fields
Lab pure water purification adjustable equipment, miniature solar thermal circulation regulating tubing, fire protection micro monitoring flow control branch lines, sanitary food-grade small-bore adjustable fluid transfer instrument pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special internal thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical lab oil & solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on valve housing and T-handle, neutral export carton/wooden case packaging; third-party official test reports provided for tender & lab audit documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, dual-sealing leakage testing, salt spray corrosion aging testing, paddle low-flow sensitivity testing, needle valve flow regulation precision calibration and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine instrument project audits and chemical laboratory safety compliance assessments.
