Model No.: WF-YL11-2K
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL11-2K compression ferrule type impeller flow sight indicator is a premium precision pipeline visual monitoring fitting independently engineered by TechWF, specially designed for small-bore instrument tubing and harsh working conditions across industrial, chemical, agricultural and offshore marine sectors.

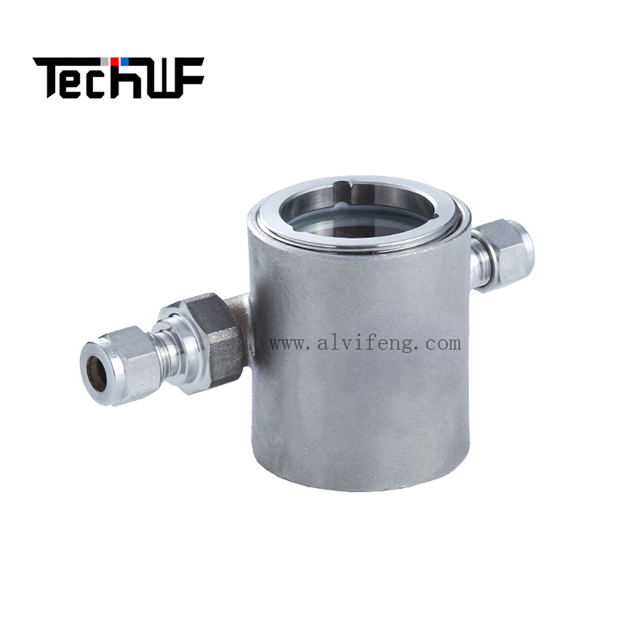

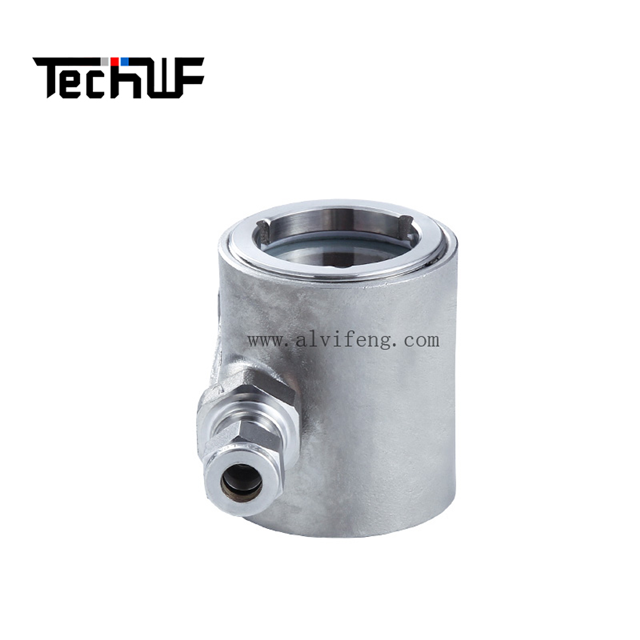

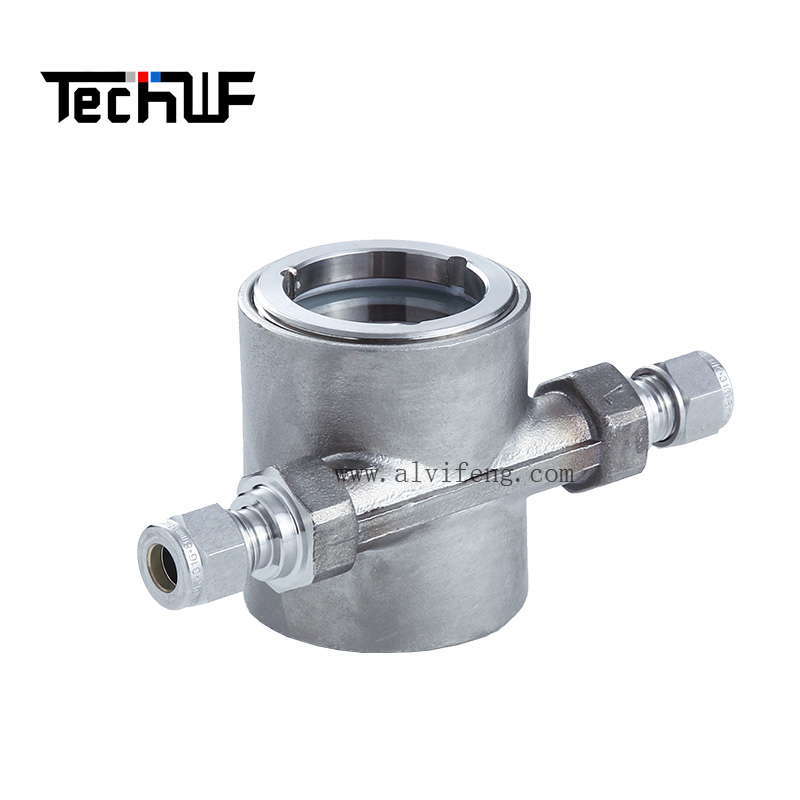

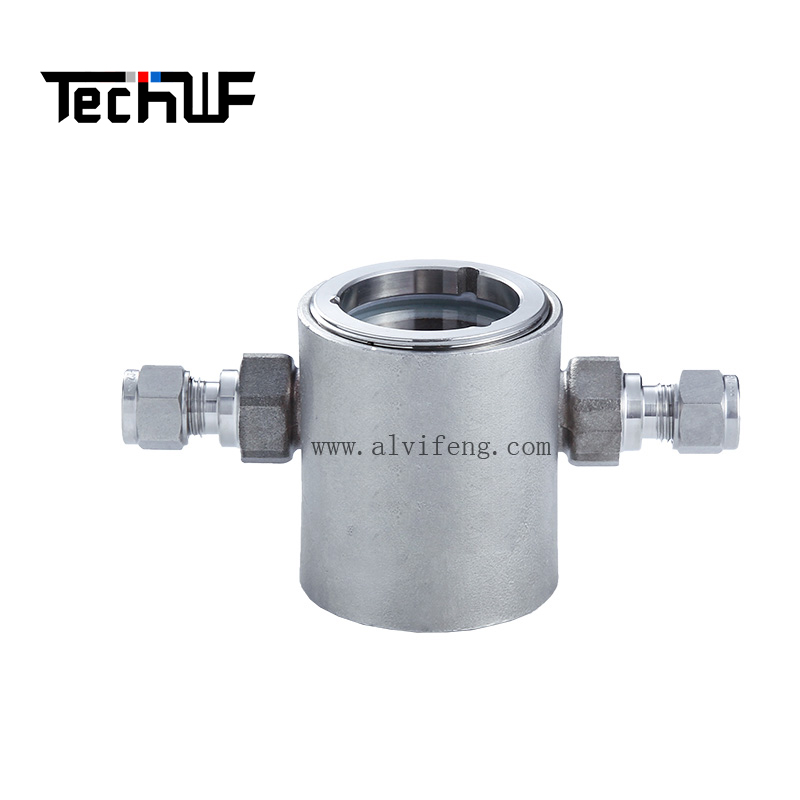

This sight glass adopts one-piece precision cast stainless steel vertical barrel body, dual compression ferrule tube connections, top large-view borosilicate sight window and high-sensitivity red star anti-corrosion impeller. It delivers real-time visual inspection of fluid flow velocity, pipeline blockage, medium cut-off and reverse flow, fully protecting miniature circulation pumps, lab chemical reactors, precision irrigation equipment and compact offshore seawater circulation modules against dry running, cavitation and mechanical failure.
Every finished unit undergoes rigorous hydraulic burst pressure testing, salt spray corrosion aging testing, dual sealing leakage testing and cold-hot alternating cycle validation before factory dispatch, ensuring stable long-cycle continuous operation under high-salinity, weak acid/alkali and high-temperature micro fluid media worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel (passivated matte finish, anti-rust, anti-scale, seawater & mild chemical resistant, meets sanitary instrument standards)
- Connection Standard: Double ferrule compression tube fitting, compatible with stainless steel tubing OD 6mm / 8mm / 10mm / 12mm
- Sight Window: High-pressure resistant borosilicate tempered glass, top panoramic wide viewing angle
- Sealing Assembly: Double-layer FKM fluorine rubber O-ring composite seal, resistant to acid, alkali, brine and industrial instrument oils
- Flow Indicator Core: Reinforced red star multi-blade impeller, ultra-sensitive to micro low fluid flow
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop without flow resistance
- Structural Feature: Upright vertical barrel compact body, double ferrule fitting for quick tubing assembly without threading
3. Core High-End Industrial Advantages
3.1 Integrated Precision Cast Stainless Steel Vertical Barrel Body
One-piece stainless steel casting forms smooth inner walls free of dead corners, delivering superior anti-corrosion and anti-fouling performance. Compliant with strict sanitary instrument standards for lab, pharmaceutical and offshore seawater micro pipeline systems, extending service lifespan under long-term corrosive medium exposure.
3.2 Double Ferrule Compression Tube Connection
Dual compression ferrule fittings enable fast, leak-tight connection to seamless stainless steel instrument tubing, eliminating the need for threaded adapters or welding. Quick on-site disassembly and reassembly drastically shorten engineering instrument pipeline installation cycles, widely compatible with global standard lab & process tubing.
3.3 Panoramic Top Observation Sight Glass
Large-diameter top-mounted sight window eliminates visual blind spots, allowing technicians to clearly observe impeller rotation speed, fluid impurities, bubbles and full flow status regardless of vertical or horizontal tubing layout.

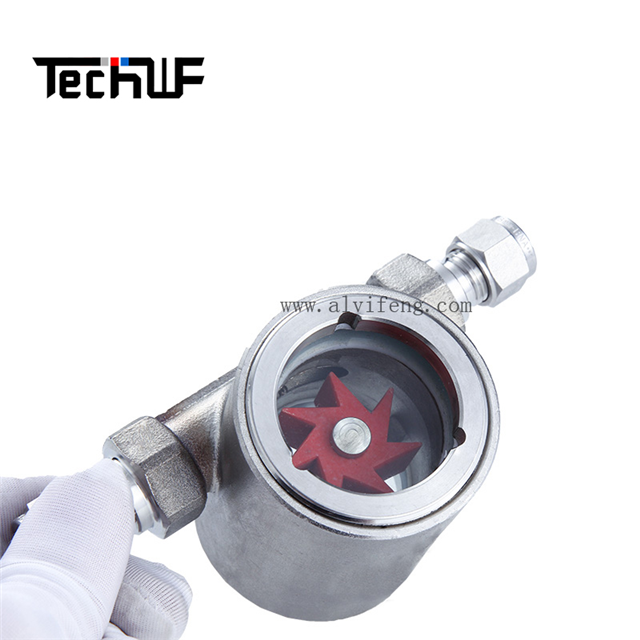

3.4 Ultra-Sensitive Low-Flow Star Impeller
Custom molded multi-blade star impeller responds to minimal micro fluid flow volume, accurately identifying low flow, pipeline dry-up and backflow risks to avoid unexpected production shutdown and costly precision equipment damage.
3.5 Dual Heavy-Duty Leak-Proof Sealing System
Dual FKM fluororubber sealing rings withstand chemical erosion, salt spray aging and extreme temperature alternation, maintaining zero leakage under long-term full-load continuous operation in chemical lab and offshore high-salt corrosive micro tubing environments.
3.6 Compact Vertical Barrel Miniaturized Layout
Upright vertical barrel mini body occupies minimal horizontal installation space, perfectly suited for compact instrument cabinets, lab bench piping, skid-mounted process units and confined offshore equipment assembly layouts.
3.7 Multi-Harsh Environment Verified Reliability
Validated through rigorous salt spray aging, hot-cold alternating cycle and hydraulic burst pressure tests, reliably supporting year-round non-stop operation of industrial instrument, chemical lab, precision agricultural and offshore marine engineering projects.
3.8 Maintenance-Free Industrial Construction
No easily worn consumable spare parts integrated; only occasional simple wiping of the sight glass surface is required, drastically cutting long-term operation and maintenance expenditure for precision engineering and laboratory projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Instrument Manufacturing
Skid-mounted cooling oil instrument tubing, boiler sensor auxiliary pipelines, central HVAC precision monitoring loops, machine tool miniature hydraulic oil circuits; prevents micro pump dry-grinding and precision sensor cavitation breakdown.
Chemical Laboratory & Fine Process Engineering
Micro conveyance pipelines for weak acid, weak alkali and lab chemical solvents, small-volume chemical intermediate circulation lines; real-time visual flow monitoring eliminates micro pipeline blockage and reagent cut-off experiment halts.
Modern Precision Agriculture
Greenhouse micro nutrient solution circulation tubing, precision drip irrigation monitoring loops, hydroponic farm small-bore water supply pipelines; guarantees uniform micro irrigation distribution and avoids crop nutrient drought yield losses.
Offshore & Marine Instrument Engineering
Ship cabin miniature cooling circulation tubing, offshore platform lab fresh & seawater instrument auxiliary lines, marine aquaculture micro water recirculation modules; stainless steel anti-salt corrosion construction adapts to coastal and open-ocean high-salt humid compact equipment environments.
Supplementary Application Fields
Lab pure water purification equipment, miniature solar thermal circulation tubing, fire protection micro monitoring branch lines, sanitary food-grade small-bore fluid transfer instrument pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Tubing Ferrule Customization: Compatible tubing OD 6/8/10/12mm, special non-standard tube sizes available
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical lab oil & solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO, neutral export carton/wooden case packaging; third-party official test reports provided for tender & lab audit documentation
- Flow Bore Customization: Miniature small-bore and standard full-bore internal cavity options
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, sealing leakage testing, salt spray corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine instrument project audits and chemical laboratory safety compliance assessments.
