Model No.: WF-YL11-70
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview

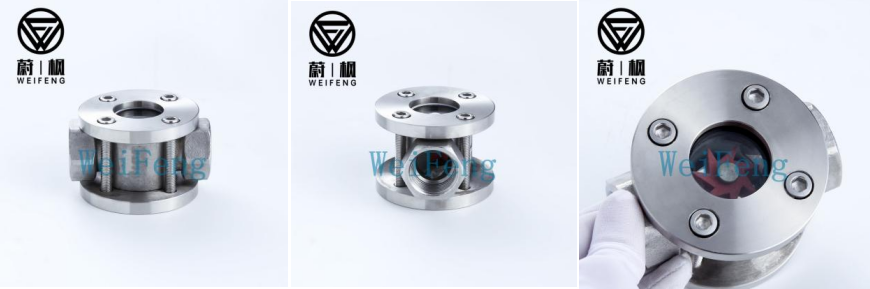

WF-YL11-70 four-bolt top view split body flow sight indicator is a heavy-duty disassemblable inline visual pipeline monitoring fitting independently engineered by TechWF, designed for high-pressure, viscous, mildly corrosive fluid piping systems across industrial, chemical, agricultural and offshore marine global engineering projects.

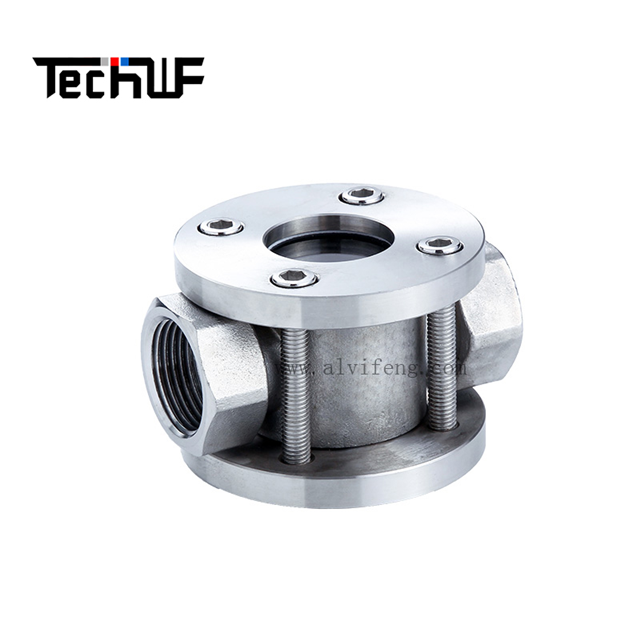

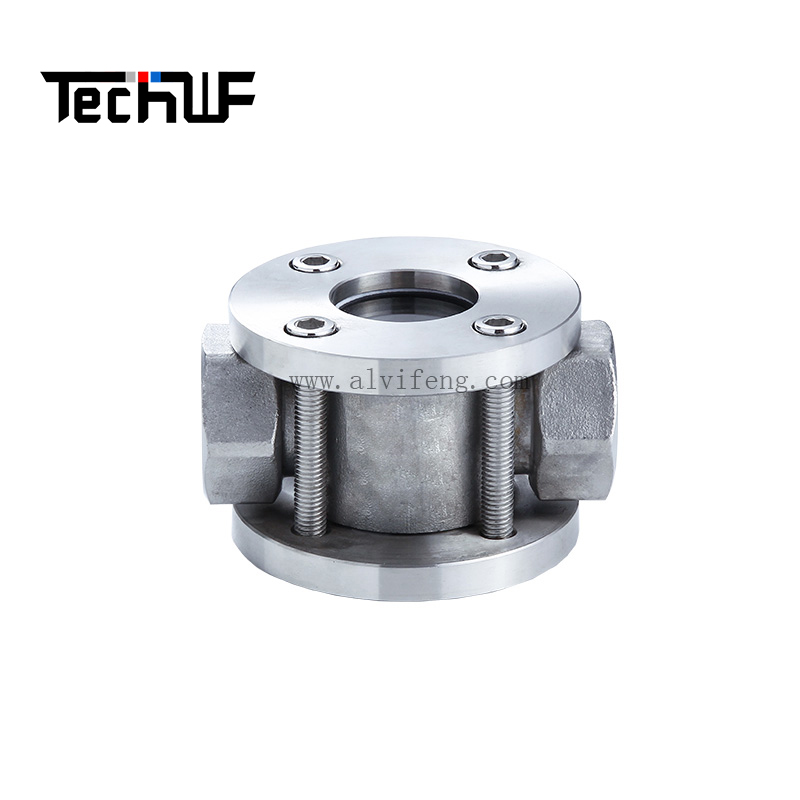

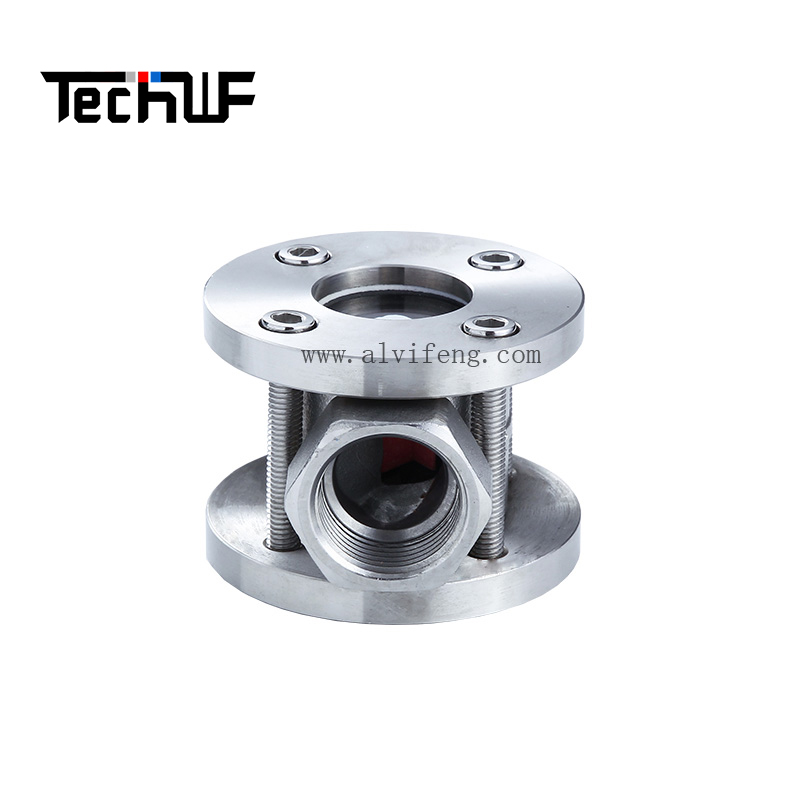

This sight glass adopts one-piece cast stainless steel cylindrical split housing locked by four full-length stainless steel through bolts, symmetrical dual female internal thread inlet/outlet ports, a large circular top-mounted thick borosilicate panoramic sight window and high-sensitivity red star multi-blade anti-corrosion impeller. Its fully split openable design allows complete internal disassembly to thoroughly clean sludge, fertilizer sediment, chemical crystal deposits and viscous medium residues, while delivering real-time top-down visual inspection of fluid flow velocity, pipeline clogging, medium cut-off and reverse flow. It fully protects large circulation pumps, industrial chemical reactors, farm main irrigation equipment and offshore seawater circulation systems from dry running, cavitation and permanent mechanical breakdown.
Every finished unit undergoes rigorous hydraulic burst pressure testing, salt spray corrosion aging testing, four-bolt uniform clamping sealing leakage testing and hot-cold alternating cycle validation before factory dispatch, ensuring stable leak-free long-cycle continuous service under seawater, weak acid/alkali, high-viscosity slurry and high-temperature fluid media worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel precision casting, matte passivated anti-corrosion finish; anti-rust, anti-scaling, seawater & mild chemical resistant, compliant with heavy industrial and sanitary fluid handling standards
- Connection Standard: BSP / NPT female internal thread, full size range DN15–DN50 fully customizable
- Sight Window: Thick-wall high-pressure resistant round borosilicate top glass, vertical downward panoramic viewing angle with zero visual blind spots
- Fastening Structure: Four symmetrical stainless steel long through bolts + upper four-corner flange cover plate, evenly distributed clamping force to avoid local glass stress cracking under pressure fluctuation
- Sealing Assembly: Single/double FKM fluorine rubber O-ring composite sealing system, resistant to acid, alkali, brine, industrial lubricants and low-viscosity chemical slurries
- Flow Indicator Core: Reinforced red star multi-lobe impeller, ultra-sensitive to micro low-volume fluid flow for early low-flow warning
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, no internal flow dead zones for sediment accumulation
- Structural Feature: Vertical cylindrical split two-piece body, top-mounted observation window, fully disassemblable without pipeline cutting for impeller replacement and deep cavity cleaning
3. Core High-End Industrial Advantages
3.1 Heavy Cast Stainless Steel Vertical Split Cylindrical Body
Integral stainless steel casting delivers thick wall thickness and exceptional structural rigidity, resisting pipeline vibration and water hammer impact in heavy-duty factory and offshore platform environments. Smooth seamless inner walls reduce medium adhesion and scale buildup, extending maintenance cycles for dirty fluid pipelines.
3.2 Four-Bolt Symmetric Uniform Clamping Sealing System
Four parallel stainless steel through bolts evenly spread compression load on the top sight glass and fluororubber gasket, eliminating partial stress concentration and glass breakage risks under frequent pressure swings. Maintains consistent zero-leak performance during year-round continuous circulation of temperature-variable industrial and marine media.

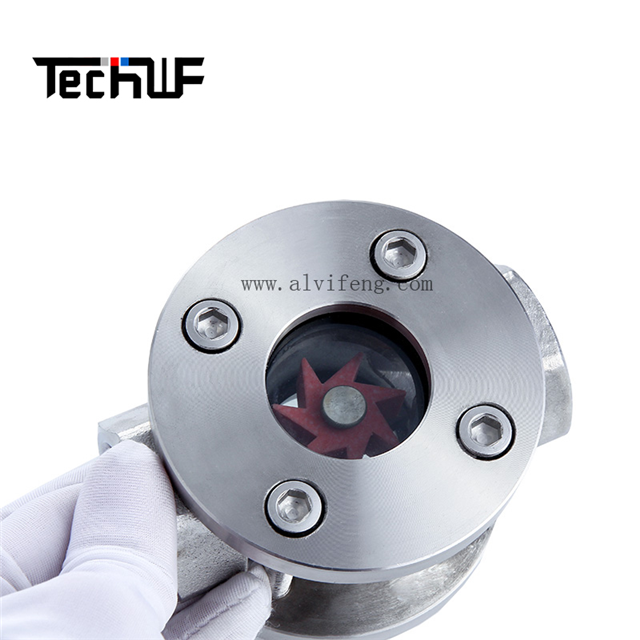

3.3 Large Top-Down Panoramic Observation Window
Oversized circular top borosilicate glass provides unobstructed vertical downward viewing. Operators can clearly observe impeller rotation speed, suspended solid impurities and air bubbles directly from above, ideal for horizontal main pipelines where side viewing is blocked by surrounding equipment.
3.4 Zero Pressure Loss Full Straight Through Flow Path
No internal protruding throttle structures generate additional pressure loss; the original pipeline design flow capacity is fully preserved, perfectly matching low-loss flow control demands of central factory cooling loops, agricultural irrigation trunk lines and large marine freshwater circulation systems.
3.5 Ultra-Sensitive Red Star Multi-Blade Impeller
Bright red star impeller creates sharp visual contrast against clear and turbid fluids alike, accurately detecting low flow, pipeline dry-up and reverse flow signals to prevent unplanned production shutdown and costly pump/reactor equipment failure losses.
3.6 Heavy-Duty FKM Fluororubber Anti-Corrosion Seal
High-performance fluororubber sealing ring offers outstanding resistance to chemical erosion, salt spray and extreme temperature cycling, sustaining reliable leak-proof operation in chemical plants, coastal irrigation facilities and offshore high-salinity piping systems.
3.7 Vertical Compact Space-Saving Layout
Upright cylindrical housing only occupies vertical height without expanding horizontal pipeline width, suitable for densely arranged parallel main pipelines, narrow equipment room trunk lines and compact marine engine room piping layouts.
3.8 Fully Detachable Low-Maintenance Split Construction
After removing four through bolts, the entire top flange and sight glass assembly can be lifted open without cutting pipelines. Technicians can fully extract the impeller and completely flush accumulated sludge, fertilizer scale and chemical crystals, solving the difficult cleaning pain point of integrated sight glasses for dirty viscous media.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Manufacturing
Factory central circulating cooling water main pipelines, boiler large auxiliary branch piping, central HVAC chilled & hot water trunk lines, machine tool large hydraulic oil circuits; easy split disassembly for regular cooling sludge removal to avoid pump dry-grinding and heat exchanger cavitation failure.
Chemical & Process Engineering
Inline conveyance pipelines for weak acid, weak alkali, light chemical solvents and low-viscosity slurries, chemical intermediate circulation main lines; top-view window facilitates inspection on crowded horizontal production pipelines, periodic crystal cleaning prevents pipeline blockage and material cut-off production halts.
Modern Precision Agriculture
Large-scale farm straight trunk water supply pipelines, greenhouse main nutrient solution circulation lines, central drip & sprinkler irrigation inspection mains; vertical top observation design adapts to densely laid irrigation trunk lines, convenient fertilizer sediment cleaning guarantees uniform water distribution and prevents crop drought yield reduction.
Offshore & Marine Engineering
Ship engine room main cooling circulation piping, offshore platform inline fresh & seawater auxiliary trunk lines, marine aquaculture large water recirculation systems; stainless steel anti-salt corrosion casting construction adapts to coastal and open-ocean high-salt humid high-vibration environments.
Supplementary Application Fields
Industrial pure water treatment main equipment, large solar thermal circulation pipelines, fire protection main water supply lines, sanitary food-grade fluid transfer trunk pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special internal thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical oil & slurry transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on top four-bolt flange cover, neutral export carton/wooden case packaging; third-party official test reports provided for tender documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, four-bolt uniform sealing leakage testing, salt spray corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine project audits and chemical plant safety compliance assessments.
