Model No.: WF-YL11-8
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL11-8 vertical barrel impeller flow sight indicator is a premium compact heavy-duty inline visual pipeline monitoring fitting independently developed by TechWF, engineered to deliver intuitive real-time fluid flow inspection for high-temperature, high-salinity and mildly corrosive piping systems across industrial, chemical, agricultural and offshore marine sectors.

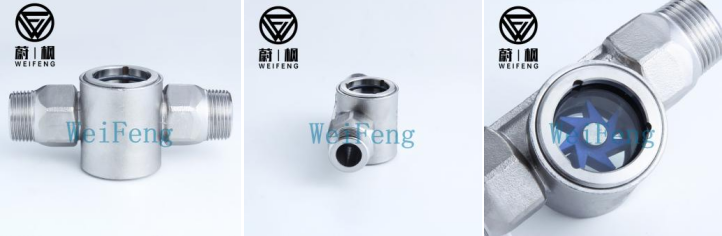

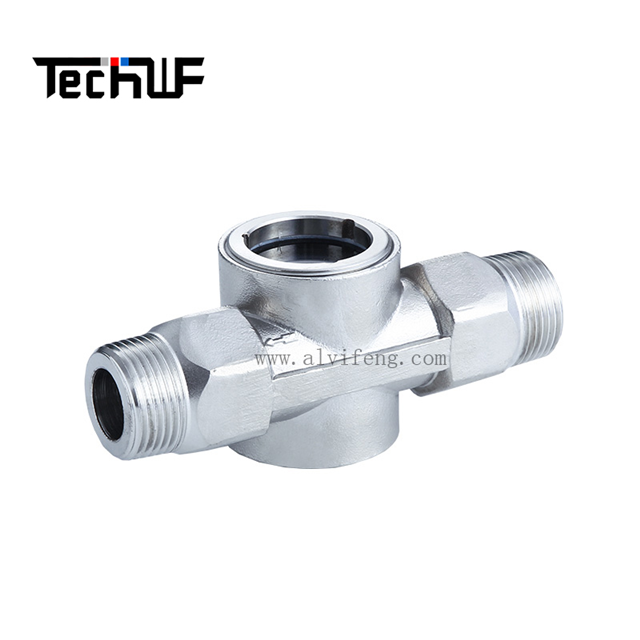

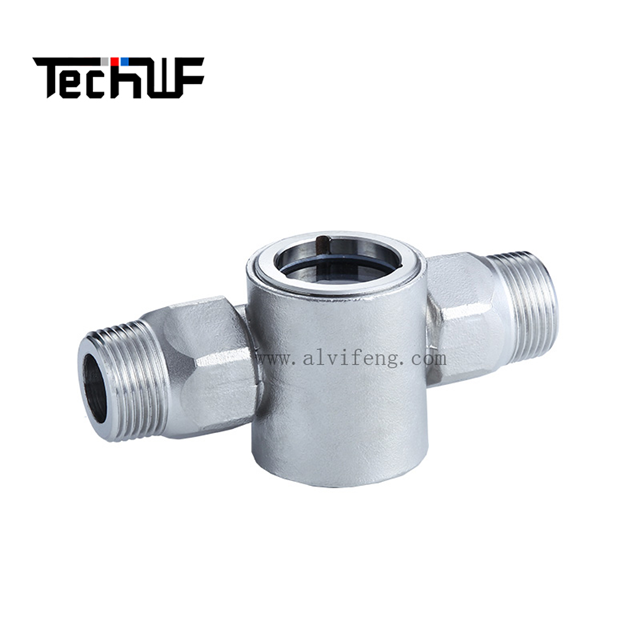

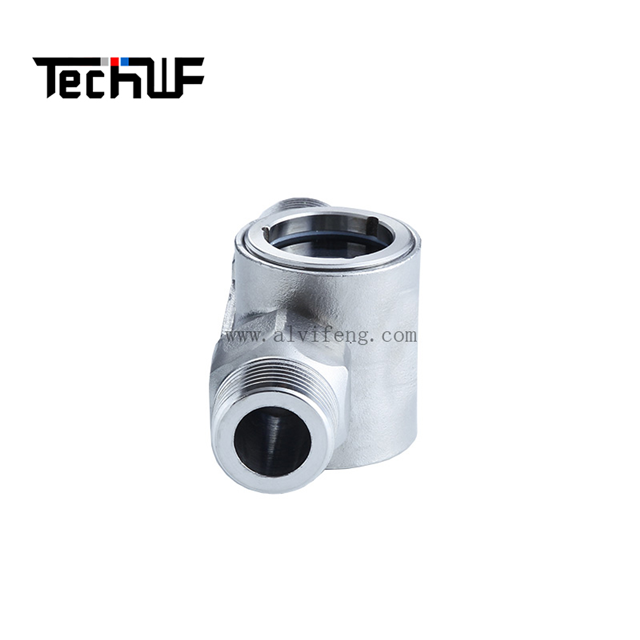

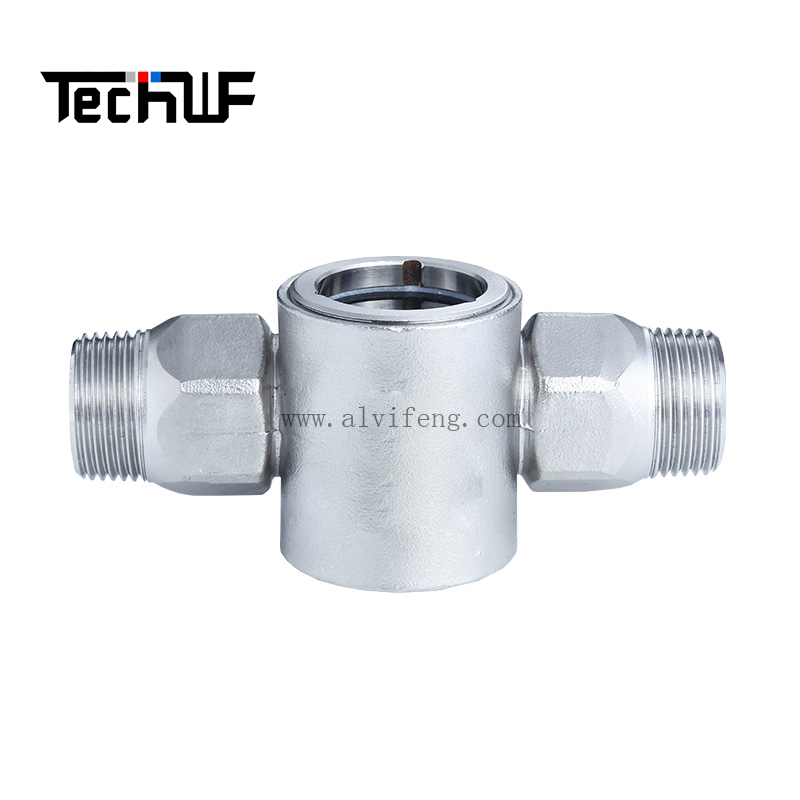

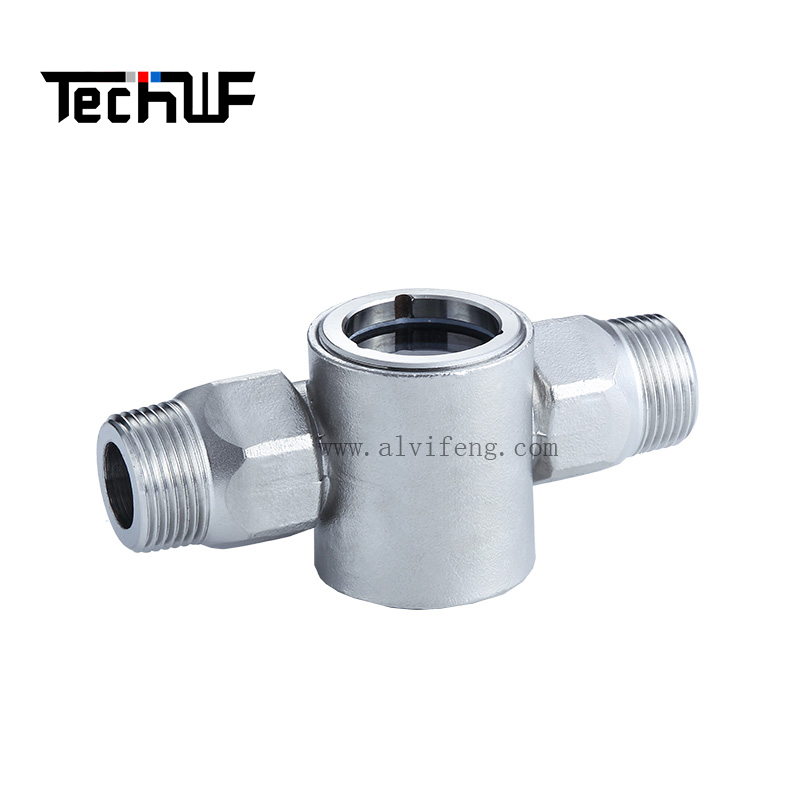

This sight glass features one-piece precision cast stainless steel vertical cylindrical barrel body, dual male external thread inlet/outlet ends, a large top-mounted borosilicate panoramic sight window and high-sensitivity blue star multi-blade anti-corrosion impeller. It enables operators to visually track fluid flow velocity, pipeline clogging, medium cut-off and reverse flow at a glance, fully safeguarding circulation pumps, chemical reactors, irrigation systems and compact offshore seawater circulation modules from dry running, cavitation and permanent mechanical damage.
Every finished unit passes full hydraulic burst pressure testing, salt spray corrosion aging testing, dual-layer sealing leakage testing and hot-cold alternating cycle validation prior to factory delivery, guaranteeing consistent stable long-cycle continuous service under seawater, weak acid, weak alkali and high-temperature fluid media for global engineering projects.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel precision casting, matte passivated finish; anti-rust, anti-scaling, seawater & mild chemical resistant, compliant with sanitary fluid standards
- Connection Standard: BSP / NPT male external thread, complete size range DN15–DN50 customizable
- Sight Window: Thick-wall pressure-resistant borosilicate glass, top 270° wide panoramic viewing with zero visual blind spots
- Sealing Assembly: Double-layer FKM fluorine rubber O-ring composite seal, resistant to acid, alkali, brine and all mainstream industrial lubricating oils & solvents
- Flow Indicator Core: Reinforced blue star multi-lobe impeller, ultra-sensitive to micro low-volume fluid flow
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, no internal flow obstruction
- Structural Feature: Upright vertical barrel compact body with dual male thread terminals for direct pipe connection without extra adapters
3. Core High-End Industrial Advantages
3.1 Integrated Precision Cast Vertical Barrel Stainless Steel Body
One-piece stainless steel casting eliminates internal stagnant dead zones and casting pores, delivering exceptional anti-corrosion and anti-fouling performance. It meets strict sanitary requirements for food processing, pharmaceutical production and offshore seawater pipeline systems, extending service life under long-term corrosive fluid exposure.
3.2 Dual Male External Thread Quick Assembly Design
Double male thread terminals directly mate with standard female pipe fittings, eliminating conversion joints and welding steps. This structure drastically shortens on-site pipeline installation cycles and is universally compatible with standard industrial, agricultural and marine piping specifications.
3.3 270° Panoramic Top Dome Sight Window
Large raised circular borosilicate window removes viewing blind spots. Technicians can clearly observe impeller rotation speed, suspended fluid impurities, bubbles and full flow status from any vertical or horizontal mounting angle, offering superior visibility compared to flat-top sight glasses.
3.4 Full-Bore Unrestricted Flow Path
No internal protruding throttle structures generate additional pressure loss; the original pipeline design flow capacity is fully retained, perfectly satisfying precise low-loss flow control demands of fine chemical manufacturing, industrial precision cooling and marine compact circulation systems.

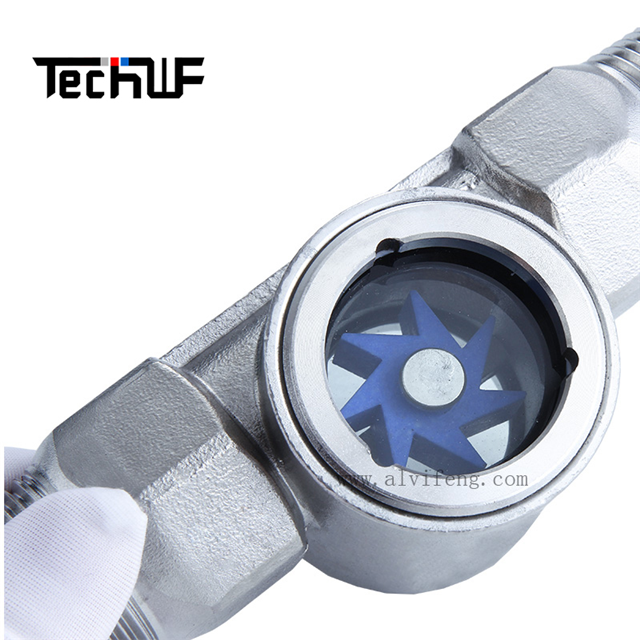

3.5 Ultra-Sensitive Blue Star Multi-Blade Impeller
Custom molded star-shaped multi-lobe impeller reacts to minimal fluid flow volume, accurately identifying low flow, pipeline dry-up and backflow risks to avoid unplanned production shutdown and costly equipment breakdown losses.
3.6 Dual Heavy-Duty FKM Fluororubber Sealing System
Dual independent fluororubber gaskets form double anti-leakage protection, resisting chemical erosion, salt spray aging and extreme temperature fluctuations, maintaining zero leakage under non-stop full-load operation in chemical plants and offshore high-salt corrosive environments.
3.7 Space-Saving Vertical Cylindrical Layout
Slender upright barrel design occupies minimal horizontal installation space, ideal for compact built-in equipment piping, narrow unit cabinets, greenhouse confined irrigation piping and compact offshore machinery assembly layouts.
3.8 Maintenance-Free Industrial Construction
No fragile consumable spare parts integrated; only occasional simple wiping of the sight glass surface is required, drastically cutting long-term operation and maintenance expenditure for large-scale industrial, agricultural and marine engineering projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Manufacturing
Factory circulating cooling water inline pipelines, boiler auxiliary branch piping, central HVAC chilled water main lines, machine tool miniature hydraulic oil circuits; effectively prevents pump dry-grinding and equipment cavitation failure.
Chemical & Process Engineering
Inline conveyance pipelines for weak acid, weak alkali and light chemical solvents, straight chemical intermediate circulation lines; real-time full visual flow monitoring eliminates pipeline blockage and material cut-off production halts.
Modern Precision Agriculture
Large-scale farm straight trunk water supply pipelines, greenhouse inline nutrient solution circulation tubing, drip & sprinkler irrigation main flow inspection lines; guarantees uniform water distribution and prevents crop drought yield reduction.
Offshore & Marine Engineering
Ship engine room compact cooling circulation piping, offshore platform inline fresh & seawater auxiliary lines, marine aquaculture small water recirculation systems; stainless steel anti-salt corrosion construction adapts to coastal and open-ocean high-salt humid environments.
Supplementary Application Fields
Industrial pure water inline purification equipment, solar thermal straight circulation pipelines, fire protection water branch monitoring lines, sanitary food-grade straight fluid transfer pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special external thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical oil & solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on barrel body, neutral export carton/wooden case packaging; third-party official test reports provided for tender documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, dual-sealing leakage testing, salt spray corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine project audits and chemical plant safety compliance assessments.
