Model No.: WF-YL61-2
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Sanitary & Fine Chemical Engineering | Precision Agriculture | Offshore & Marine Anti-Corrosion Welded Pipeline Systems
1. Product Overview

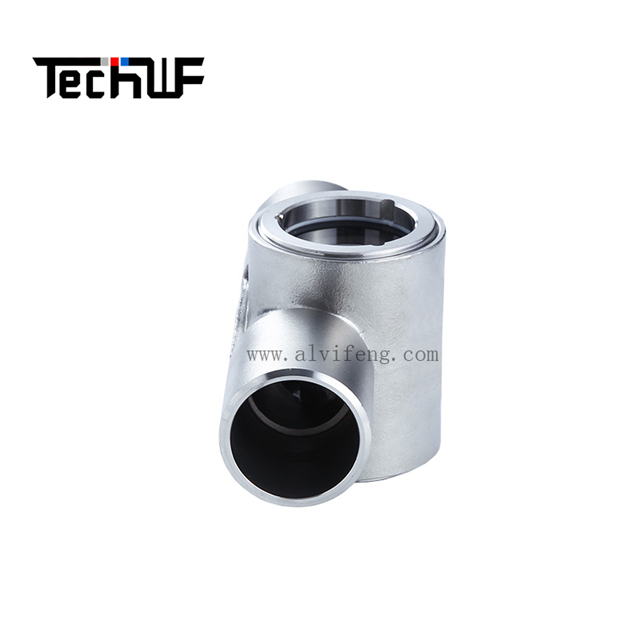

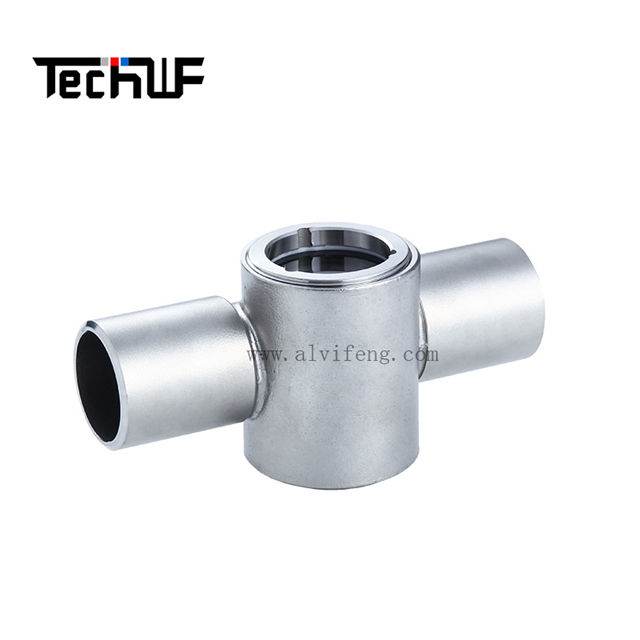

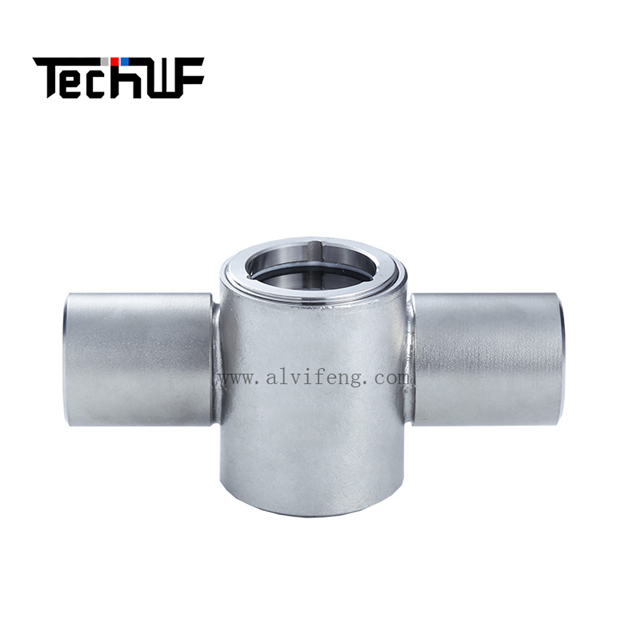

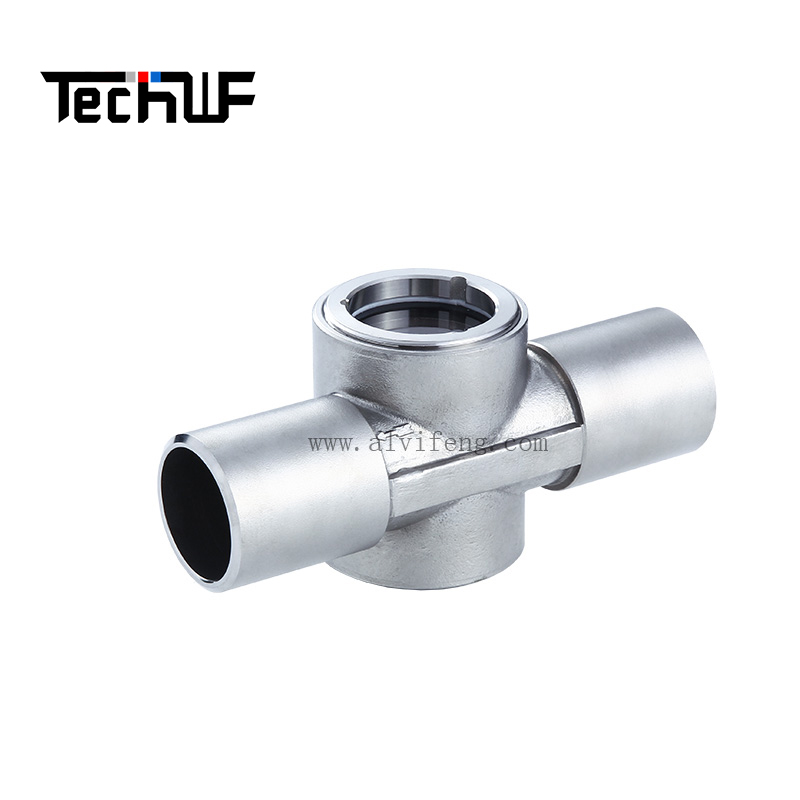

WF-YL61-2 butt-welded top-view flow sight indicator is a premium all-stainless steel inline visual flow monitor independently developed by TechWF, engineered for permanent welded industrial trunk pipelines that demand seamless leak-free connection, superior anti-corrosion performance and vertical top-down fluid observation. It is widely adopted in food & beverage sanitary production, pharmaceutical purified water circulation, fine chemical corrosive medium delivery, large agricultural water treatment and offshore marine welded piping projects.

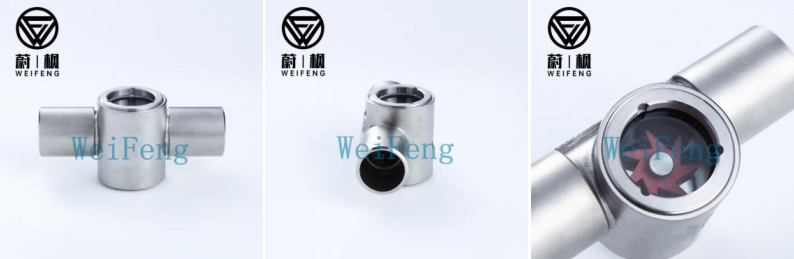

This sight glass adopts precision cast 304/316/316L stainless steel T-type cylindrical body with symmetrical butt-weld straight pipe ends, top embedded thick round borosilicate observation window and high-visibility red corrosion-resistant star PPS impeller. Butt-weld end design enables full penetration seamless welding with matching pipeline tubes, eliminating flange leakage risks and external connection gaps. The top quick-disassemble sight cover supports full internal extraction of the impeller for deep flushing of organic residues, pharmaceutical crystals and fertilizer sediments without cutting the whole fitting off the pipeline. It delivers real-time vertical top-down visual monitoring of flow velocity, pipeline emptying, clogging and reverse flow, fully safeguarding large anti-corrosion circulation pumps, sanitary reactors, agricultural trunk irrigation equipment and shipboard seawater cooling loops from dry-running, cavitation and irreversible corrosion contamination failure.
All finished units undergo mandatory hydraulic burst pressure testing, long-cycle salt spray anti-corrosion aging testing, top cover uniform compression leakage testing and hot-cold alternating temperature cycle validation before factory shipment, ensuring stable zero-leak continuous operation under purified water, glycol, weak acid/alkali and low-salinity marine fluid media worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 / 316L stainless steel precision casting, matte brushed passivated anti-corrosion finish; seamless smooth inner cavity, full chemical inertness against seawater, mild acid/alkali and organic solvents, compliant with sanitary and marine anti-corrosion standards
- Connection Standard: Butt-weld straight tube ends (match OD pipe sizes per GB/ANSI/DIN), full size range DN25~DN200 customizable
- Sight Window: Thick-wall impact-resistant borosilicate round top glass, 270° vertical downward full panoramic viewing with zero visual blind spots
- Fastening Structure: Four symmetric small cross recess stainless steel screws lock top sight cover, evenly distributed clamping force to eliminate local glass stress cracking under pipeline pressure fluctuation
- Sealing Assembly: Double-layer EPDM / FKM composite O-ring seals; EPDM for clean water/food media, FKM for chemical solvent & brine media

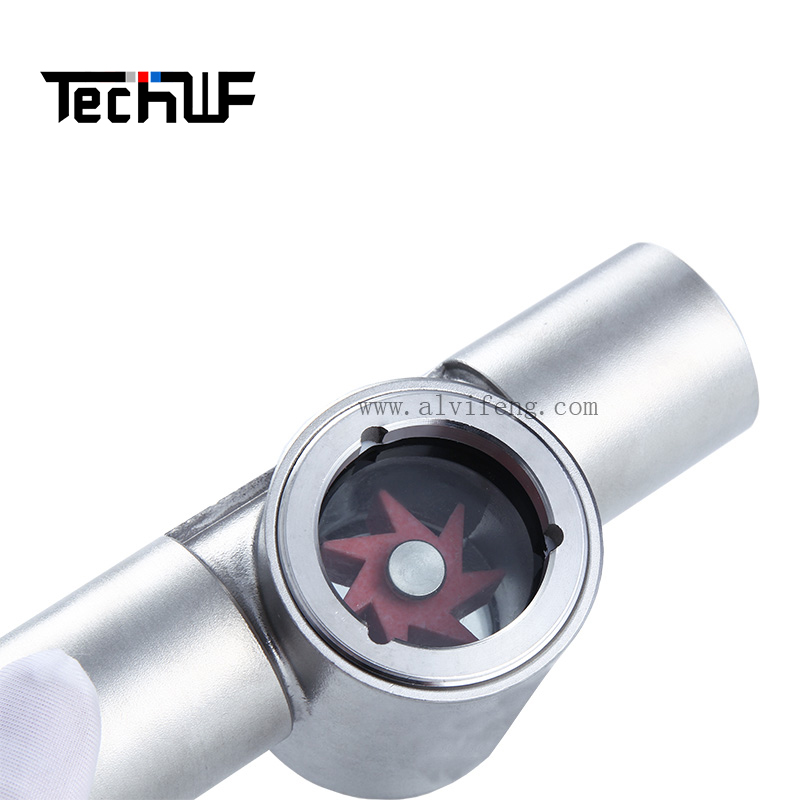

- Flow Indicator Core: Reinforced red PPS star multi-blade impeller, acid/alkali/saltwater corrosion resistant, ultra-sensitive to micro low flow for early low-flow warning
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced marine high-pressure customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, seamless smooth inner wall minimizes medium residue adhesion and sediment buildup
- Structural Feature: Integrated T-shaped cylindrical butt-weld body, vertical top observation window, quick-disassemble top cover for impeller replacement and full cavity flushing without pipeline cutting
3. Core High-End Industrial Advantages
3.1 Seamless Cast Stainless Steel Butt-Weld T-Body
Integral stainless steel precision casting eliminates casting pores and internal stagnant dead zones. Symmetrical straight butt-weld nozzles realize seamless full penetration welding with process pipelines, completely removing flange gasket leakage risks common in flanged sight glasses. Smooth seamless inner walls effectively reduce organic, crystal and fertilizer sediment adhesion; 316L upgrade delivers outstanding anti-saltwater performance for coastal and offshore welded pipeline environments.
3.2 Permanent Butt-Weld Leak-Free Connection Design
Straight butt-weld pipe ends match standard industrial tube outer diameters, supporting on-site full penetration welding for permanent installation. No loose flanges, bolts or gaskets at pipeline joints, greatly lowering long-term maintenance and leakage risks for critical continuous production lines in chemical plants, food factories and marine platforms.
3.3 Vertical Top-Down Space-Saving Panoramic Observation Window
Top-mounted round borosilicate glass provides unobstructed vertical downward full-angle observation, requiring only vertical overhead clearance instead of horizontal side space. Ideal for densely arranged welded parallel trunk pipelines, low-ceiling clean workshops and compact marine engine room welded piping racks where side-view fittings are blocked by surrounding structures.
3.4 Zero Pressure Loss Full-Bore Unrestricted Flow Path
No internal protruding throttle structures generate additional pressure loss; the original pipeline design flow capacity is fully retained, perfectly matching low-loss flow control requirements of factory central cooling welded mains, pharmaceutical reagent delivery welded trunk lines and offshore desalination circulation welded systems.
3.5 Chemical-Inert High-Visibility Red PPS Star Impeller Indicator
Custom molded PPS star impeller maintains stable rotation performance under long-term contact with acid, alkali and brine. Bright red color creates sharp visual contrast against transparent and turbid fluids, rapidly alerting operators of low flow, pipeline dry-up and reverse medium flow to avoid unplanned corrosive medium leakage and costly pump/reactor breakdown losses.
3.6 Dual Redundant Anti-Aging Composite Sealing System
Dual independent elastic sealing rings provide double leak-proof protection. FKM fluororubber seal option offers excellent resistance to chemical solvents, salt spray and extreme temperature shifts, sustaining reliable zero-leak performance during year-round non-stop full-load operation in chemical plants and high-salinity offshore welded piping networks.
3. Compact Integrated Butt-Weld Cylindrical Layout
One-piece T-type butt-weld cylinder structure reduces overall installation length compared to split pull-rod flanged sight glasses, saving horizontal linear layout space for densely welded parallel main pipelines in chemical workshops and marine engine rooms.
3.8 Quick-Disassemble Low-Maintenance Top Cover
Four small cross recess screws enable fast opening of the top observation window without detaching the entire welded fitting from the pipeline. Maintenance staff can fully extract the impeller and thoroughly flush accumulated chemical crystals, fertilizer scale and sludge, solving the difficult cleaning pain point of integrated sight glasses for viscous sanitary and corrosive welded process pipelines.
4. Global Cross-Industry Application Scenarios
Heavy Industrial & Sanitary Food & Beverage Manufacturing
Factory central circulating cooling water welded main pipelines, boiler large auxiliary welded branch piping, central HVAC chilled & hot water welded trunk lines, dairy, juice and drinking water sanitary welded delivery lines; seamless butt-weld structure eliminates flange leakage risks, smooth inner wall avoids bacterial residue breeding, top quick-disassemble design facilitates regular online CIP cleaning of organic deposits.
Pharmaceutical & Fine Corrosive Chemical Engineering
Purified water circulation welded trunk pipelines, low-concentration pharmaceutical solvent conveyance welded tubing, electroplating bath circulation welded lines; full stainless steel inert wetted surface avoids metal ion contamination of high-purity chemical and medical products, permanent welded joints suit continuous 24-hour production process lines with zero downtime leakage risk.
Large-Scale Precision Agriculture
Regional farm welded trunk water supply pipelines, greenhouse main acidic/alkaline nutrient solution circulation welded lines, centralized large-scale drip irrigation inspection welded mains; anti-corrosion stainless steel resists long-term erosion of agricultural chemical media, convenient top disassembly to clear fertilizer sediment guarantees uniform field irrigation distribution and prevents crop yield loss.
Offshore & Marine Anti-Corrosion Welded Engineering
Ship engine room straight welded main cooling circulation piping, offshore platform desalination auxiliary welded trunk lines, marine aquaculture high-salinity brine recirculation welded pipelines; 316L stainless steel variant withstands ocean salt fog and seawater corrosion, permanent butt-weld installation meets marine pipeline long-service-life standards without periodic flange gasket replacement.
Supplementary Application Fields
Industrial large pure water treatment welded main equipment, commercial large solar thermal circulation welded trunk pipelines, fire protection straight welded main water supply lines, food-grade clean fluid transfer welded trunk pipelines.
5. Customized Engineering Support Service
- Material Customization: Standard 304 stainless steel, upgrade to 316 / 316L marine high anti-corrosion sanitary grade
- Butt-Weld Pipe Customization: Custom tube outer diameter & wall thickness per GB, ANSI, DIN standards
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: Food-grade EPDM for water/food media, FKM fluororubber upgrade for acid, alkali and solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on cylindrical body, anti-collision neutral export wooden case packaging; complete anti-corrosion material test certificates and pressure inspection reports provided for tender documentation
- Caliber Customization: DN25, DN40, DN50, DN65, DN80, DN100 up to DN200 non-standard welded pipe sizes
6. Factory Premium Quality Control Standards
All WF-YL61 series butt-weld stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, top cover uniform compression sealing leakage testing, salt spray long-cycle corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete stainless steel material certification, sanitary surface inspection reports and full pressure vessel test report packages can be supplied to support global food/pharma welded pipeline engineering tender reviews, offshore marine platform welded equipment audits and sanitary plant safety compliance assessments.
Global Business Cooperation Contact
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
