Model No.: WF-YL11-21H
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Chemical Process Engineering | Precision Agriculture | Offshore & Marine Engineering
1. Product Overview
WF-YL11-21H vertical straight barrel side-view flow sight indicator is a premium precision stainless steel inline fluid monitoring fitting independently developed by TechWF, engineered for multi-angle visual flow inspection under high-temperature, high-salinity and mildly corrosive piping conditions across industrial, chemical laboratory, precision agricultural and offshore marine global projects.

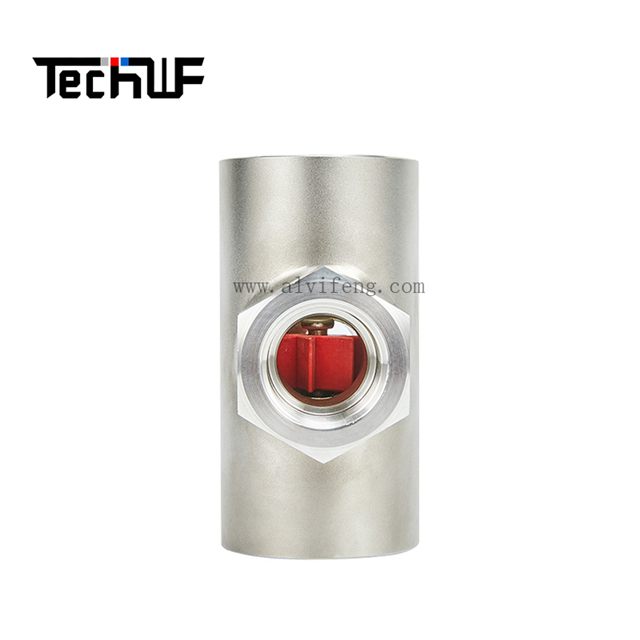

This sight glass adopts one-piece CNC precision machined vertical straight barrel stainless steel body, symmetrical dual female internal thread inlet/outlet ports, a lateral embedded thick borosilicate side observation window and corrosion-resistant red swing paddle flow indicator. Its side-view transparent window design allows operators to observe fluid status from horizontal direction without vertical space occupation, delivering real-time monitoring of flow speed, pipeline blockage, medium cut-off and reverse flow. It effectively protects miniature circulation pumps, lab chemical reactors, hydroponic irrigation equipment and compact offshore seawater circulation skids from dry running, cavitation and permanent mechanical breakdown.
Every finished unit undergoes full hydraulic burst pressure testing, salt spray corrosion aging testing, multi-layer sealing leakage testing and hot-cold alternating cycle validation before factory delivery, ensuring stable long-cycle continuous operation under seawater, weak acid/alkali and high-temperature micro fluid media worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 stainless steel integrated CNC machining, matte brushed anti-corrosion finish; anti-rust, anti-scaling, seawater & mild chemical resistant, compliant with sanitary instrument standards
- Connection Standard: BSP / NPT female internal thread, full size range DN15–DN50 customizable

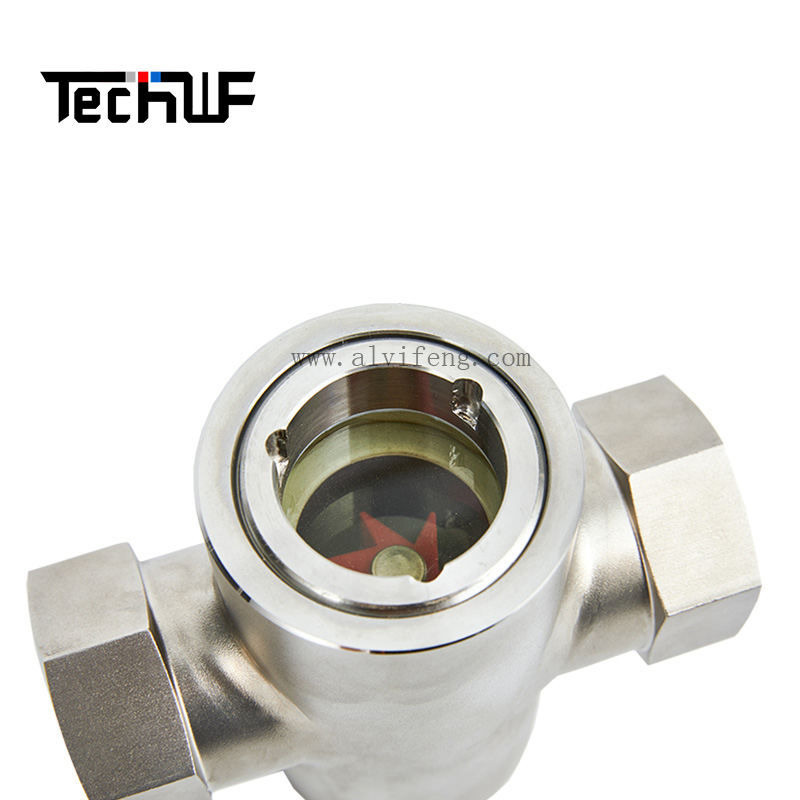

- Sight Window: Lateral embedded thick-wall high-pressure borosilicate glass, horizontal side full-angle observation without vertical space limitation
- Sealing Assembly: Double-layer FKM fluorine rubber composite sealing gaskets, resistant to acid, alkali, brine, industrial oils and lab chemical solvents
- Flow Indicator Core: Reinforced red swing paddle with metal positioning bracket, sensitive to micro low flow and capable of bidirectional flow identification
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced high-pressure marine customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, no internal flow obstruction

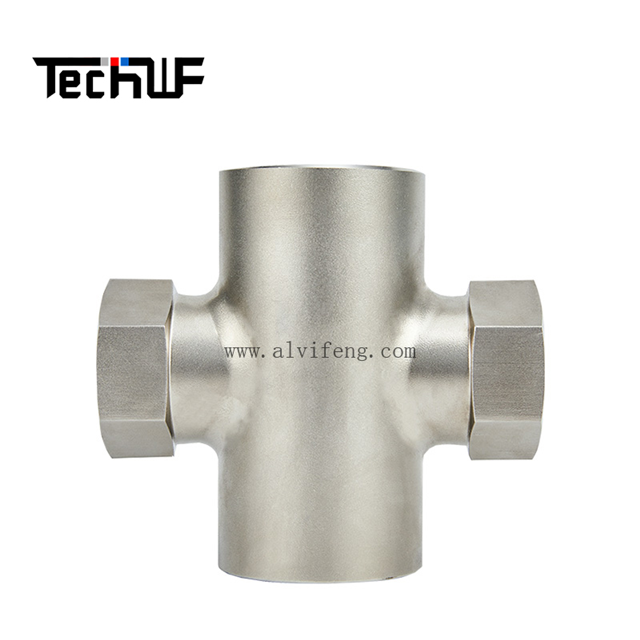

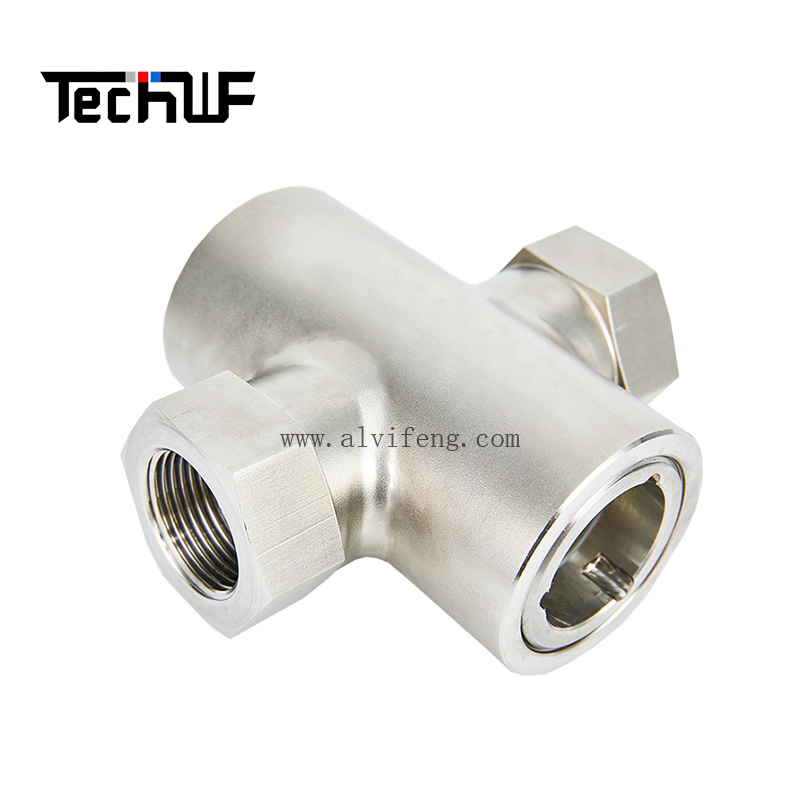

- Structural Feature: Slender vertical straight barrel shape with dual symmetrical female thread ends, side-mounted observation window for horizontal viewing, easy disassembly for internal cleaning
3. Core High-End Industrial Advantages
3.1 CNC Integrated Straight Barrel Stainless Steel Body
Full CNC one-piece machining eliminates casting pores and internal dead zones, delivering outstanding pressure resistance and structural rigidity. Smooth inner wall avoids medium adhesion and sediment accumulation, ideal for long-term operation in chemical, food and offshore seawater piping systems.
3.2 Symmetrical Dual Female Internal Thread Universal Connection
Balanced double female thread terminals match all standard male threaded pipe fittings, no conversion adapters required. Bidirectional mounting design simplifies pipeline layout and drastically shortens on-site installation time for skid-mounted and cabinet-type equipment.
3.3 Unique Side Embedded Horizontal Observation Window
Lateral side-view glass solves vertical height limitation issues of top-view sight glasses. Operators can clearly observe paddle swing, fluid bubbles and suspended impurities from horizontal level, perfect for low-ceiling, narrow cabinet and compact offshore machinery installation environments.
3.4 Zero Pressure Loss Full Straight Through Flow Path
No internal protruding throttle structures to generate additional pressure loss; original pipeline flow capacity is fully retained, perfectly matching low-loss precision flow control demands of fine chemical labs, industrial precision cooling and marine compact circulation systems.
3.5 Bidirectional Sensitive Swing Paddle Indicator
Custom red swing paddle swings forward and backward to distinguish forward flow, backflow and zero-flow state, accurately alerting operators to pipeline dry-up, medium reverse backflow and insufficient flow risks to avoid unplanned experiment/production shutdown and costly precision equipment damage.
3.6 Dual Heavy-Duty FKM Fluororubber Sealing System
Two independent fluororubber gaskets form double anti-leakage protection, resisting chemical erosion, salt spray aging and extreme temperature fluctuations, maintaining zero leakage under long-term full-load continuous operation in chemical labs and offshore high-salt corrosive environments.
3.7 Slim Vertical Space-Saving Layout
Slender straight vertical barrel occupies minimal horizontal width, specially designed for narrow instrument cabinets, greenhouse compact hydroponic piping and confined offshore equipment assembly layouts.
3.8 Detachable Low-Maintenance Industrial Construction
All housing, side glass and internal paddle assemblies can be fully disassembled for internal dirt cleaning and worn part replacement; no fragile consumable parts, only regular simple wiping of side glass surface required, drastically cutting long-term operation and maintenance expenditure for precision engineering and laboratory projects.
4. Global Cross-Industry Application Scenarios
Heavy Industrial Precision Instrument Manufacturing
Skid-mounted cooling oil micro instrument tubing, boiler sensor auxiliary pipelines, central HVAC precision monitoring loops, machine tool miniature hydraulic oil circuits; precisely monitor micro circulation flow and prevent micro pump dry-grinding & precision sensor cavitation breakdown.
Chemical Laboratory & Fine Process Engineering
Micro conveyance pipelines for weak acid, weak alkali and lab chemical solvents, small-volume chemical intermediate circulation lines; side horizontal observation facilitates flow inspection under low cabinet height, eliminates micro pipeline blockage and reagent cut-off experiment halts.
Modern Precision Hydroponic Agriculture
Greenhouse micro nutrient solution circulation tubing, precision drip irrigation monitoring loops, hydroponic farm small-bore water supply pipelines; compact vertical structure fits narrow irrigation equipment cabinets, guarantees uniform micro irrigation distribution and avoids crop nutrient drought yield losses.
Offshore & Marine Compact Instrument Engineering
Ship cabin miniature cooling circulation tubing, offshore platform lab fresh & seawater instrument auxiliary lines, marine aquaculture micro water recirculation skid modules; stainless steel anti-salt corrosion construction adapts to coastal and open-ocean high-salt humid compact equipment environments with limited vertical space.
Supplementary Application Fields
Lab pure water purification equipment, miniature solar thermal circulation tubing, fire protection micro monitoring branch lines, sanitary food-grade small-bore fluid transfer instrument pipelines.
5. Customized Engineering Support Service
- Material Customization: 304 stainless steel, 316 stainless steel, 316L marine anti-corrosion premium grade
- Thread Customization: BSP, NPT, G, Rc and non-standard special internal thread sizes
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: EPDM for clean water media, FKM fluororubber for chemical lab oil & solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on barrel housing, neutral export carton/wooden case packaging; third-party official test reports provided for tender & lab audit documentation
- Caliber Customization: DN15, DN20, DN25, DN32, DN40, DN50 and special non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL11 series stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, dual-sealing leakage testing, salt spray corrosion aging testing, paddle low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete material certification and full test report packages can be supplied to support global engineering tender reviews, offshore marine instrument project audits and chemical laboratory safety compliance assessments.
