Model No.: WF-YL41-077S
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Sanitary & Fine Chemical Engineering | Precision Agriculture | Offshore & Marine Anti-Corrosion Systems
1. Product Overview

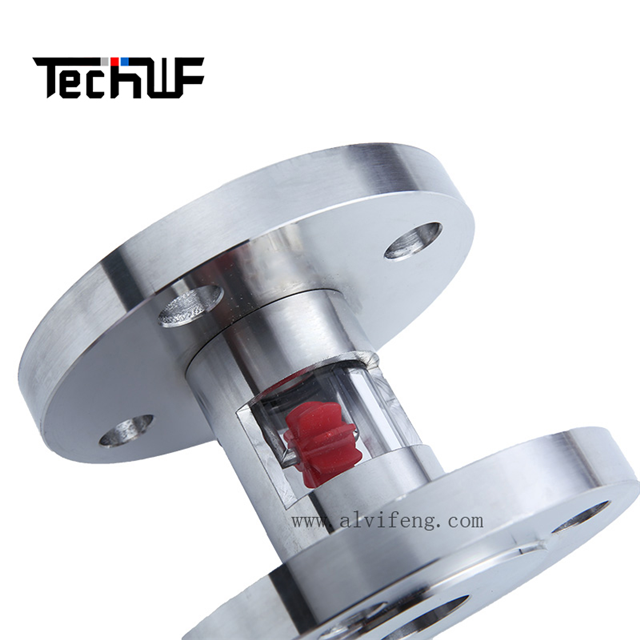

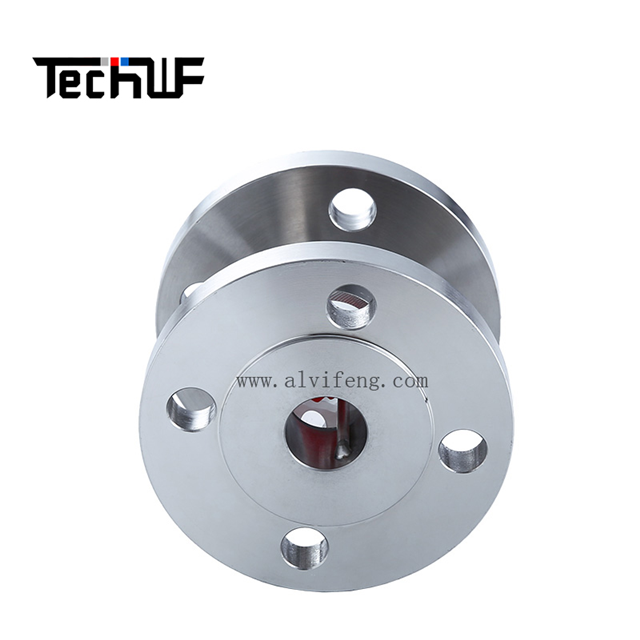

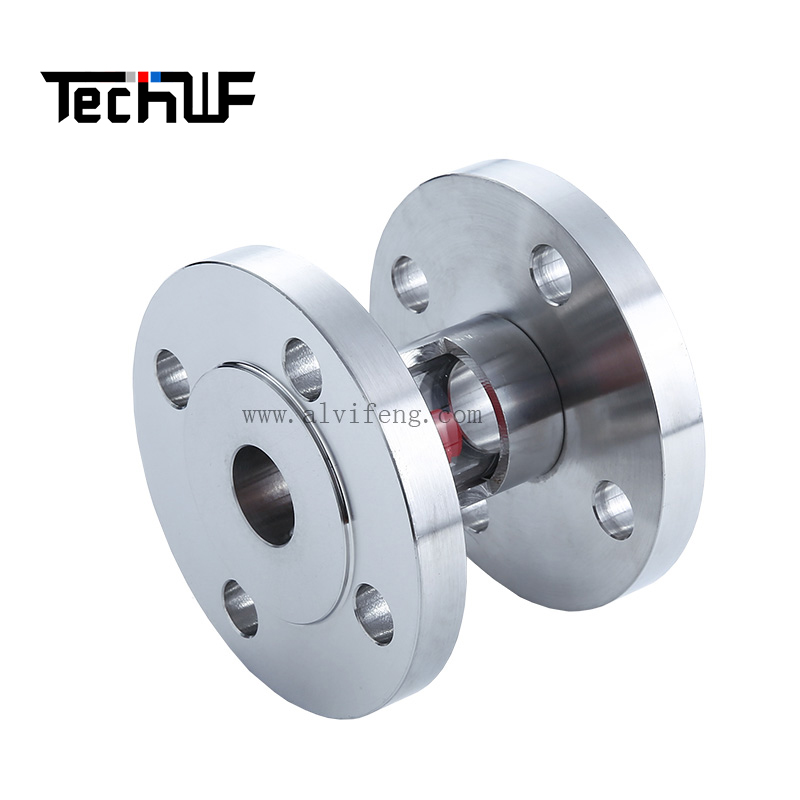

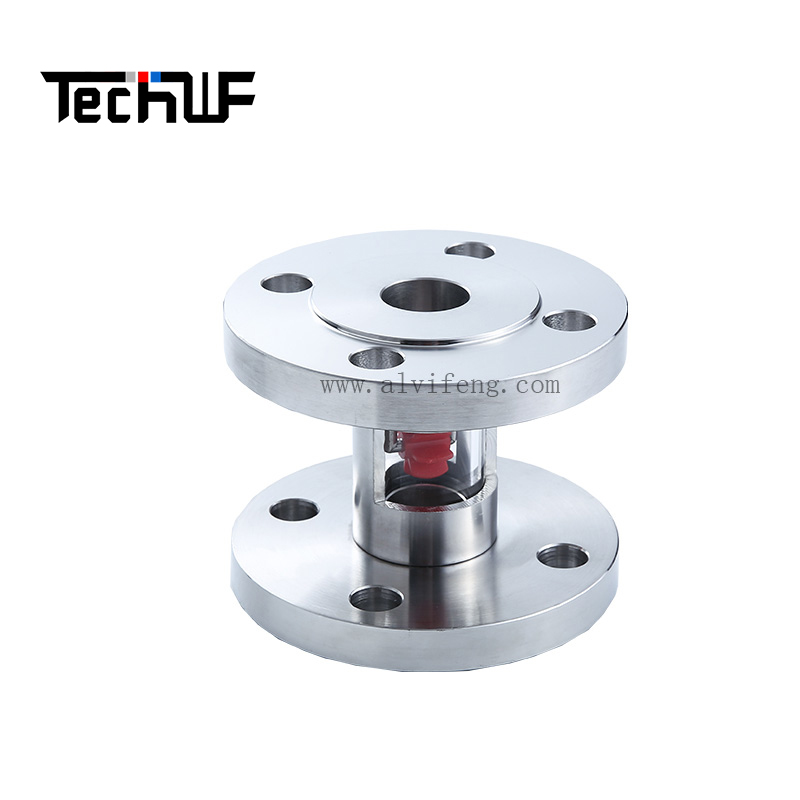

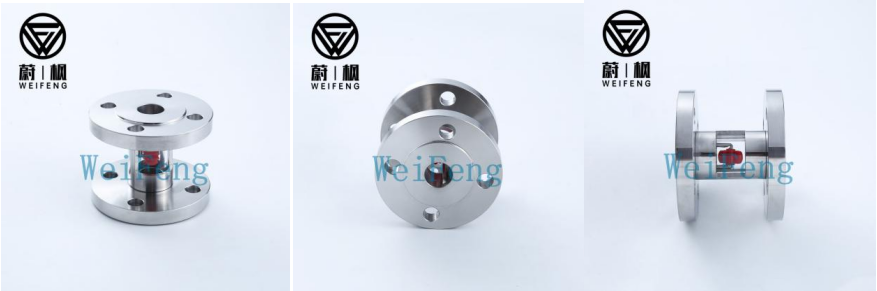

WF-YL41-077S flanged straight tubular flow sight indicator is a premium full-bore inline visual fluid monitor independently developed by TechWF, engineered for straight horizontal/vertical main pipelines requiring full-flow real-time observation, perfectly suited for sanitary, mildly corrosive, high-temperature and high-salinity fluid systems across industrial cooling, pharmaceutical processing, large-scale precision agriculture and offshore marine circulation projects.
This sight glass adopts fully CNC mirror-polished 304/316 stainless steel straight tubular split body with dual standard flange ends, transparent full-length borosilicate observation tube and high-visibility red anti-corrosion spiral impeller. Symmetrical double flange layout enables seamless butt joint with standard industrial pipeline flanges without transition adapters; the straight through tubular design delivers 360° panoramic horizontal viewing of fluid state, while the split pull-rod fastening structure allows full disassembly without pipeline cutting for deep sludge, crystal and residue cleaning. It provides instant visual feedback of flow velocity, pipeline dry-up, clogging and reverse flow, fully safeguarding large circulation pumps, sanitary reactors, agricultural trunk irrigation equipment and shipboard seawater cooling loops from dry-running, cavitation and permanent mechanical corrosion failure.
Every finished unit undergoes mandatory hydraulic burst pressure testing, salt spray anti-corrosion aging testing, dual-flange uniform compression leakage testing and hot-cold alternating cycle validation before factory shipment, delivering stable zero-leak continuous operation under purified water, light glycol, weak acid/alkali and low-salinity marine fluid media worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 / 316L stainless steel full CNC machining, mirror polished inner & outer surface (Ra ≤ 0.8μm), anti-rust, anti-adhesion, food & marine sanitary compliant
- Connection Standard: GB / ANSI / DIN standard dual flanged ends, full size range DN25–DN200 fully customizable
- Sight Window: Thick-wall impact-resistant straight borosilicate tube, 360° horizontal full panoramic viewing with zero visual blind spots
- Fastening Structure: Symmetric thick stainless steel pull rods + double flange clamping plates, evenly distributed clamping force to eliminate local glass stress cracking under pipeline pressure fluctuation
- Sealing Assembly: Double-layer EPDM / FKM composite O-ring gaskets; EPDM for clean water/food media, FKM for chemical solvent & brine media
- Flow Indicator Core: Reinforced red spiral impeller, chemical & saltwater corrosion resistant, ultra-sensitive to micro low flow for early low-flow warning
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced marine high-pressure customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, smooth polished inner wall prevents medium residue adhesion and sediment buildup
- Structural Feature: Slim straight tubular split flange layout, fully disassemblable pull-rod construction for impeller replacement and full cavity flushing without removing the entire fitting from pipelines
3. Core High-End Industrial Advantages
3.1 Mirror Polished Sanitary Stainless Steel Straight Tubular Body
Integral CNC mirror polishing achieves ultra-smooth seamless inner cavity surface, effectively preventing food residues, pharmaceutical crystals and fertilizer media adhesion, compatible with CIP online cleaning processes. Full stainless steel construction delivers natural rust and scale resistance, meeting strict hygiene standards for food, pharmaceutical and offshore fresh water piping systems.
3.2 Universal Dual Standard Flange Butt Connection
Symmetrical identical flanges on both inlet and outlet support bidirectional pipeline installation and direct bolt-on assembly with all mainstream industrial pipeline flanges, eliminating extra transition adapters and on-site welding work, drastically shortening construction cycles for large-bore straight trunk pipeline projects.
3.3 360° Full Horizontal Panoramic Sight Tube
Long transparent straight borosilicate tube enables operators to observe impeller rotation speed, suspended solid impurities and air bubbles from any radial horizontal angle, ideal for long straight horizontal main pipelines where top or side viewing sight glasses are partially blocked by surrounding support frames and equipment cabinets.
3.4 Zero Pressure Loss Full-Bore Unrestricted Flow Path
No internal protruding throttle structures generate additional pressure loss; the original pipeline design flow capacity is fully retained, perfectly matching low-loss flow control requirements of factory central cooling mains, pharmaceutical reagent delivery trunk lines and offshore desalination circulation systems.
3.5 Ultra-Sensitive Red Spiral Impeller Indicator
Custom molded red spiral impeller creates stark visual contrast against both clear and turbid fluids, rapidly responding to minimal flow fluctuations to alert operators of low flow, pipeline emptying and reverse medium flow, avoiding unplanned sanitary production shutdown, agricultural irrigation failure and costly pump burnout losses.
3.6 Dual Redundant Heavy-Duty Composite Sealing System
Dual independent elastic sealing rings form double anti-leakage protection. FKM fluororubber seal option provides outstanding resistance to chemical erosion, salt spray aging and extreme temperature cycling, sustaining absolute zero-leak performance under year-round non-stop full-load operation in chemical plants and high-salt offshore environments.
3.7 Slim Straight Tubing Space-Saving Layout
Slender inline straight tubular structure only occupies linear pipeline length without expanding vertical or lateral width, perfectly suited for densely arranged parallel straight trunk pipelines in industrial equipment rooms, large greenhouse irrigation racks and compact marine engine room piping layouts.
3.8 Fully Detachable Pull-Rod Low-Maintenance Design
After loosening pull rod nuts, the entire tubular sight assembly can be fully split open without pipeline cutting. Maintenance staff can completely extract the impeller and thoroughly flush accumulated sludge, fertilizer scale and chemical crystals, solving the difficult cleaning pain point of integrated sight glasses for viscous sanitary and corrosive media.
4. Global Cross-Industry Application Scenarios
Heavy Industrial & Sanitary Food & Beverage Manufacturing
Factory central circulating cooling water main pipelines, boiler large auxiliary straight trunk piping, central HVAC chilled & hot water circulation mains, dairy, juice and drinking water sanitary delivery lines; polished smooth inner wall avoids bacterial residue breeding, split pull-rod design facilitates regular online cleaning of organic deposits.
Pharmaceutical & Fine Corrosive Chemical Engineering
Purified water circulation trunk pipelines, low-concentration pharmaceutical solvent conveyance tubing, cosmetic raw material circulation main lines; full stainless steel inert wetted surface eliminates metal ion contamination of high-purity chemical and medical products, 360° full viewing ensures stable reagent flow monitoring.
Large-Scale Precision Agriculture
Regional farm straight trunk water supply pipelines, greenhouse main acidic/alkaline nutrient solution circulation lines, centralized large-scale drip & sprinkler irrigation inspection mains; anti-corrosion stainless steel resists long-term erosion of agricultural chemical media, easy disassembly to clear fertilizer sediment guarantees uniform field irrigation distribution.
Offshore & Marine Anti-Corrosion Engineering
Ship engine room straight main cooling circulation piping, offshore platform desalination auxiliary trunk lines, marine aquaculture high-salinity brine recirculation pipelines; 316L stainless steel upgrade withstands ocean salt fog and seawater corrosion, slim inline layout fits compact straight marine piping racks.
Supplementary Application Fields
Industrial large pure water treatment main equipment, commercial large solar thermal circulation trunk pipelines, fire protection straight main water supply lines, food-grade clean fluid transfer trunk pipelines.
5. Customized Engineering Support Service
- Material Customization: Standard 304 polished stainless steel, upgrade to 316 / 316L marine high anti-corrosion sanitary grade
- Flange Standard Customization: GB, ANSI, DIN, JIS flange standards, customizable flange size, thickness and bolt hole layout
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: Food-grade EPDM for water/food media, FKM fluororubber upgrade for acid, alkali and solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on tubular body, anti-collision neutral export wooden case packaging; complete sanitary material test certificates and pressure inspection reports provided for tender documentation
- Caliber Customization: DN25, DN40, DN50, DN65, DN80, DN100 up to DN200 non-standard pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL41 series flanged stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, dual-flange pull-rod uniform compression sealing leakage testing, salt spray long-cycle corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete stainless steel surface finish inspection reports, food-grade seal certification and full pressure vessel test report packages can be supplied to support global food/pharma engineering tender reviews, offshore marine platform equipment audits and sanitary plant safety compliance assessments.
Global Business Cooperation Contact
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
