Model No.: WF-YL61-20
Brand: TechWF
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
Business Contact: WhatsApp +8618815068623
Core Application Sectors: Heavy Industry | Sanitary & Fine Chemical Engineering | Large-Scale Precision Agriculture | Offshore & Marine Anti-Corrosion Welded Pipeline Systems
1. Product Overview

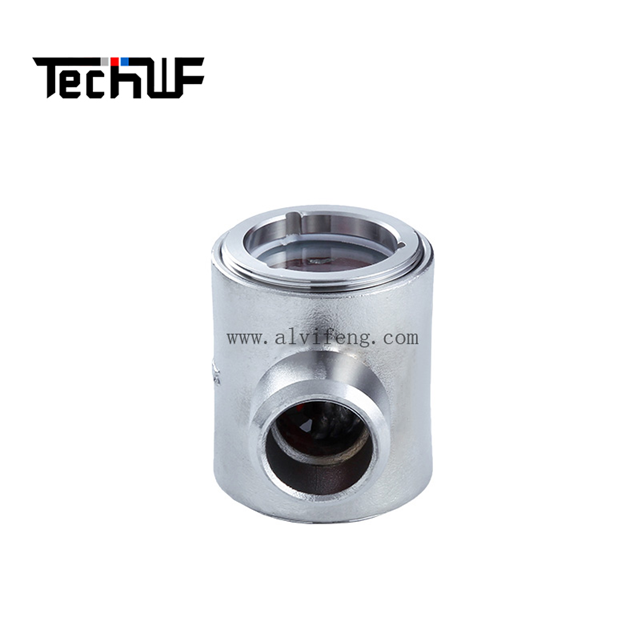

WF-YL61-20 butt-welded top-view flow sight indicator is a heavy-duty seamless welded inline visual flow monitor independently engineered by TechWF, developed for permanent welded process pipelines requiring zero external leakage, full anti-corrosion wetted surfaces and vertical top-down fluid observation. Widely deployed in food & beverage sanitary production, pharmaceutical purified water circulation, corrosive fine chemical medium delivery, large agricultural water treatment and offshore marine welded circulation pipeline projects.

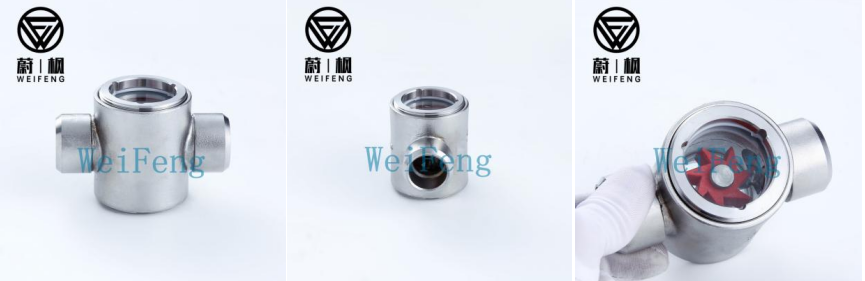

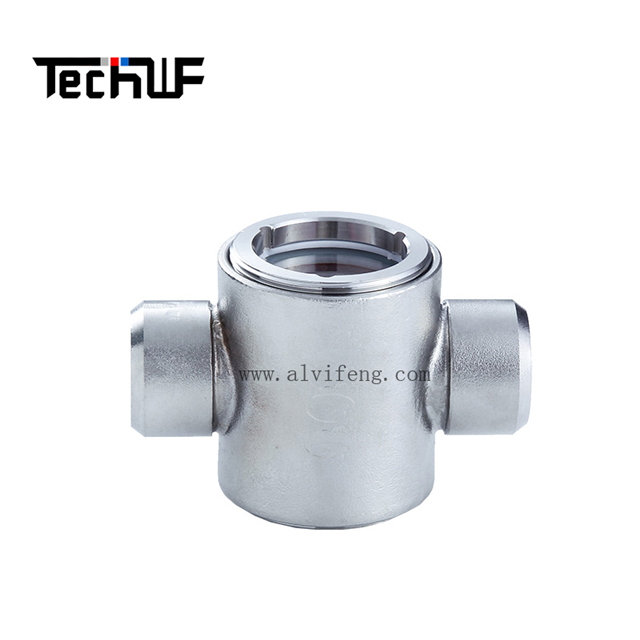

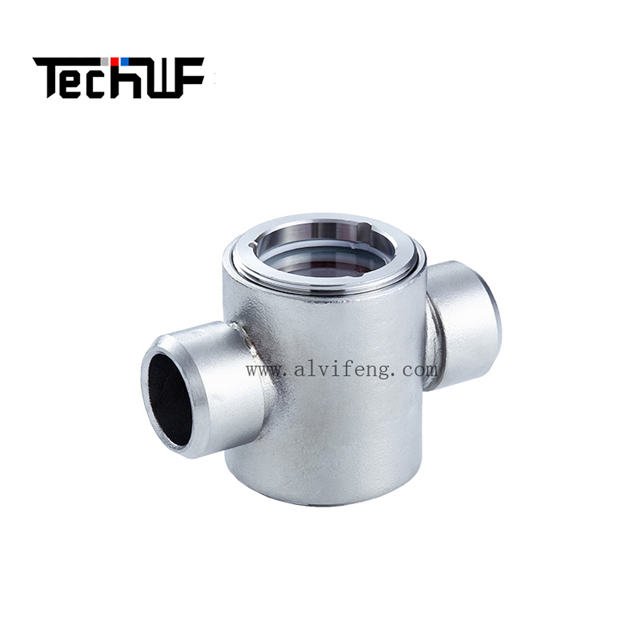

This sight glass adopts precision cast 304/316/316L stainless steel integrated T-cylinder body with symmetrical straight butt-weld pipe nozzles, top embedded large round thick borosilicate observation window and high-visibility red star corrosion-resistant PPS impeller. The full butt-weld end design supports seamless full penetration welding with matching process tubes, eliminating flange gaskets, bolts and potential external leakage points. The threaded snap-on top sight cover enables fast disassembly without detaching the whole fitting from pipelines, supporting complete extraction of the internal impeller for deep flushing of organic residues, pharmaceutical crystals and fertilizer sediment deposits. It delivers real-time vertical top-down panoramic visual monitoring of fluid flow velocity, pipeline emptying, clogging and reverse flow, fully protecting large anti-corrosion circulation pumps, sanitary reactors, agricultural trunk irrigation equipment and shipboard seawater cooling loops from dry-running, cavitation and irreversible corrosion contamination failure.
All finished units pass mandatory hydraulic burst pressure testing, long-cycle salt spray anti-corrosion aging testing, top cover uniform compression leakage testing and hot-cold alternating temperature cycle validation before factory shipment, complying with global sanitary and marine anti-salt corrosion standards and guaranteeing stable zero-leak continuous operation under purified water, glycol, weak acid/alkali and low-salinity seawater fluid media worldwide.
2. Premium Technical Specifications
- Body Material: 304 / 316 / 316L stainless steel precision casting, matte brushed passivated anti-corrosion finish; seamless smooth inner cavity, full chemical inertness against seawater, mild acid/alkali and organic solvents, food-contact sanitary compliant

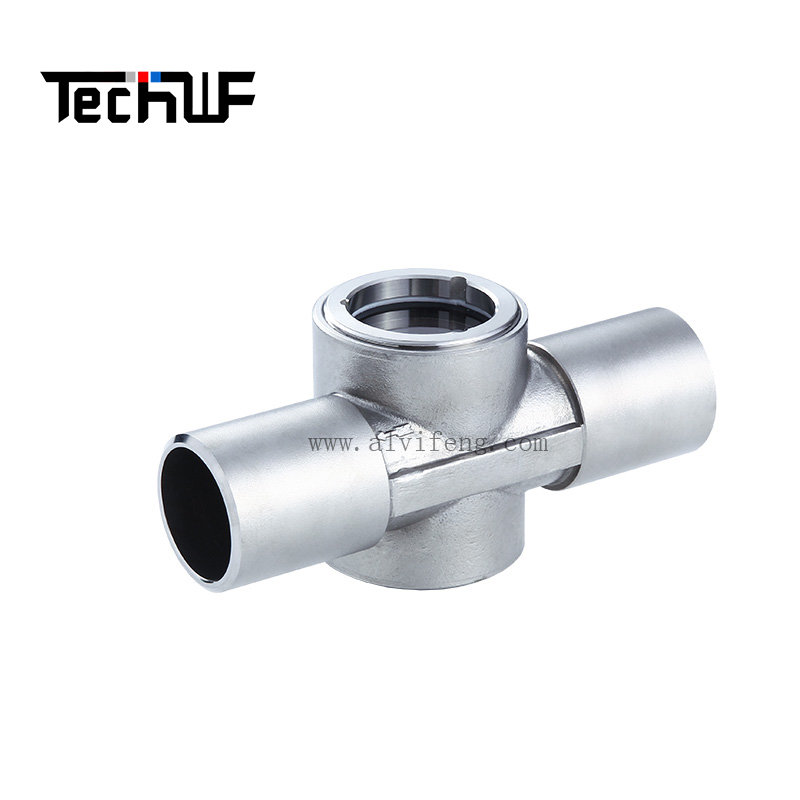

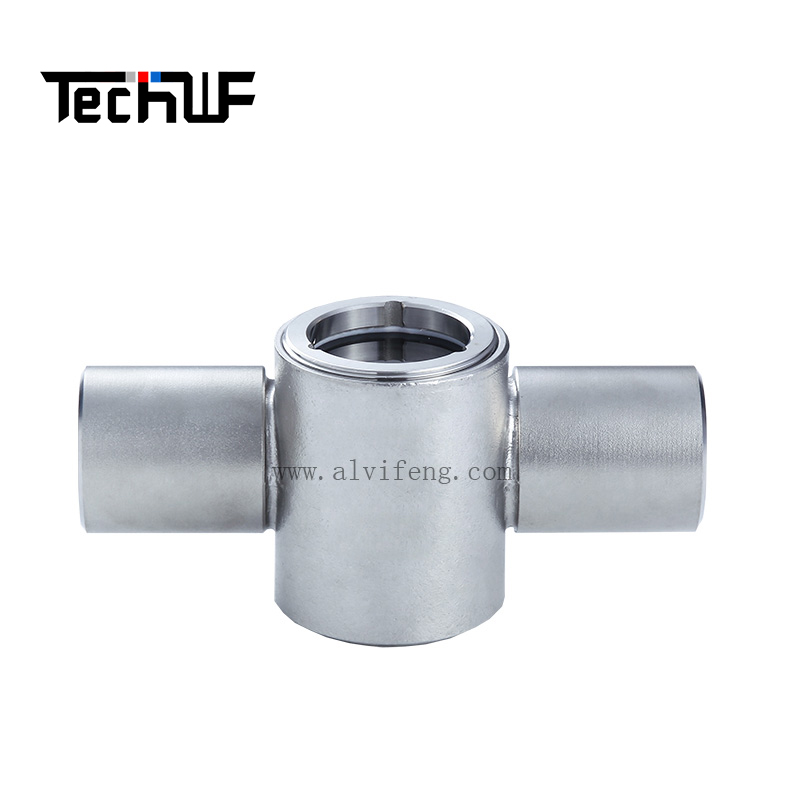

- Connection Standard: Symmetrical straight butt-weld tube ends, customizable outer diameter & wall thickness to match GB/ANSI/DIN standard pipes, full size DN25~DN200 available
- Sight Window: Thick-wall high-pressure resistant round borosilicate top glass, 270° vertical downward full panoramic viewing with zero visual blind spots
- Fastening Structure: Snap threaded locking top sight cover with single-layer compression sealing ring, balanced clamping force to eliminate local glass stress cracking under pipeline pressure fluctuation and water hammer impact
- Sealing Assembly: Single/double-layer EPDM / FKM composite O-ring seals; food-grade EPDM for clean water & edible media, chemical-resistant FKM for acid, alkali, solvent and brine media

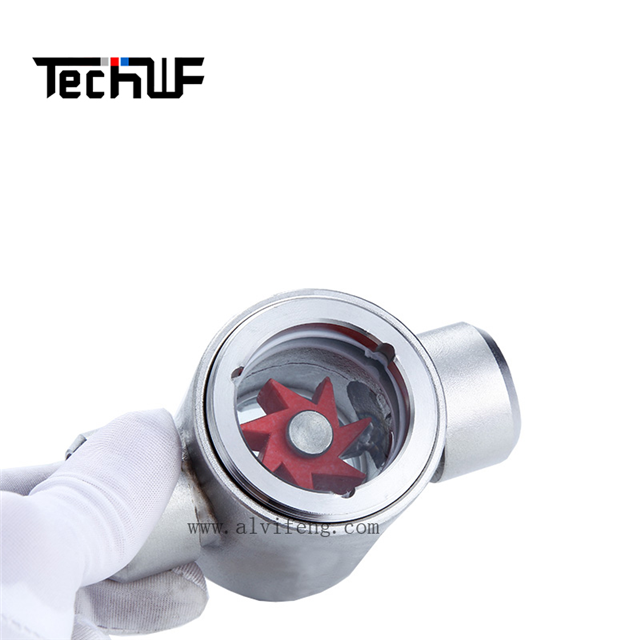

- Flow Indicator Core: Reinforced red PPS star multi-blade impeller, acid/alkali/saltwater corrosion resistant, ultra-sensitive to micro low flow for early low-flow warning
- Nominal Working Pressure: PN16 standard grade; PN25 reinforced marine high-pressure customized version available
- Operating Temperature Range: -20℃ ~ +180℃
- Flow Channel Design: Full straight-through full-bore inner cavity, zero extra pressure drop, seamless polished inner wall minimizes medium residue adhesion and sediment accumulation
- Structural Feature: Integrated thick T-shaped cylindrical butt-weld body, vertical top observation window, quick snap-thread disassembly without pipeline cutting for impeller replacement and full cavity deep cleaning & sanitization
3. Core High-End Industrial Advantages
3.1 Seamless Cast Anti-Corrosion Stainless Steel T-Cylinder Body
Integral thick-wall stainless steel precision casting eliminates casting pores and internal stagnant dead zones, delivering exceptional mechanical rigidity to resist pipeline vibration and water hammer in heavy industrial and offshore platform environments. Smooth seamless inner surface effectively prevents food residue, pharmaceutical crystal and agricultural fertilizer buildup; 316L upgraded material provides outstanding anti-ocean salt fog performance for coastal and marine welded piping systems where carbon steel rapidly oxidizes and leaks.
3.2 Permanent Butt-Weld Zero-Leakage Connection Design
Symmetrical identical straight butt-weld nozzles on both inlet and outlet support bidirectional pipeline mounting and full penetration seamless welding with process tubes, completely removing flange gaskets, loose bolts and external leakage risks common on flanged sight glasses. Permanent welded joint drastically reduces long-term maintenance costs for continuous 24-hour production lines in chemical, food and marine facilities.
3.3 Vertical Top-Down Large Panoramic Observation Window
Oversized round top borosilicate glass enables unobstructed vertical downward full-angle observation, allowing operators to clearly view impeller rotation speed, suspended solid impurities and air bubbles directly from above. Ideal for horizontal welded main pipelines densely arranged with side support frames and equipment cabinets that block lateral side-view sight glasses.
3.4 Zero Pressure Loss Full-Bore Unrestricted Flow Path
No internal protruding throttle structures generate additional pressure loss; the original pipeline design flow capacity is fully retained, perfectly matching low-loss flow control requirements of factory central cooling welded mains, pharmaceutical high-purity reagent delivery trunk lines and offshore desalination circulation welded systems.
3.5 Chemical-Inert High-Visibility Red PPS Star Impeller
Custom molded PPS star impeller maintains stable rotation performance under long-term continuous contact with acid, alkali and brine media. Bright red color creates sharp visual contrast against both transparent and turbid fluids, rapidly alerting operators of low flow, pipeline dry-up and reverse medium flow to avoid unplanned sanitary production shutdown, corrosive medium leakage and costly pump/reactor breakdown losses.
3.6 Snap Thread Quick-Disassemble Compact Sealing System
Threaded snap-on top cover enables rapid opening without multiple hex bolts, shortening maintenance downtime. Elastic composite sealing ring forms reliable leak-proof protection, resisting chemical erosion, salt spray aging and extreme temperature cycling for year-round non-stop full-load operation in chemical plants and high-salinity offshore welded piping networks.
3.7 Compact Thick Cylindrical Integrated Butt-Weld Layout
One-piece thick T-type cylinder butt-weld structure minimizes overall installation length compared with split pull-rod flanged sight glasses, saving horizontal linear layout space for parallel densely arranged welded main pipelines in industrial equipment rooms, clean workshops and compact marine engine rooms.
3.8 Low-Maintenance Sanitary Split Design
After unscrewing the threaded top cover, the entire observation glass and internal impeller can be fully lifted out without detaching the whole fitting from the welded pipeline. Maintenance staff can thoroughly flush accumulated sludge, fertilizer scale and chemical crystals, solving the difficult deep sanitization pain point of integrated sight glasses for viscous sanitary and corrosive welded process media.
4. Global Cross-Industry Application Scenarios
Heavy Industry & Sanitary Food & Beverage Manufacturing
Factory central circulating cooling water welded main pipelines, boiler large auxiliary straight welded trunk piping, central HVAC chilled & hot water circulation welded mains, dairy, juice, beer and purified drinking water sanitary welded delivery lines; seamless anti-rust stainless steel meets global food contact hygiene standards, top vertical viewing fits crowded horizontal welded production pipeline racks blocked by side equipment.
Pharmaceutical & Fine Corrosive Chemical Engineering
Purified water for injection circulation welded trunk pipelines, low-concentration pharmaceutical solvent conveyance welded tubing, electroplating bath and lithium battery electrolyte circulation welded lines; full stainless steel inert wetted surface eliminates metal ion contamination of high-purity chemical and medical products, permanent butt-weld joints avoid frequent gasket replacement in continuous production workshops.
Large-Scale Precision Agriculture
Regional farm straight welded trunk water supply pipelines, greenhouse main acidic/alkaline nutrient solution circulation welded lines, centralized large-scale drip & sprinkler irrigation inspection welded mains; anti-corrosion stainless steel resists long-term erosion of acidic and alkaline agricultural chemical media, convenient top disassembly to clear fertilizer sediment guarantees uniform field irrigation distribution and prevents crop yield loss.
Offshore & Marine Anti-Corrosion Welded Engineering
Ship engine room straight main cooling circulation welded piping, offshore platform desalination auxiliary welded trunk lines, marine aquaculture high-salinity brine recirculation welded pipelines; 316L stainless steel variant withstands ocean salt fog and seawater splash corrosion, compact T-cylinder layout adapts to space-limited marine engine room welded piping racks.
Supplementary Application Fields
Industrial large pure water treatment welded main equipment, commercial large solar thermal circulation welded trunk pipelines, fire protection straight main clean water supply welded lines, food-grade low-viscosity fluid transfer welded trunk pipelines.
5. Customized Engineering Support Service
- Material Customization: Standard 304 stainless steel, upgrade to 316 / 316L marine high anti-corrosion sanitary grade
- Butt-Weld Tube Customization: Custom tube outer diameter, wall thickness per GB, ANSI, DIN industrial pipe standards
- Pressure Grade Customization: Standard PN16, PN25 reinforced marine high-pressure variant, PN40 ultra-high pressure bespoke model
- Sealing Material Matching: Food-grade EPDM for water & edible media, FKM fluororubber upgrade for acid, alkali and organic solvent transportation
- Brand & Packaging Customization: Laser engraved customer LOGO on cylindrical body, anti-collision neutral export wooden case packaging; complete food-contact sanitary test certificates and pressure vessel inspection reports provided for tender documentation
- Caliber Customization: DN25, DN40, DN50, DN65, DN80, DN100 up to DN200 non-standard welded pipe diameters
6. Factory Premium Quality Control Standards
All WF-YL61 series butt-weld stainless steel flow sight indicators implement mandatory 100% full inspection prior to shipment. Standard factory testing scope includes hydraulic burst pressure testing, top cover threaded compression sealing leakage testing, salt spray long-cycle corrosion aging testing, impeller low-flow sensitivity testing and high-low temperature alternating cycle validation.
Complete stainless steel material certification, food-grade sanitary inspection reports and full pressure test report packages can be supplied to support global food/pharma welded pipeline engineering tender reviews, offshore marine platform welded equipment audits and sanitary workshop safety compliance assessments.
Global Business Cooperation Contact
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Official Website: www.alvifeng.com
